Label Flexo Printing Laminating Rotary Die Cutting Slitting Rewinding Finishing Machine

Brand Name : DABA

Model Number : DBGS-320

Max. Web Width : 370mm (14.56")

Max. Unwind Diameter : 800mm (31.5")

Max. Rewind Diameter : 800mm (31.5")

Max. Flexo Printing Width : 350mm (13.77”)

Max. Die Cutting Width : 350mm (13.77")

Full Rotary Max. Mechanical Speed : 120m/min

Max. Flexo Printing Speed : 60m/min

Optional Printing Cylinder : 80T-210T

Standard Printing Cylinder : 140T

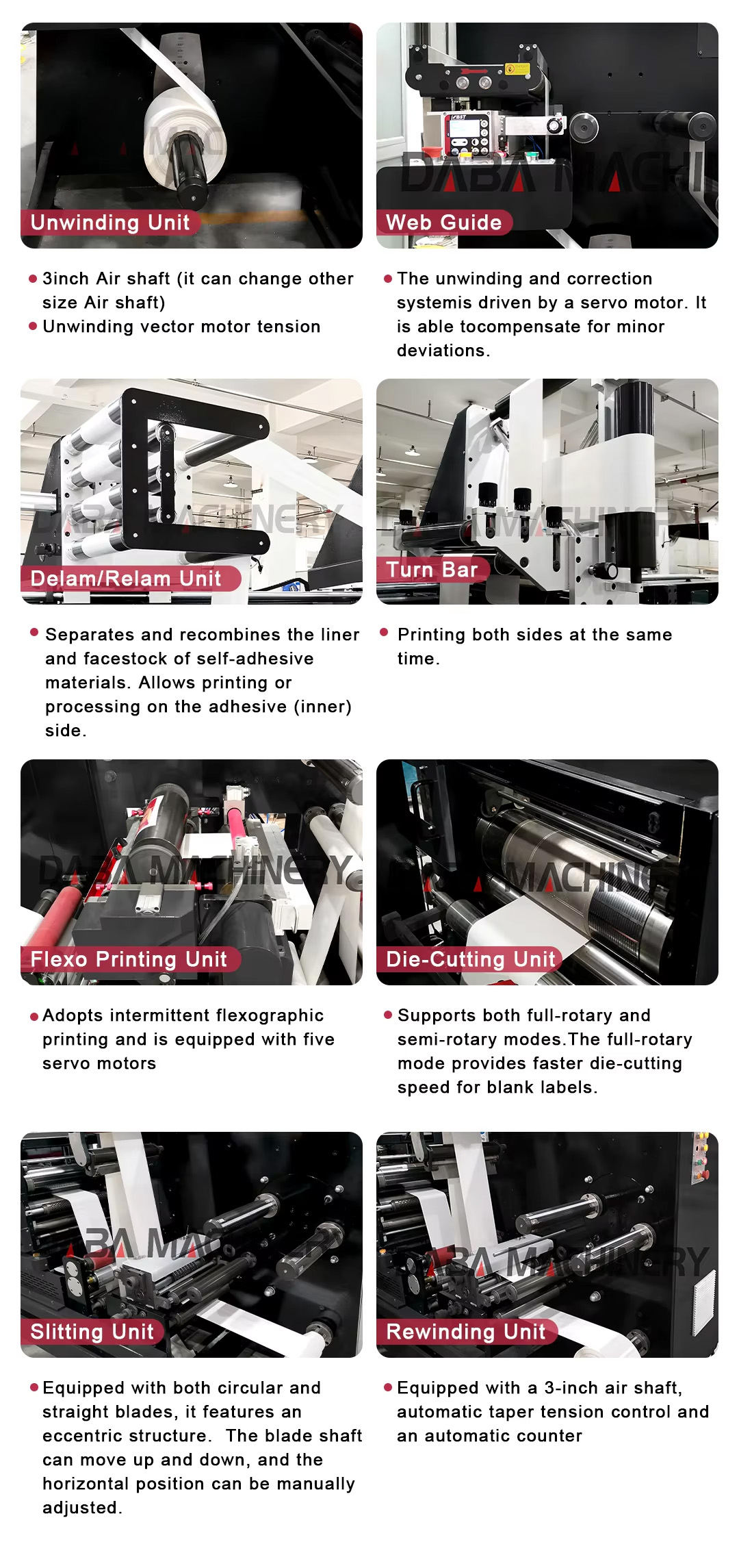

Main Features

The machine can increase inspecting system, cross-cut, IML die-cutting, turret rewinder, etc. according to customer exact requirement.

using the advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency.

With the latest full-rotary and intermittent interchangeable technology; suitable for digital printing label short and

medium-length orders after die cutting machine.

Machine Parameter
Max. Web Width	370mm (14.56")
Max. Unwind Diameter	800mm (31.5")
Max. Rewind Diameter	800mm (31.5")
Max. Flexo Printing Width	350mm (13.77”)
Max. Die Cutting Width	350mm (13.77")
Full Rotary Max. Mechanical Speed	120m/min
Max. Flexo Printing Speed	60m/min
Optional Printing Cylinder	80T-210T
Standard Printing Cylinder	140T
Adhesive Die Cutting Precision Accuracy (cut 1st layer)	±0.15mm
Die-cutting Precision Accuracy (cut totally)	±0.25mm
Die-cutting Positioning Method	Color sensor
Optional Magnetic Cylinder	80T ~ 210T
Standard Magnetic Cylinder	140T
Power Consumption	19 ~ 21KW
Air Supply (bar)	0.6 kpa
Rating Voltage	380V 50Hz
Roting Current	50A
Machine Weight	About 3200Kgs

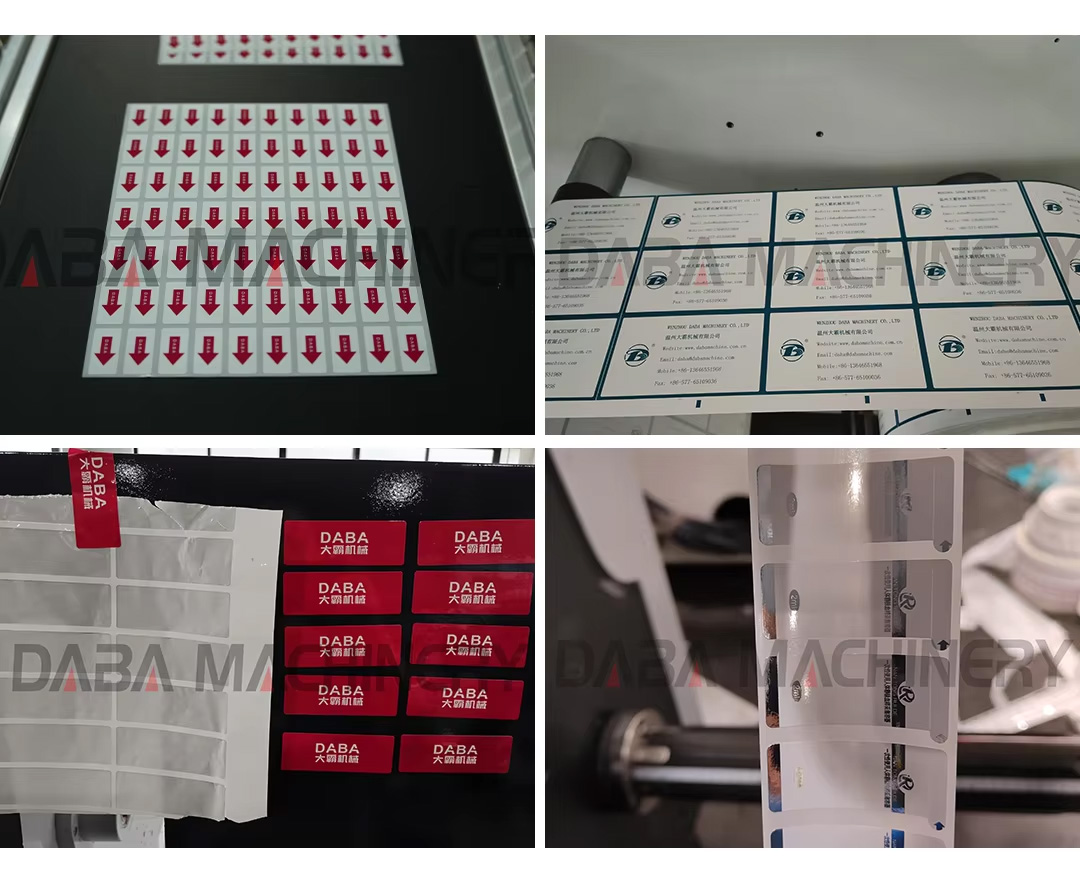

SAMPLE DISPLAY

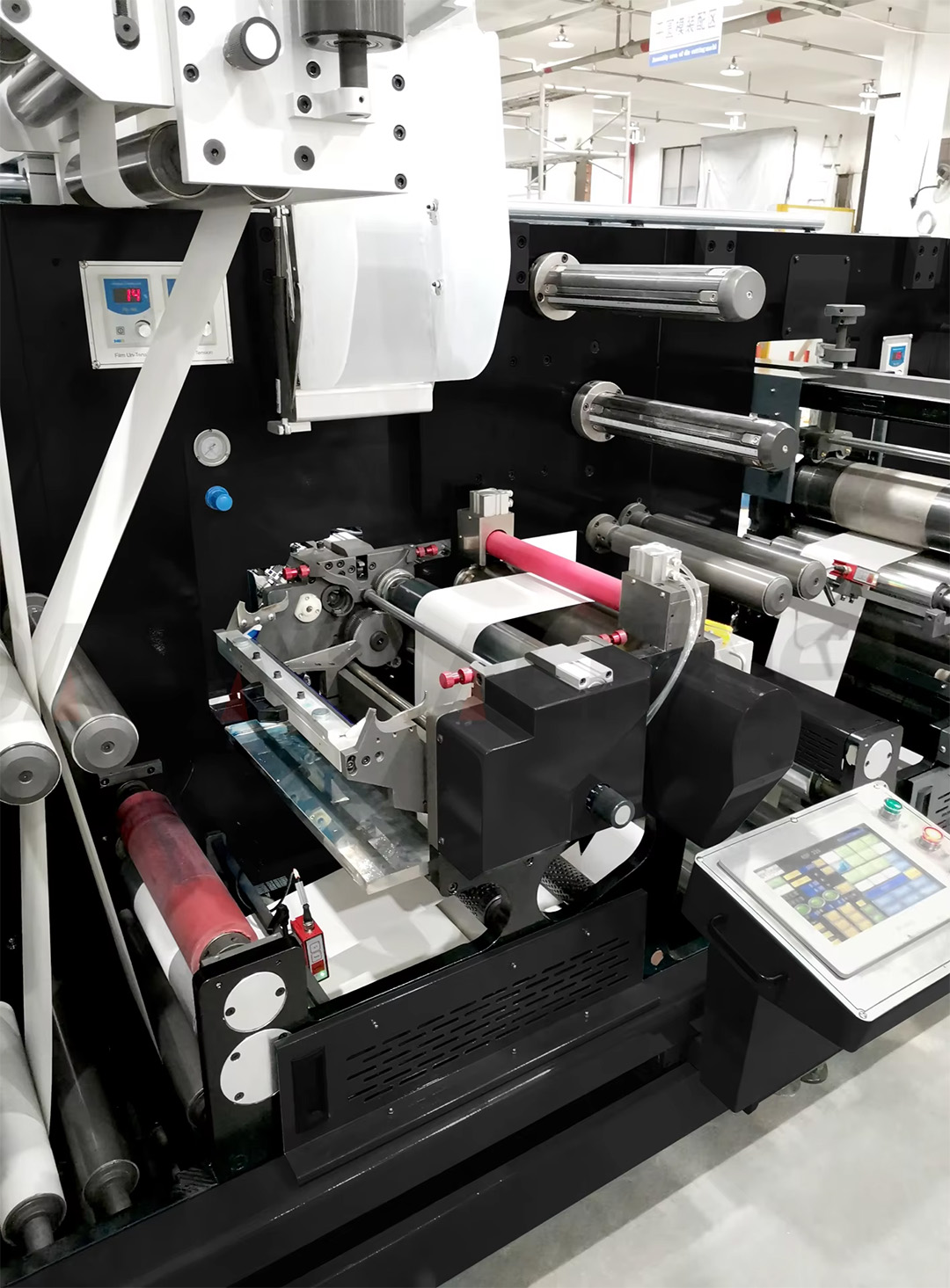

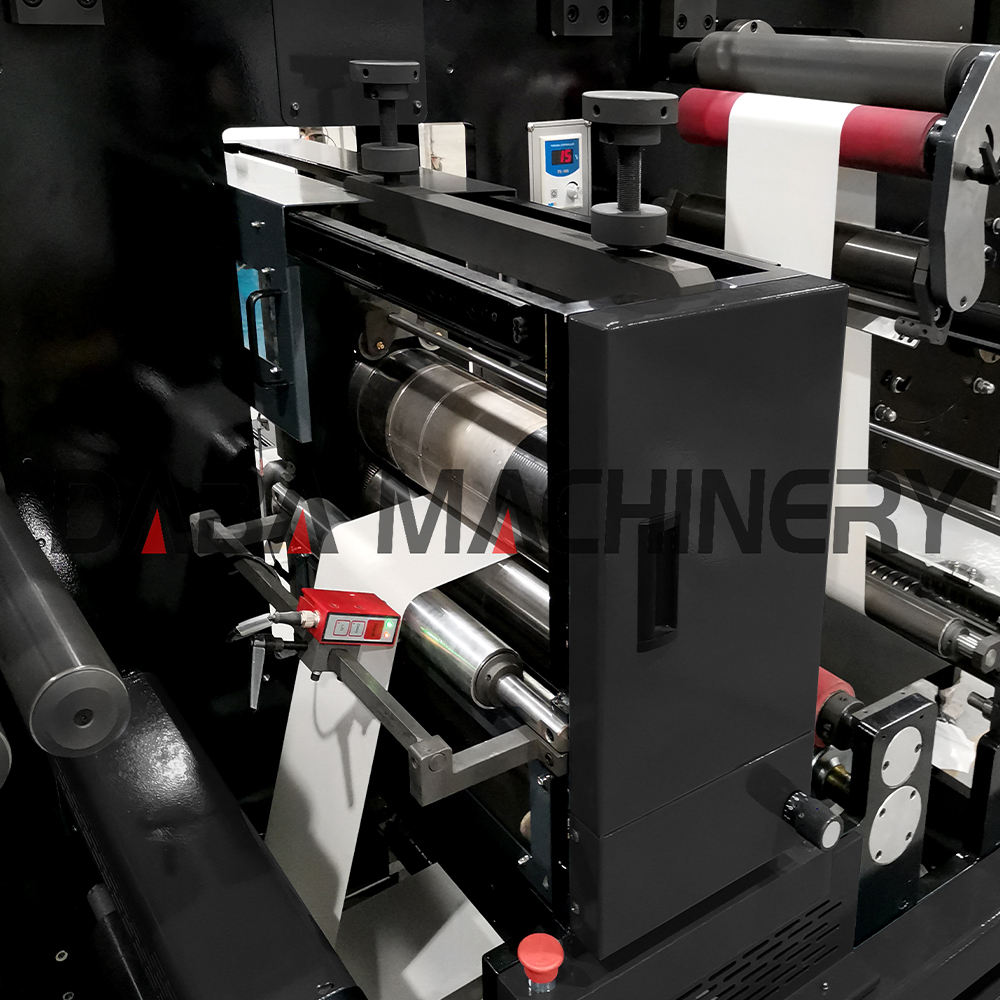

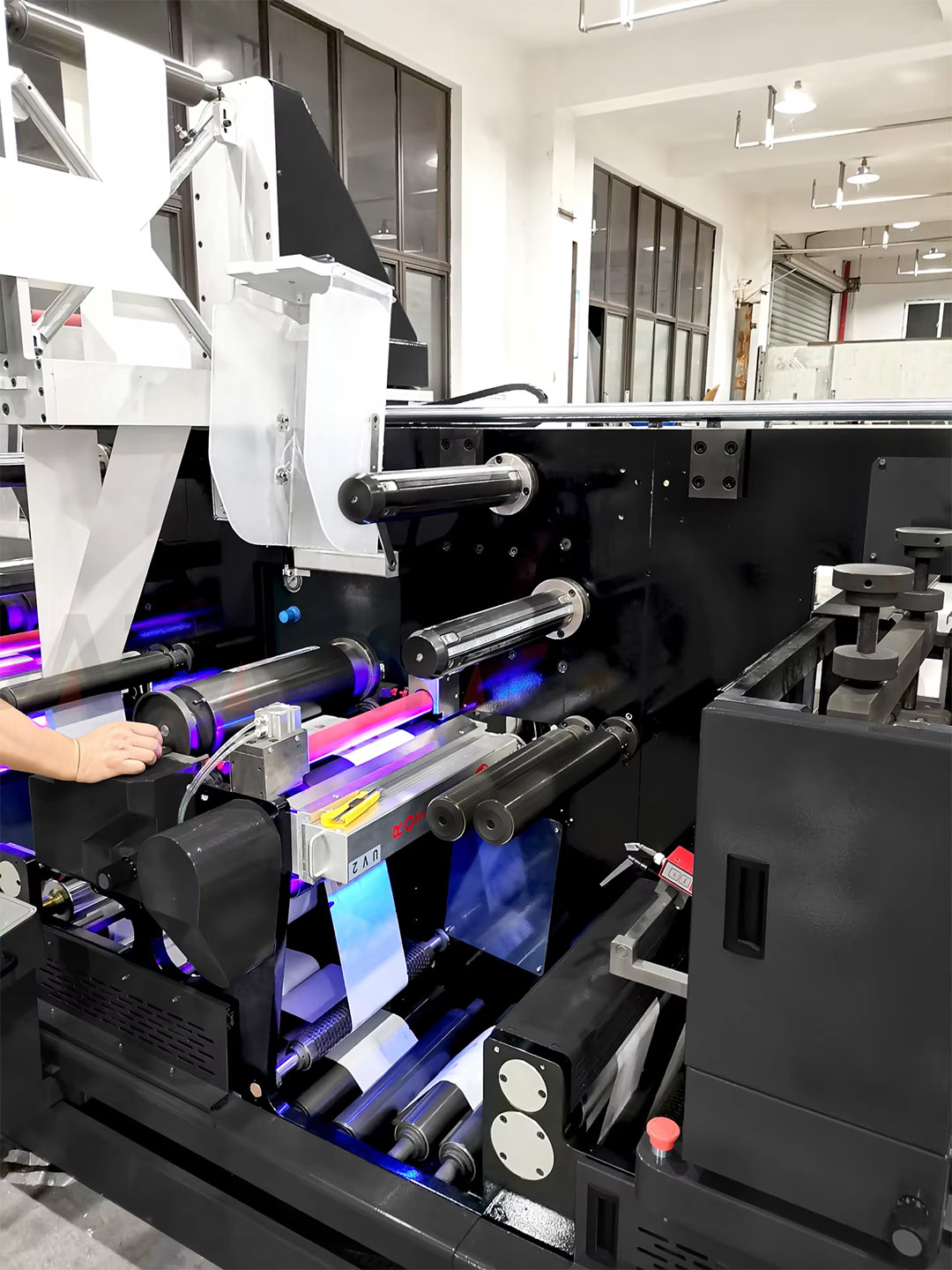

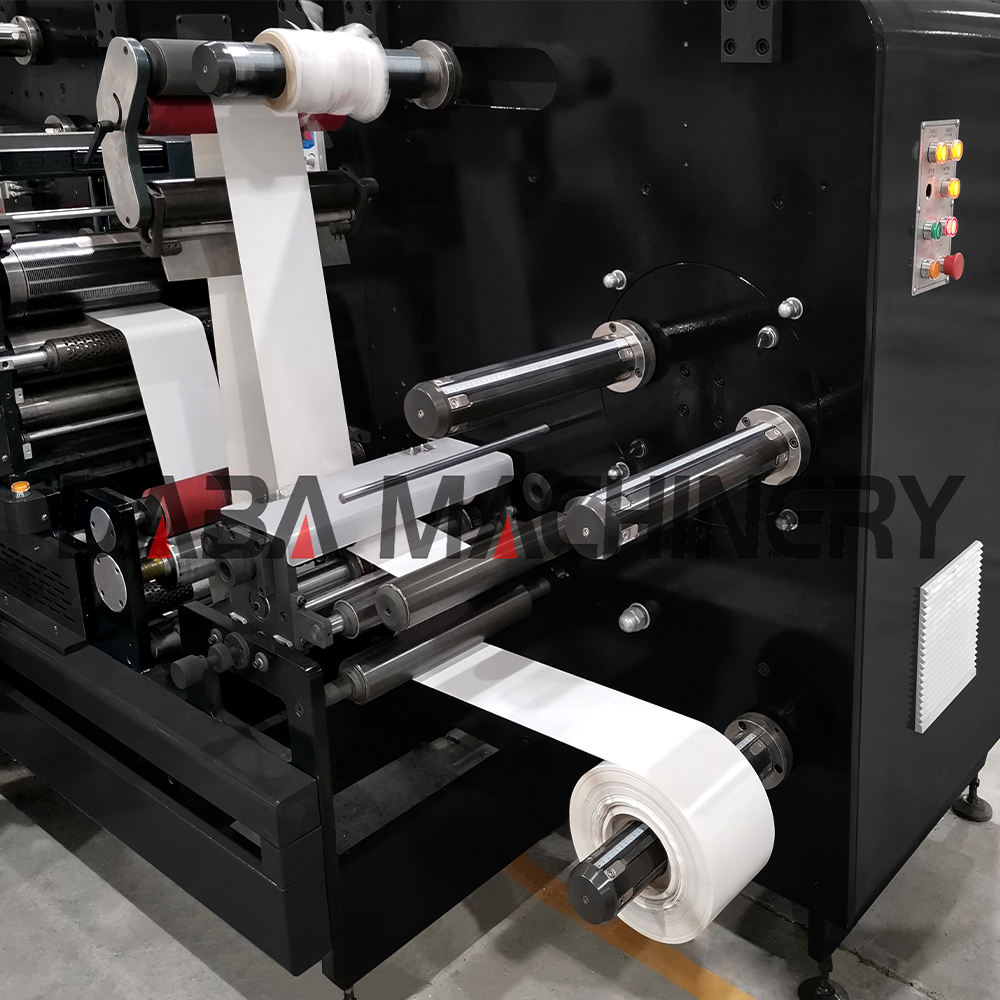

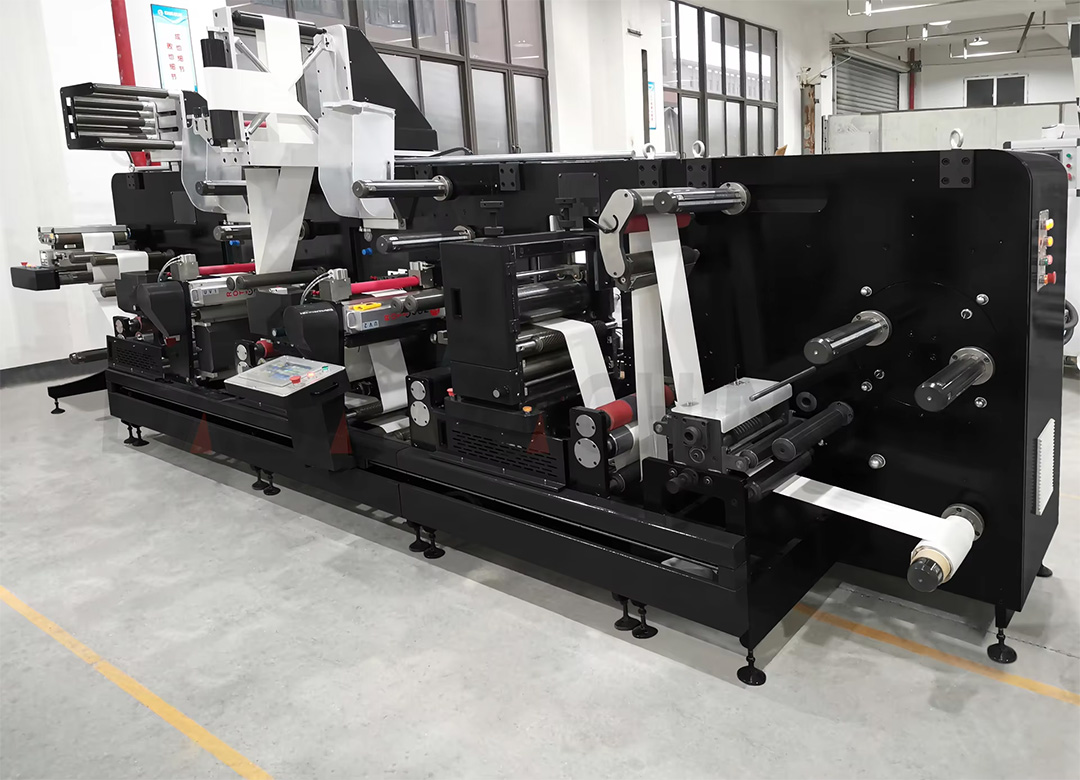

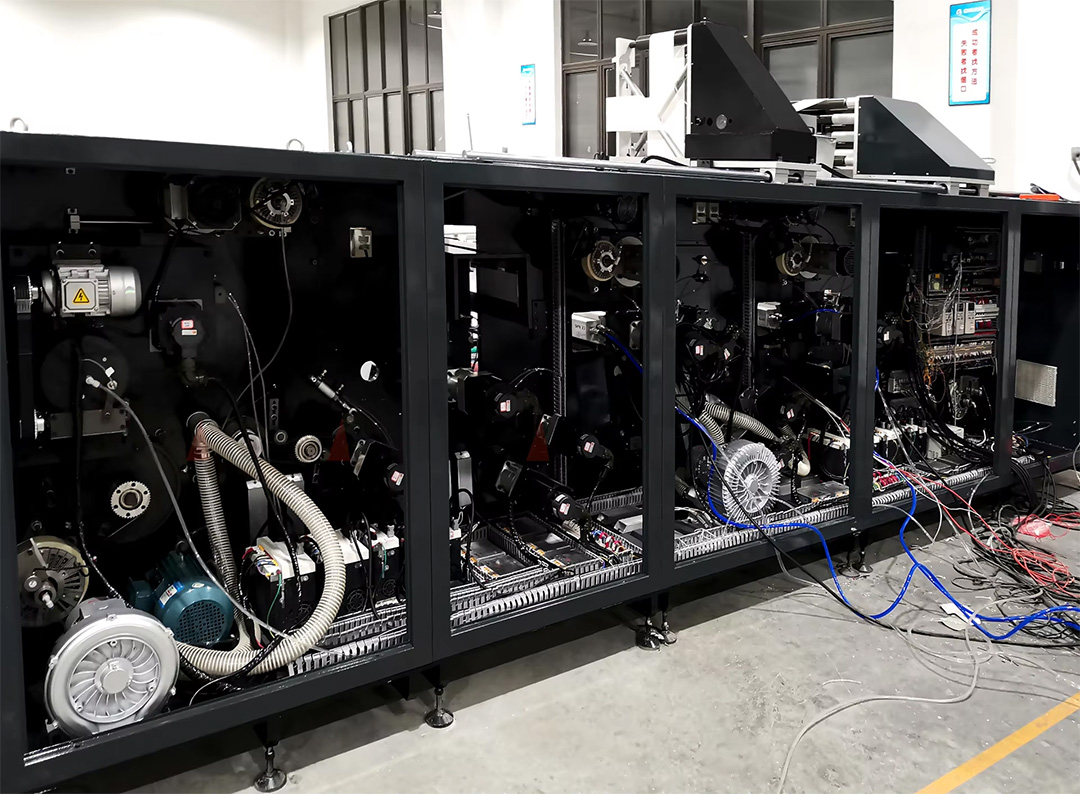

In Factory Photo
