Brand Name : DABA
Model Number : DBMQ-320A
Max.web width(mm) ：320
Max.unwinding diameter(mm) ：600
Independent Unwinding(mm) ： 1000

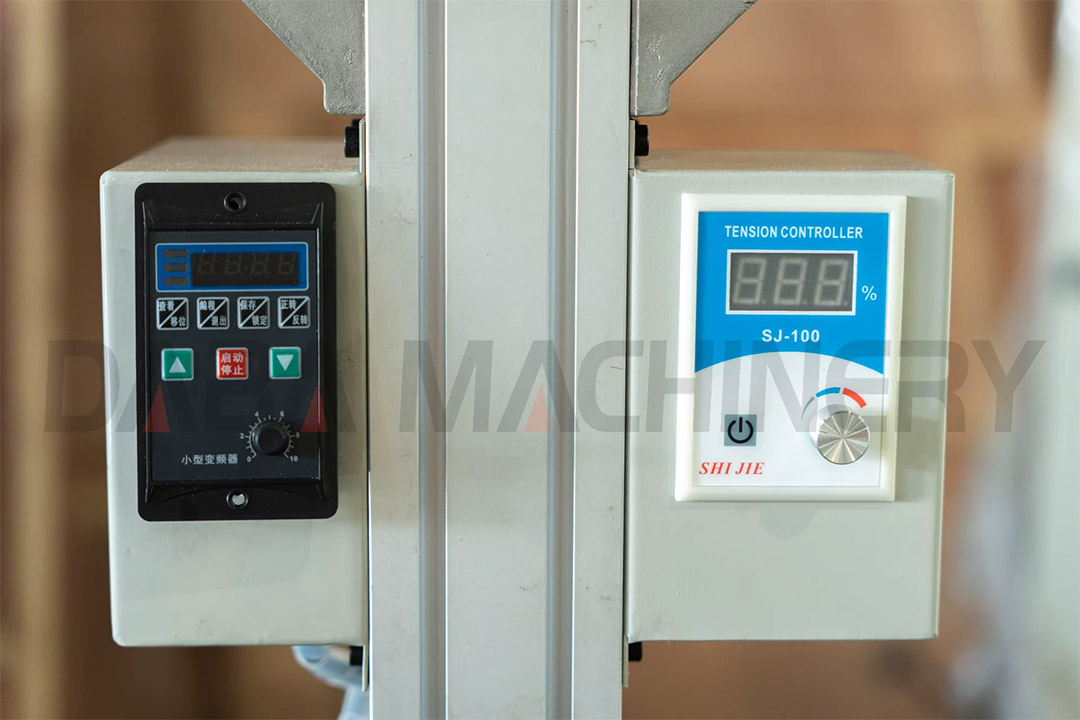

Unwinding tension control ： Friction plate brake
Die-cutting range(mm) ：300*350
Max. die-cuttingspeed：200m/min
Max.rewinding diameter(mm)：600
Weight (KG) ：1000
Dimension(l*w*h) : 1300*1000*1600mm

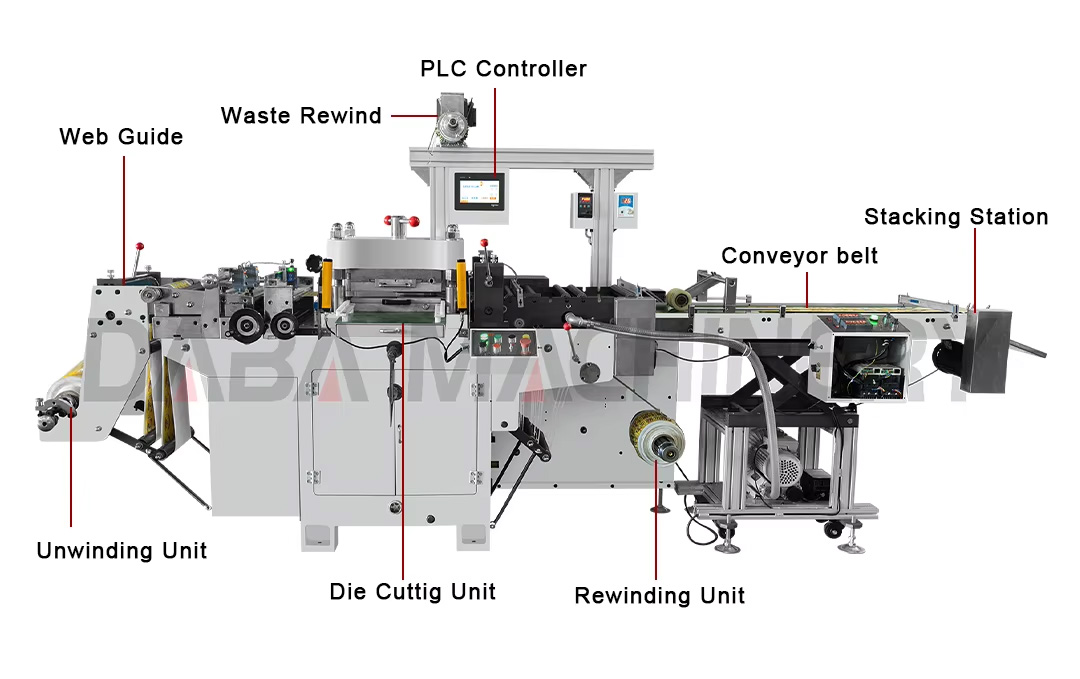

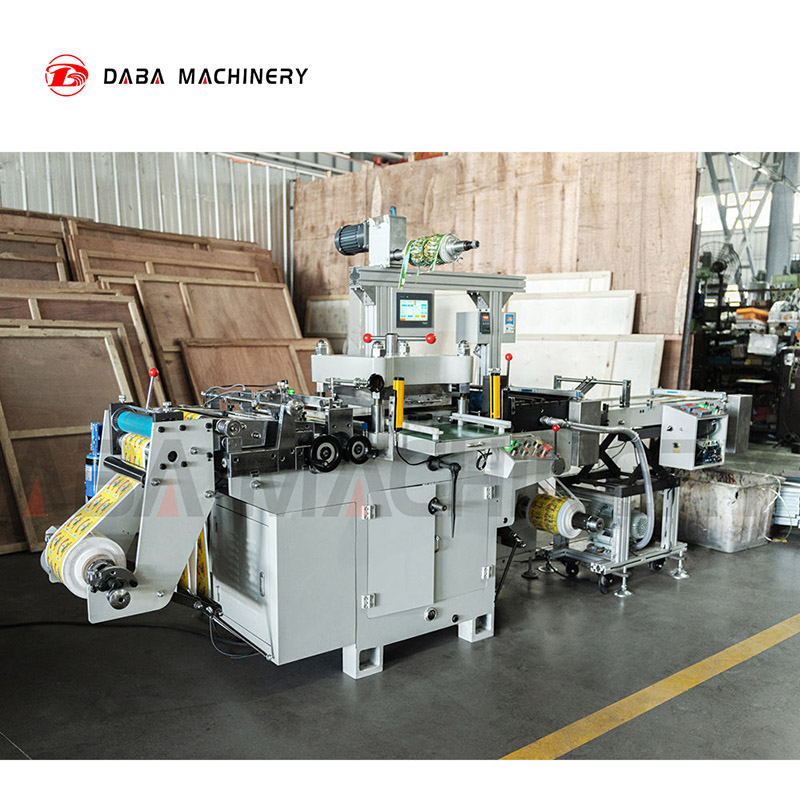

DBMQ-320A auto flatbed die cutter is suitable for die cutting adhesive paper label, dacron film label and laser anti-false label. It cuts label materials into shape required for a designated shape design with high precison.

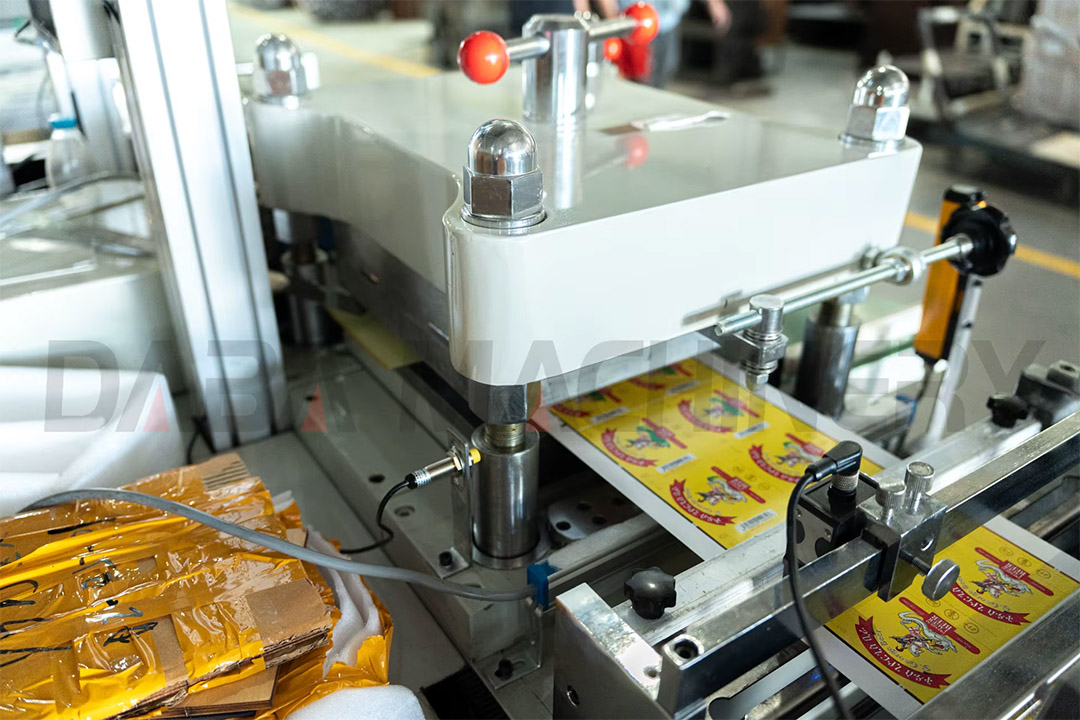

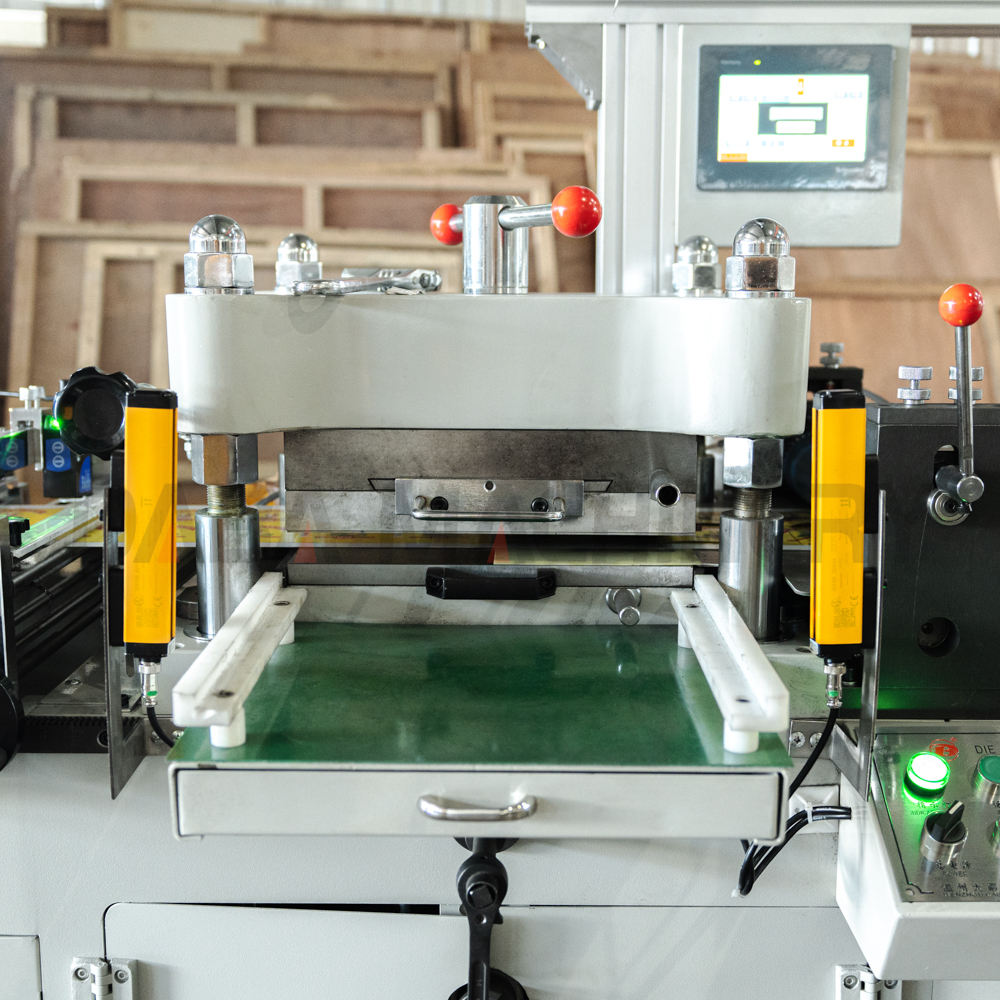

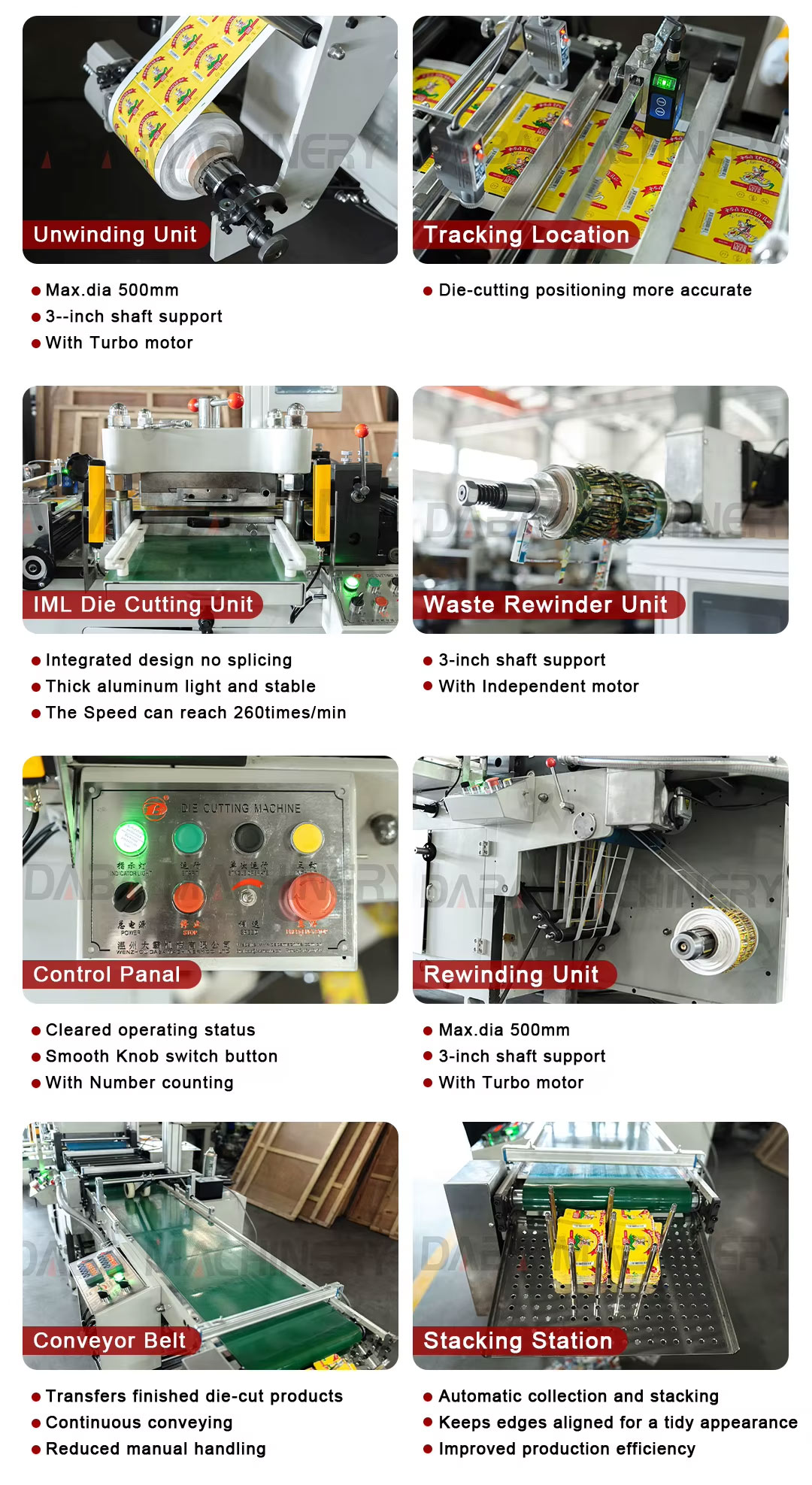

- The machine is splitted style flat to flat high precision die cutting .
- Pulling materials and cutting is controlled by computer.

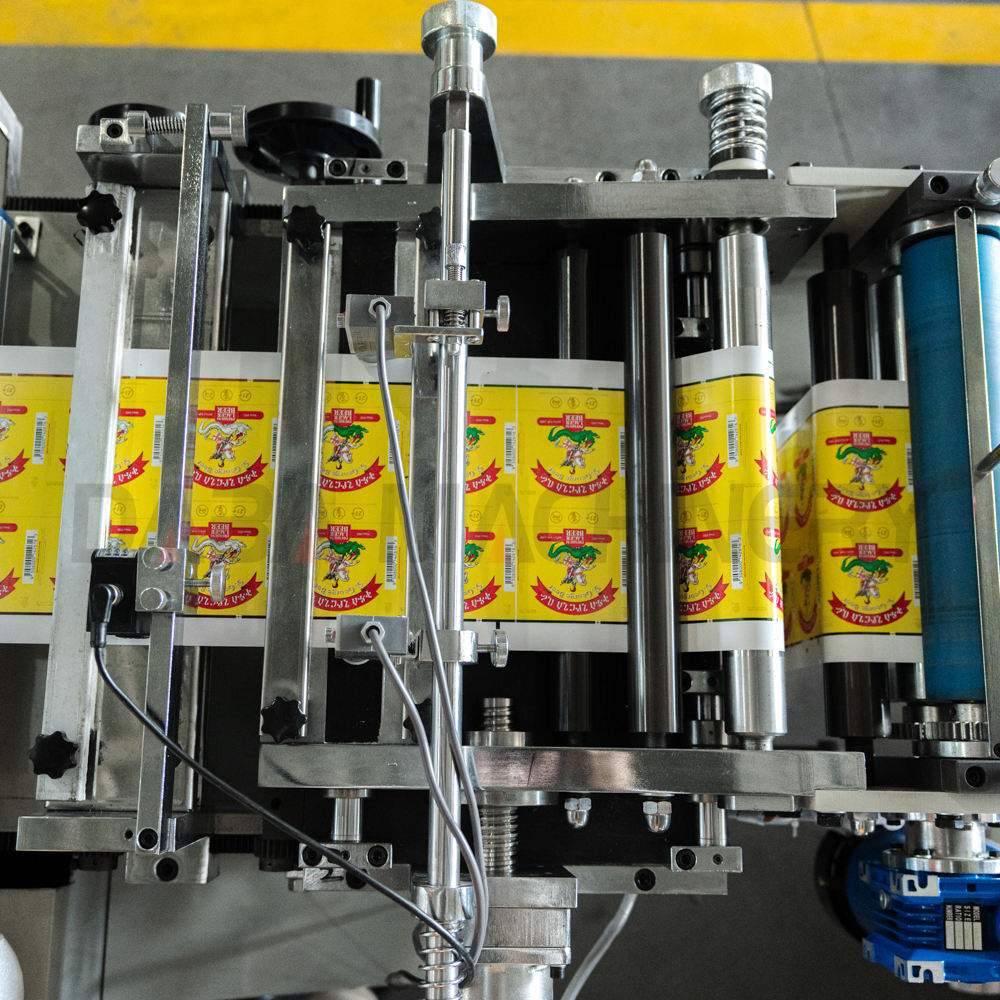

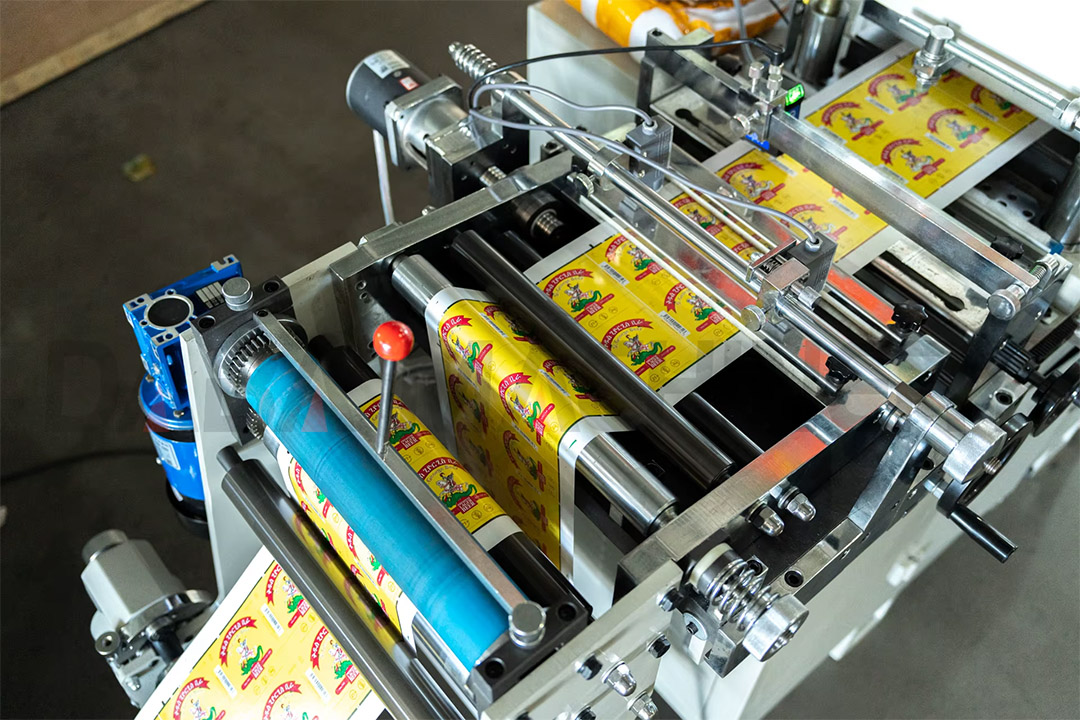

- Two sides and a line are tracked by three photoelectric sensors.

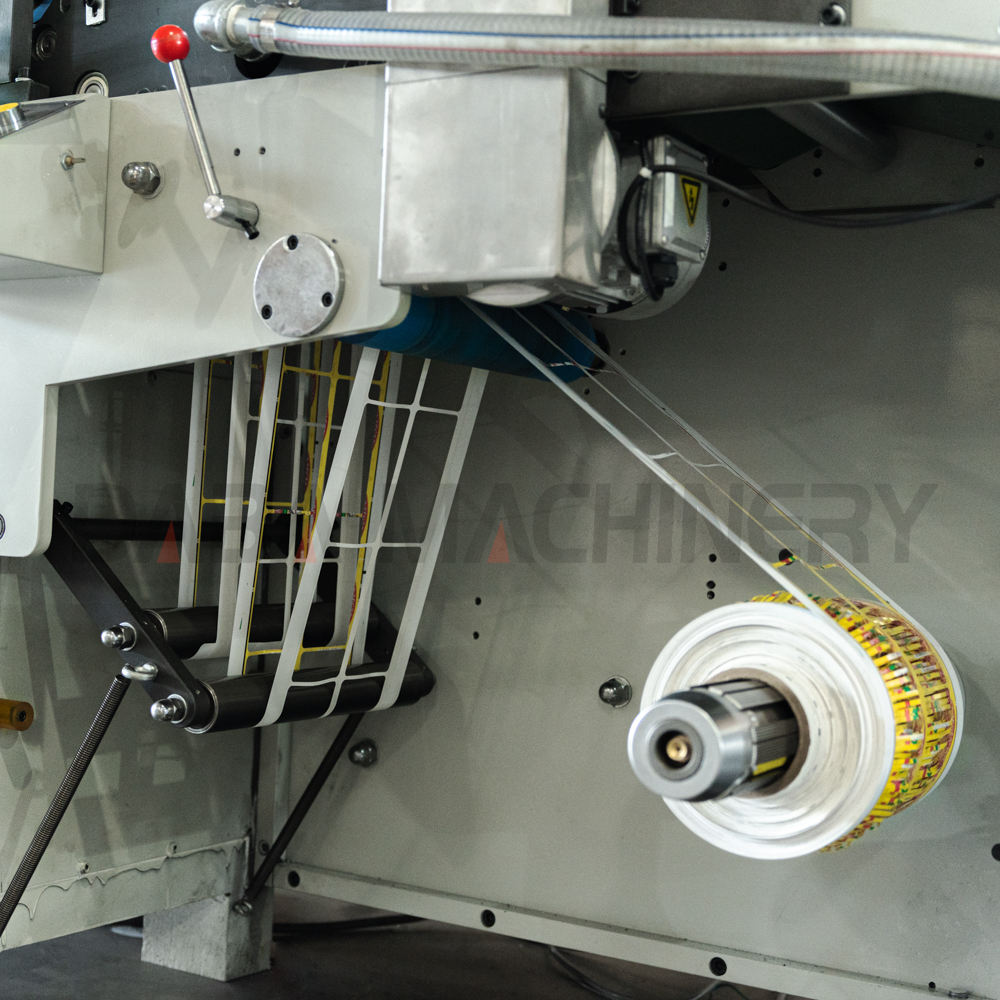

- Tracking、die cutting 、collecting waste、adhesive label can be processed in the same time.
- It’s very suitable for paper adhesive label ,silk screen label and so on.
Product Model | DBMQ-320A | DBMQ-420A |
Max. web width(mm) | 320 | 420 |
Max. unwinding diameter(mm) | Φ600 | Φ600 |
Independent Unwinding(mm) | Φ1000 | Φ1000 |
Unwinding tension control | Friction plate brake | |
Die-cutting range(mm) | 300*350 | 400*400 |
Max. Mechanical die-cutting | 200 cuts/min based on 15mm cutting stroke | |
Web guiding system | Photoelectric eye sensor EPC*2 | |
Max. rewinding diameter(mm) | Φ600 | |
Rewinding tension control | Friction plate brake | |
Power supply | 220V 1 phase | 380V 3 phase |
Main motor power(kw) | 3 | |
Total motor power(kw) | 5 | |

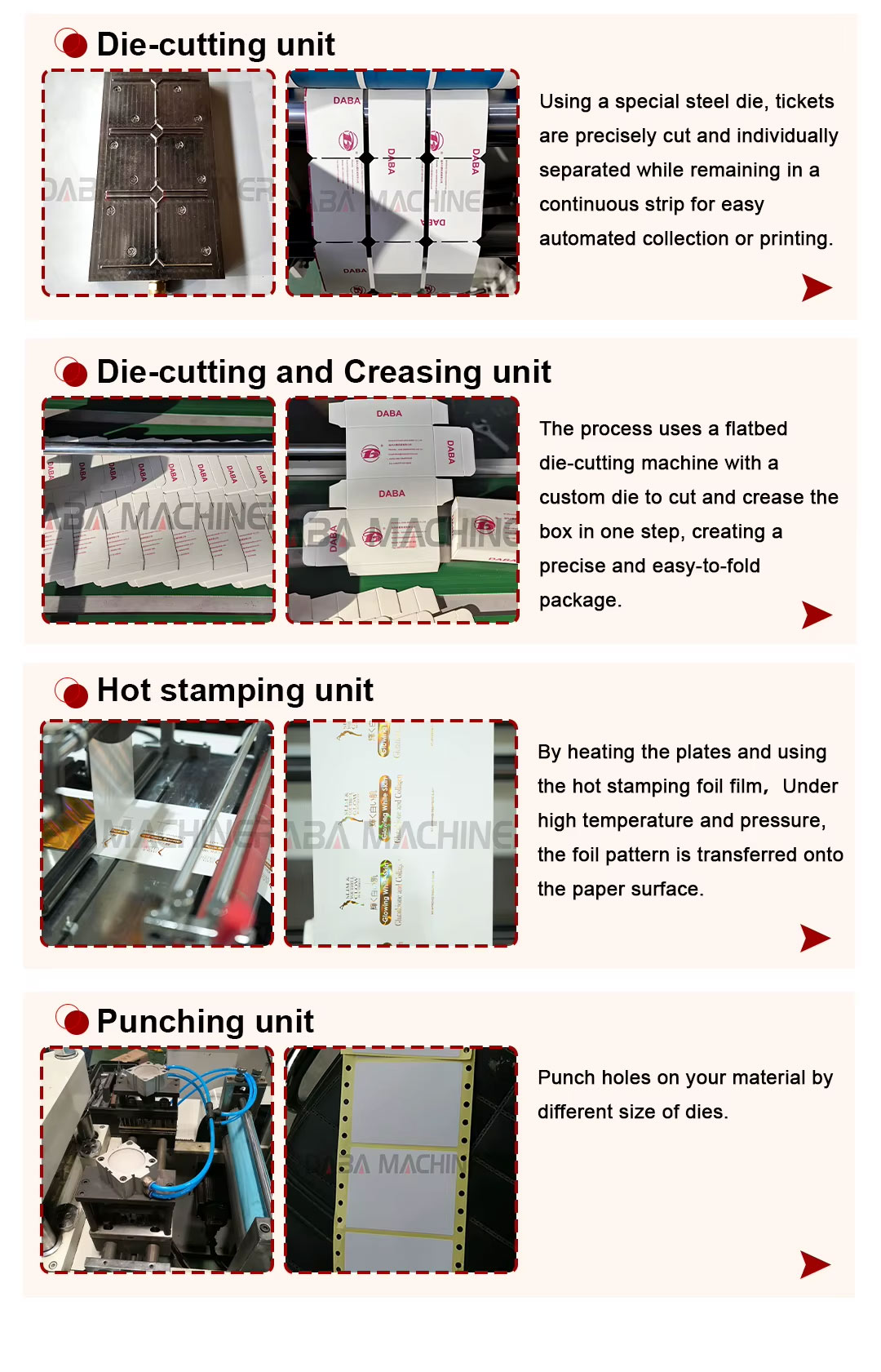

Optional Functions

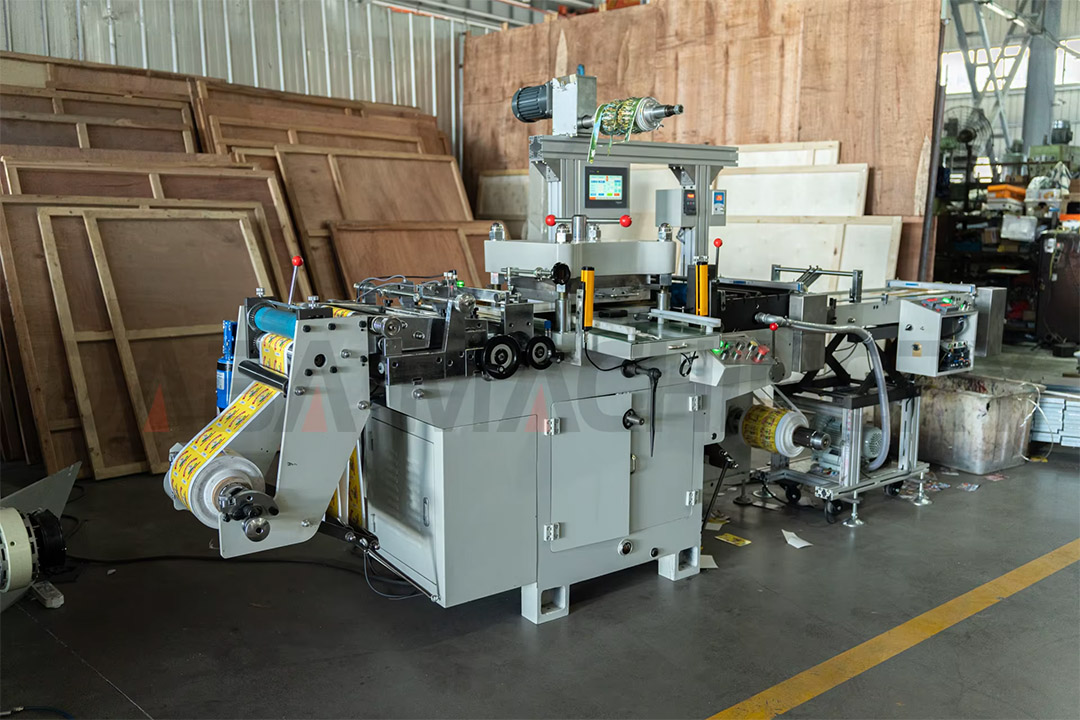

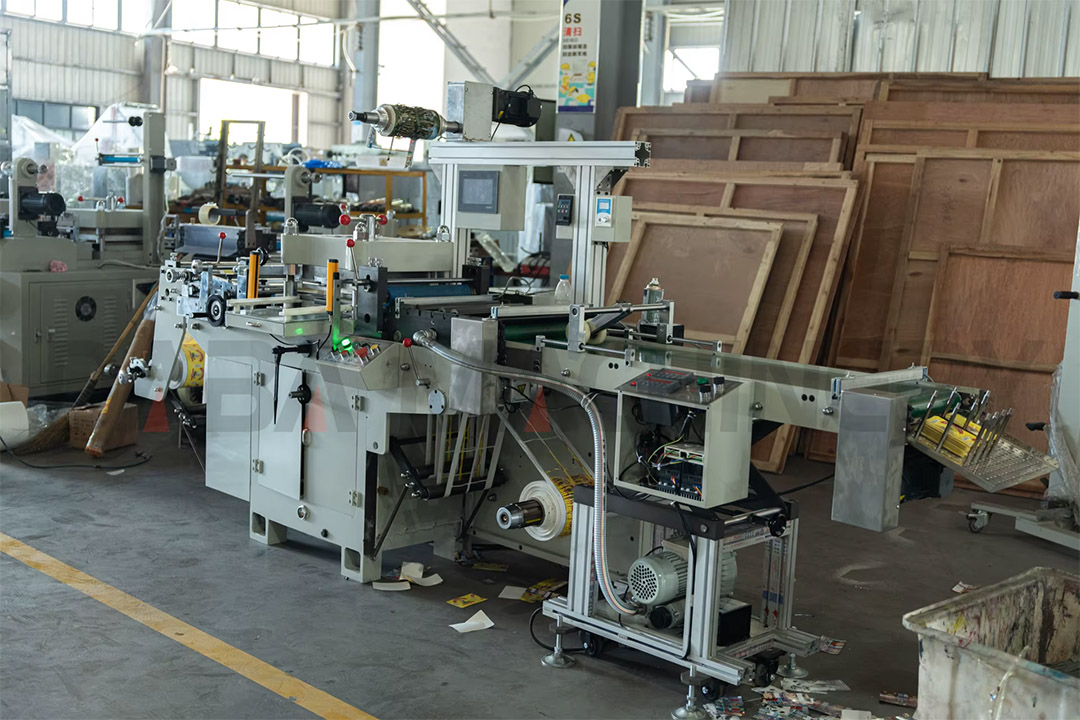

Factory Workshop
