Brand Name : DABA
Model Number : DBFQ-320B
Max.web width(mm) ：Up to 320mm
Max.unwinding diameter(mm) ：500
Die Cutting Speed ： 120m/min
Slitting Speed： 120m/min
Die cutting length：178-470mm (7" - 18,5")
Max.rewinding diameter(mm)：480/220mm
Weight (KG) ：1200
Overall Diameter : 1800*1100*1500mm

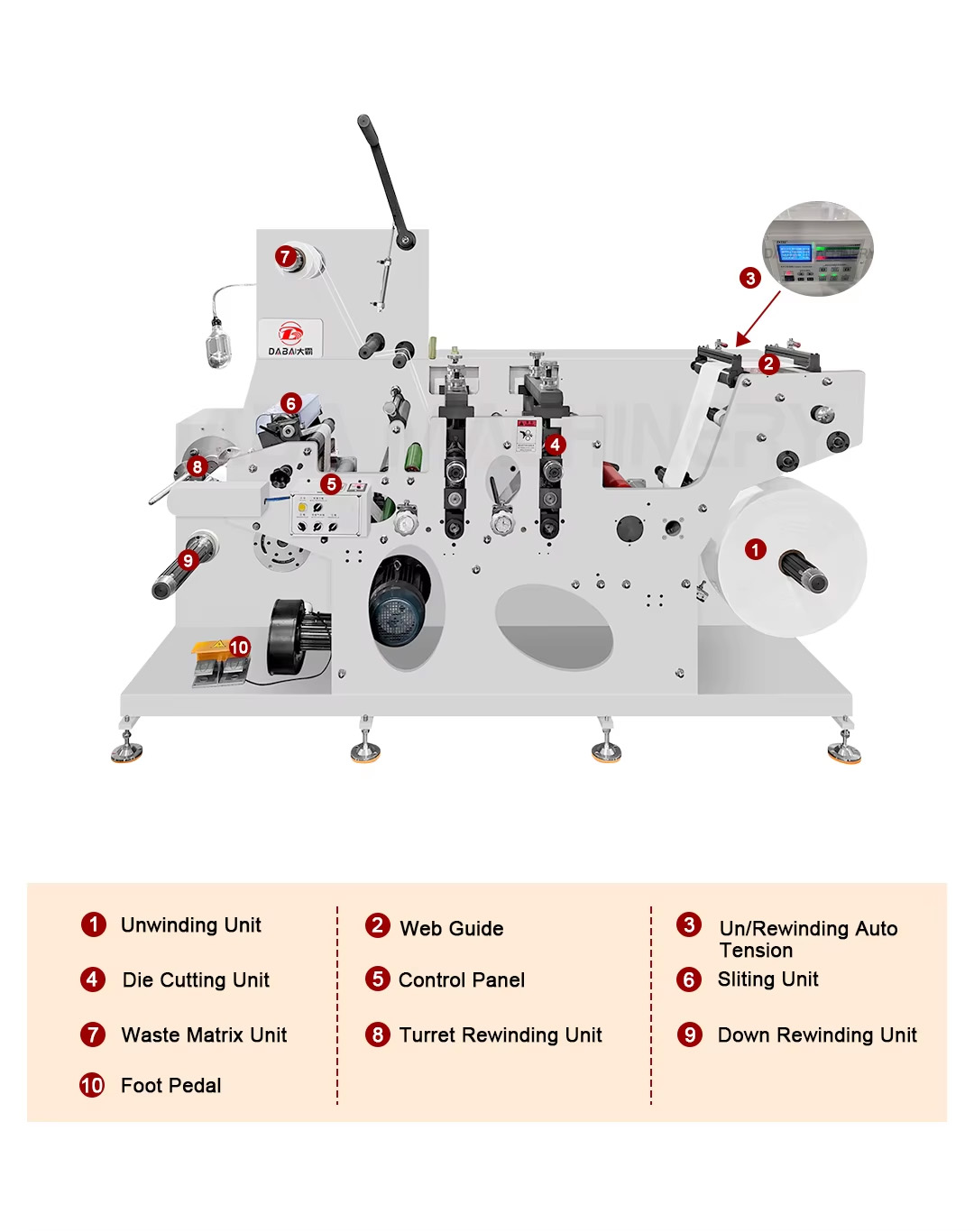

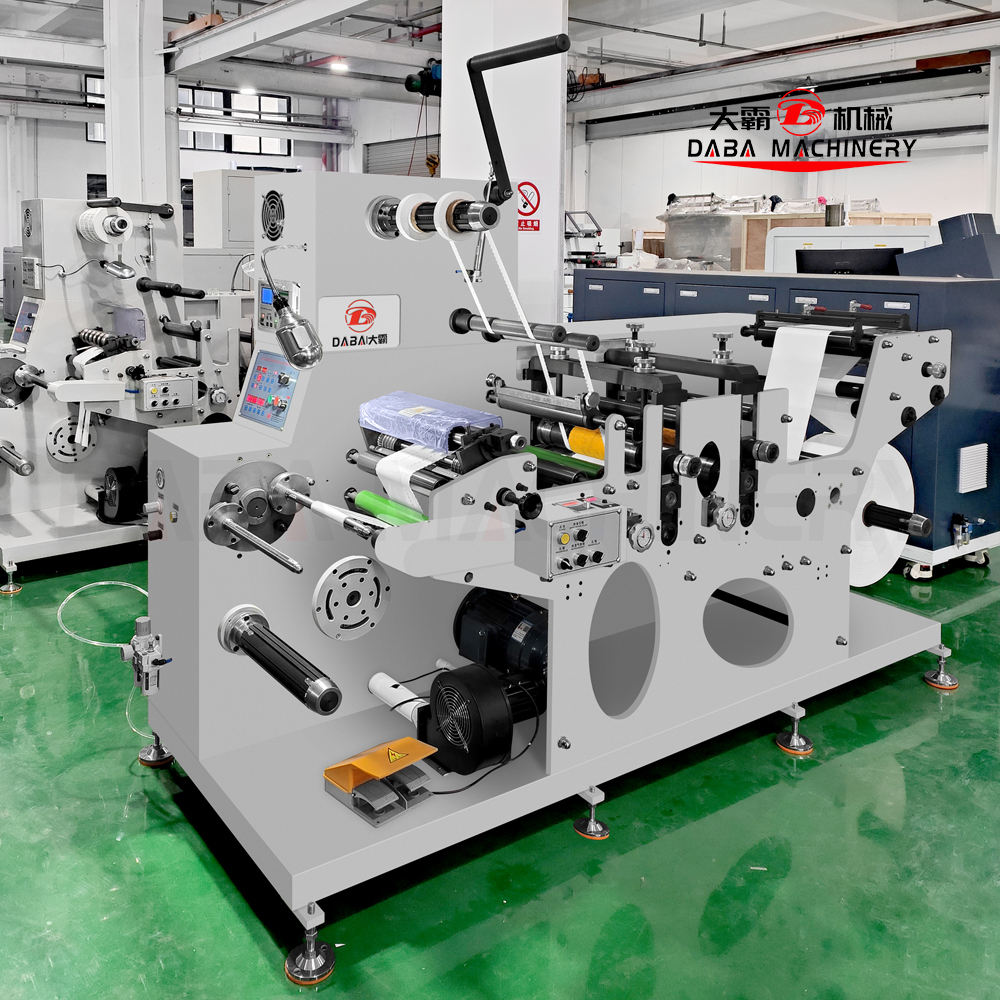

Main Features:

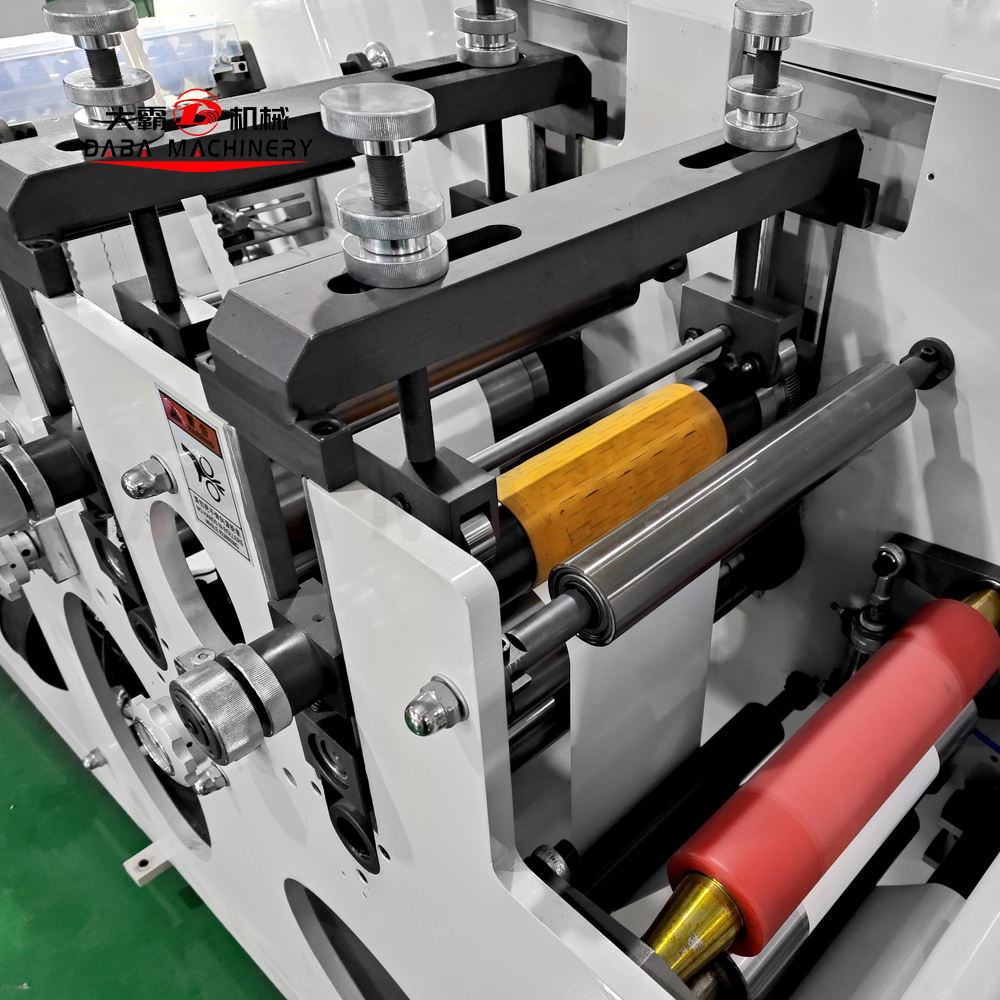

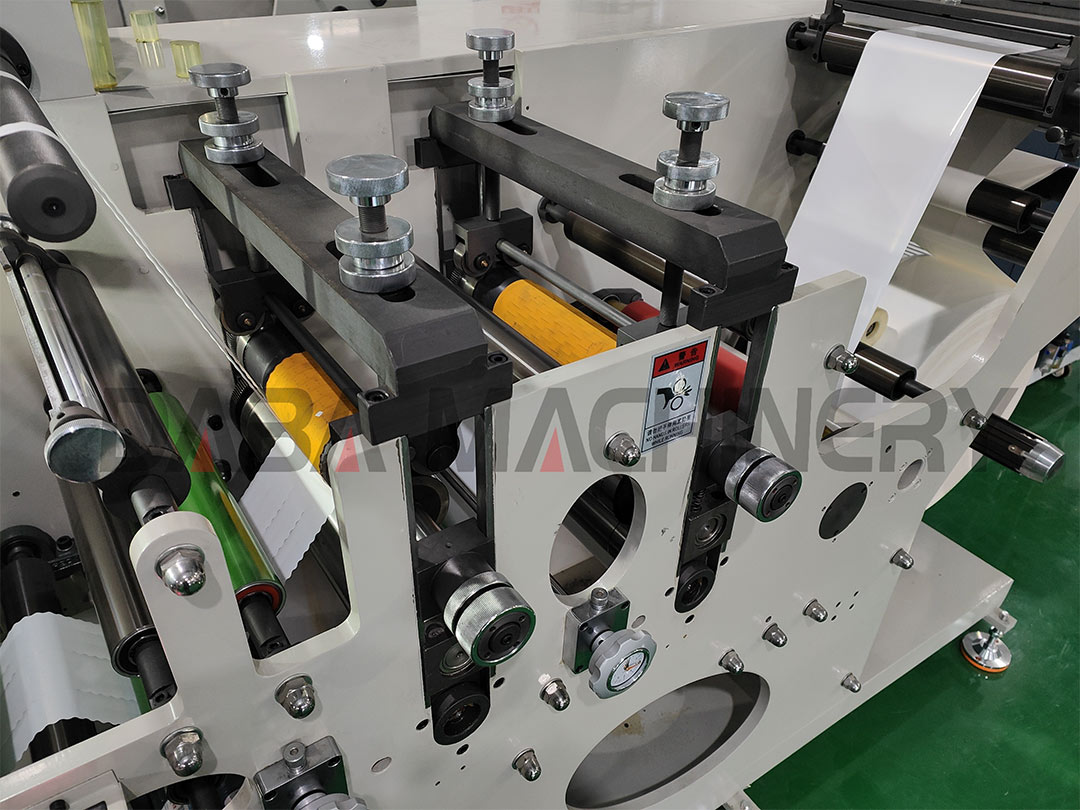

Our Blank Label Die Cutting machine has die cutting and slitting two functions.This machine is a new design, it equipped with high accurate rotary die cutting system, it is suitable for blank adhesive label material.Die cutting, laminating(option), slitting can be completed in one process.

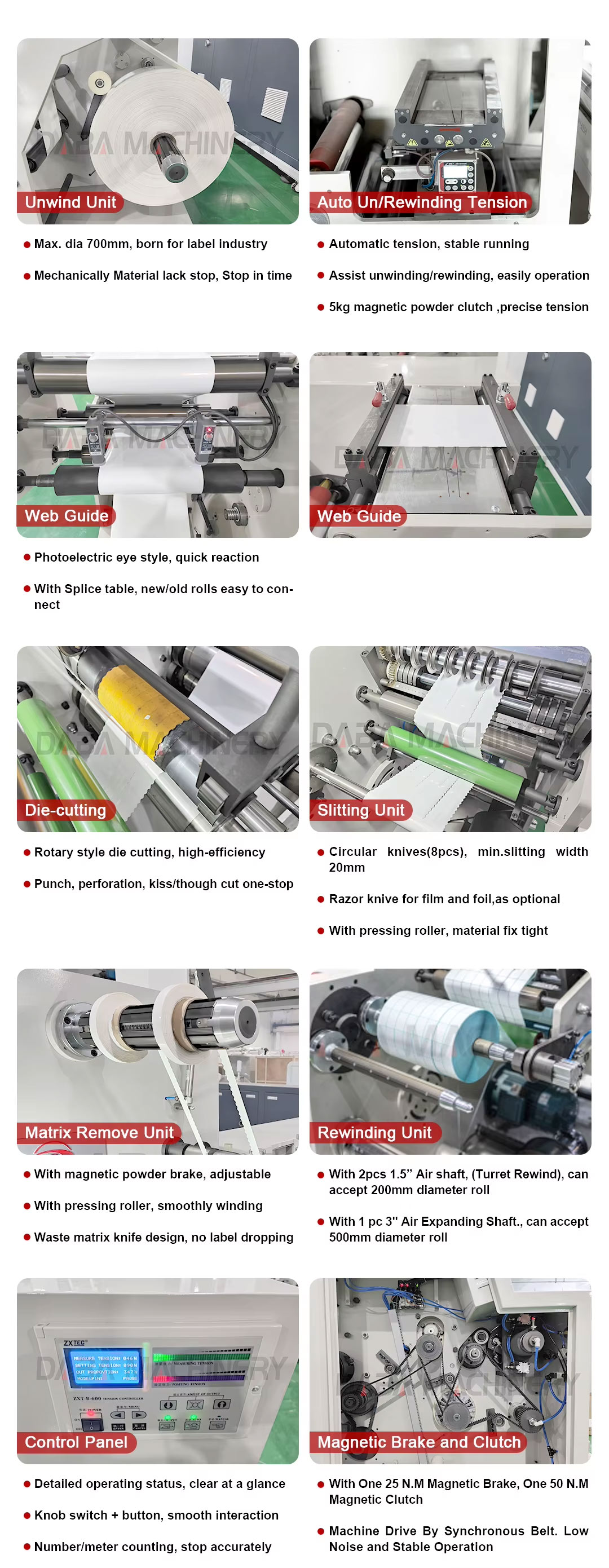

It has the function of automatic meter counting, Automatic stop, web guiding by photoelectric etc functions.
This machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and stably running and so on features.It is an ideal machine for cutting blank labels.
Application:
1. It is applicable for paper,sandpaper,adhesive tape, protective film, copper foil, aluminum foil, felt pad, OPP, PE, PVC,PET,
cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Applicable Material:
* Self-adhesive paper,Self-adhesive thermal paper,thermal paper ATM etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesivePET film,Self-adhesive PVC film,etc.
* plastic film:Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film. * Papermaterial:kraft paper,paper cup paper,etc.
Application Industry:
Food product label, Anti-counterfeit label, Daily chemical products label, Medicines label, Chemical label, Paper cup paper,Blank label, Gold stamping label, Adhesive label, Wine Label, Price Label, Wash care Label, Oil Label, Bottle Label, Napkin Label,Milk label, PVC label, Thermal label, Beer Label, Commercial label, Health product label, Delarm&Relarm label, Battery label,Alcohol label, etc.

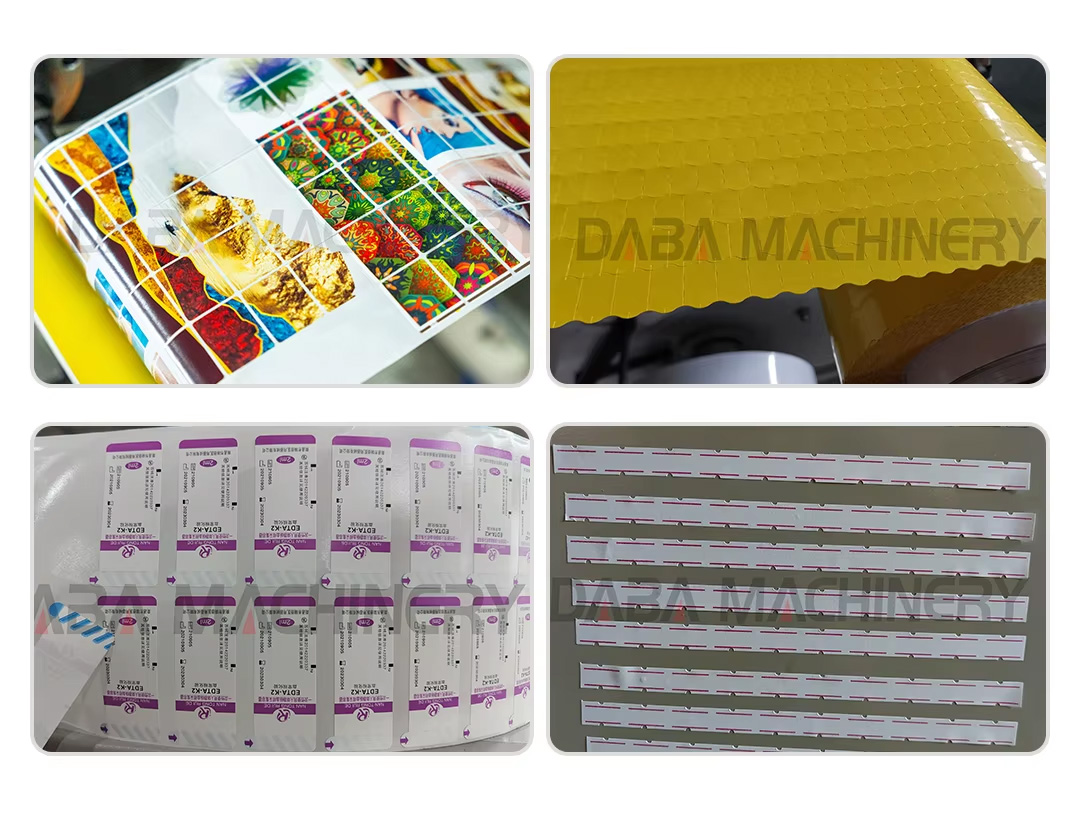

Sample

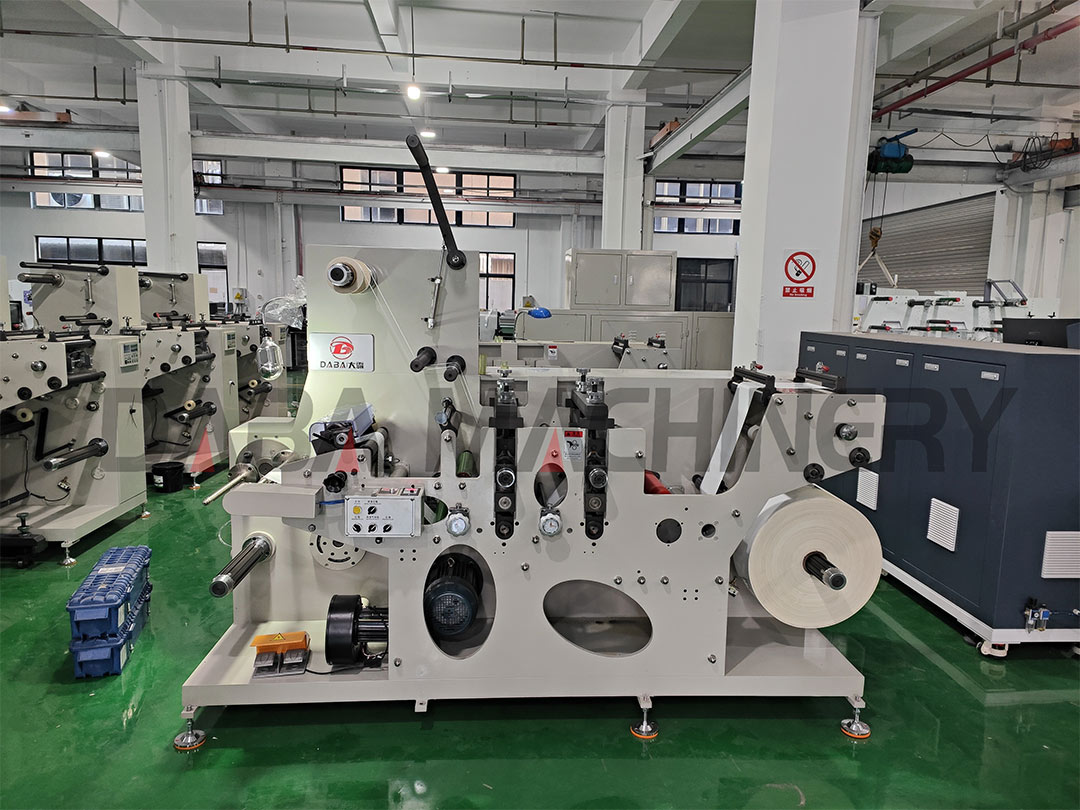

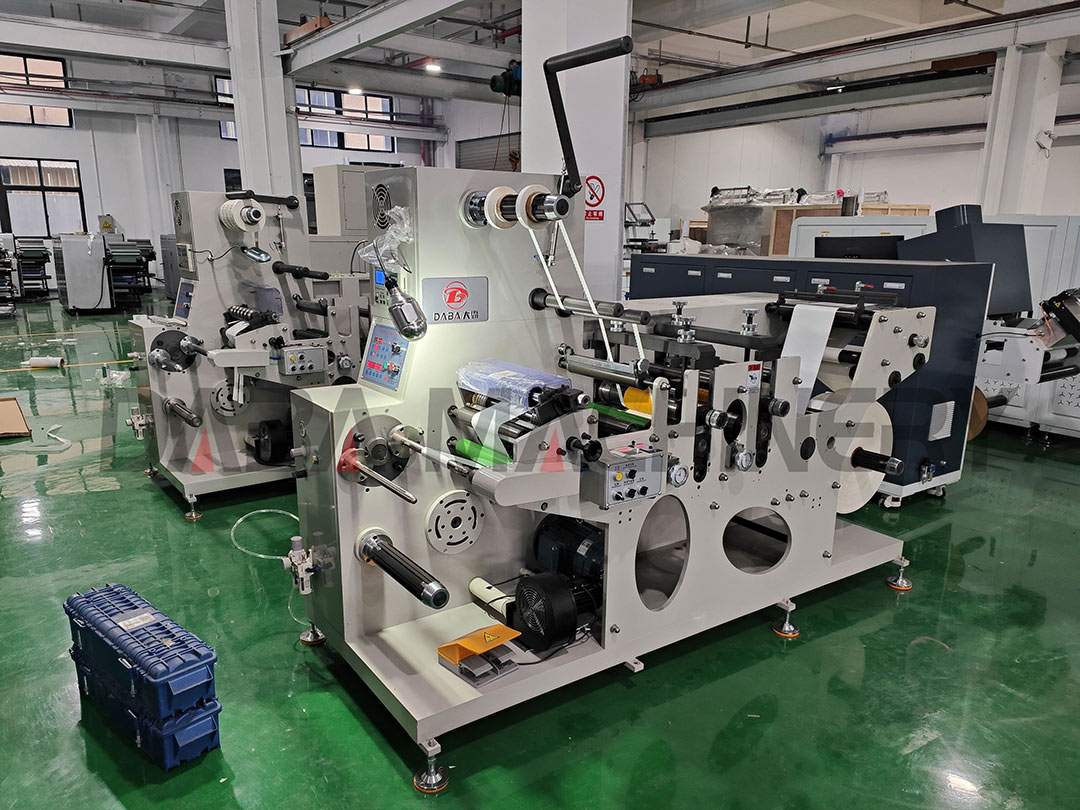

Factory Workshop
