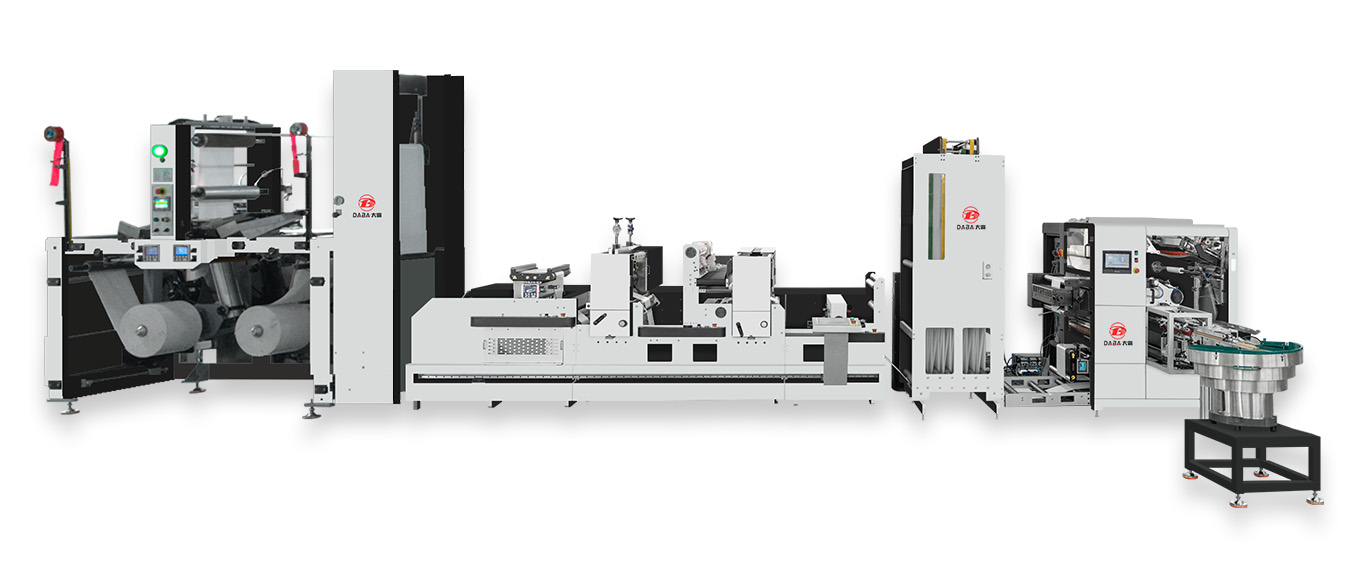

Full Automatic Non‑Stop Rotary Die Cutting Slitting Rewinding Line, DBMQ-S570
Series Line is a high-performance fully automatic production line for the blank label industry. It includes a non-stop splicer, die-cutting unit with non-stop waste matrix removal, and glueless non-stop turret rewinding machine. The whole line adopts full servo motor drive. It features advanced functions, simple operation and high production efficiency, making it the ideal choice for blank die-cut label production.
| TECHNICAL PARAMETERS | |||
|---|---|---|---|
| Type | S-320 | S-450 | S-570 |
| Maximum web width | 320mm | 450mm | 570mm |
| Maximum unwinding diameter | 850mm | 850mm | 1000mm |
| Maximum rewinding diameter | 260mm | 260mm | 260mm |
| Maximum die cutting repeat | |||
| circular patch | 1/8" 3.175mm | 1/8" 3.175mm | 1/8" 3.175mm |
| Motorization | servo motors | servo motors | servo motors |
| Air-pressure | |||
| Material | adhesive film material roll, adhesive paper material roll | ||
| Maximum Mechanical Speed | 150m/min | 150m/min | 150m/min |
