Brand Name : DABA
Model Number : DBMQ-R350M
Max. Feeding width : 350mm
Max. speed : 220m/min
Position accuracy : ±0.10mm
Max.unwinder dia : 800mm
Max.rewinder dia : 140mm
Voltage : 380v,3phase
Total power ：9kw
Weight : 1500kg
Size(L*W*H) : 2300*1200*3000

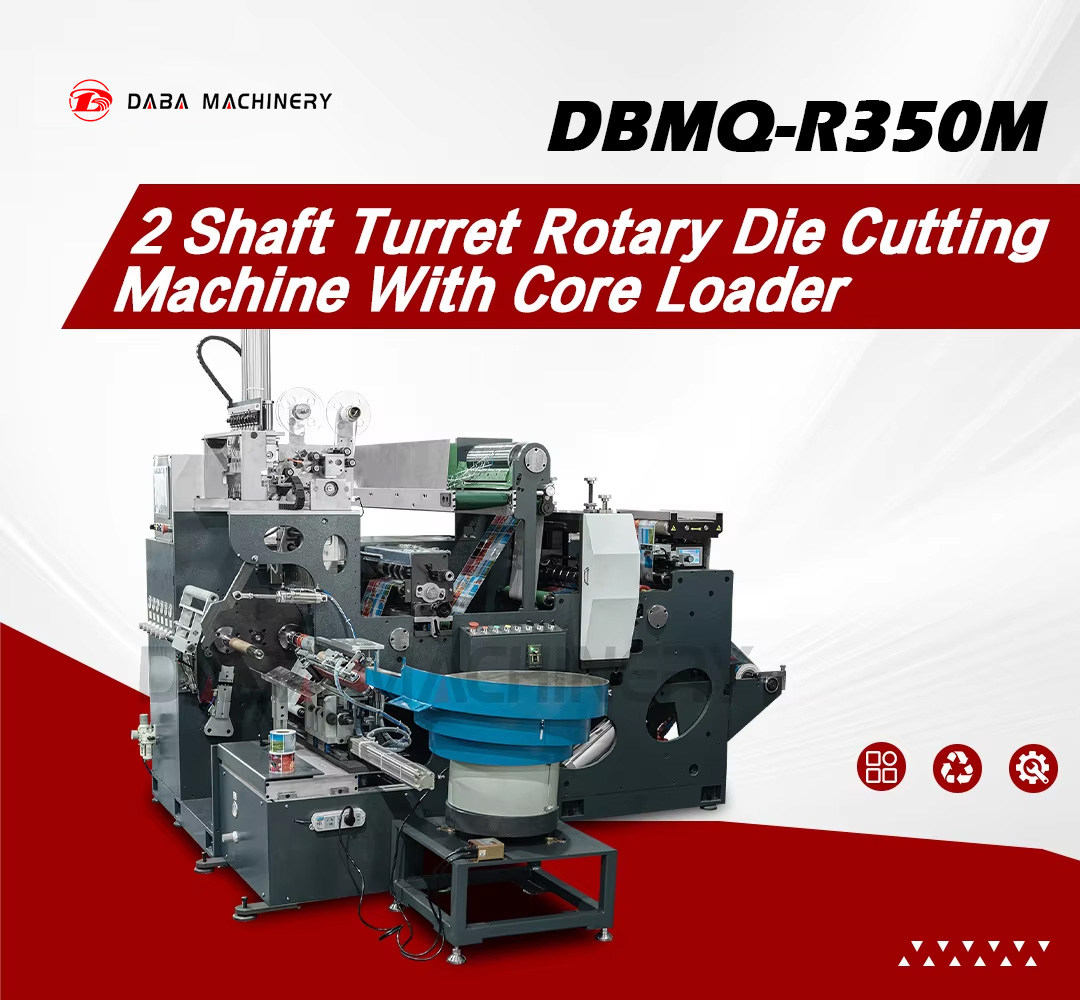

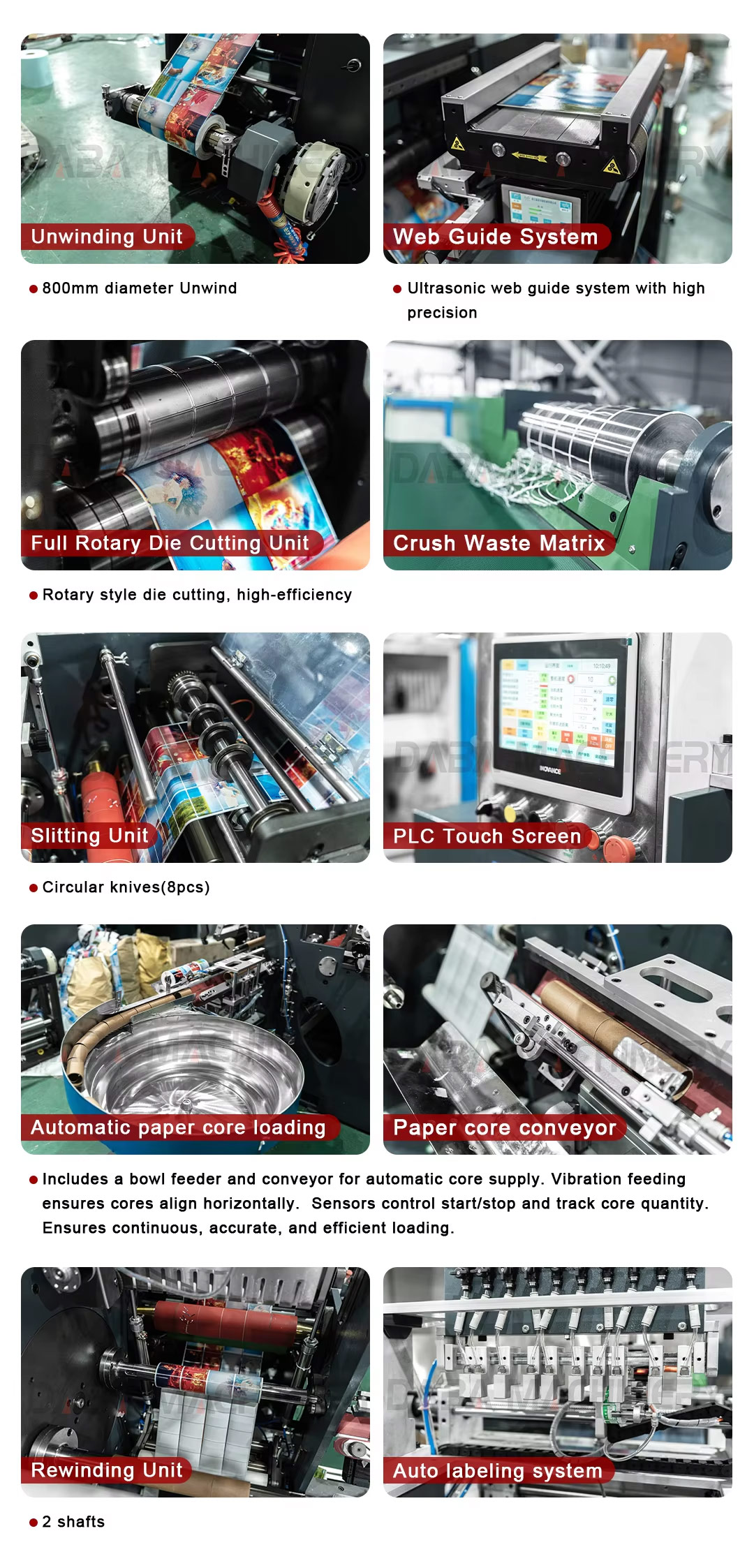

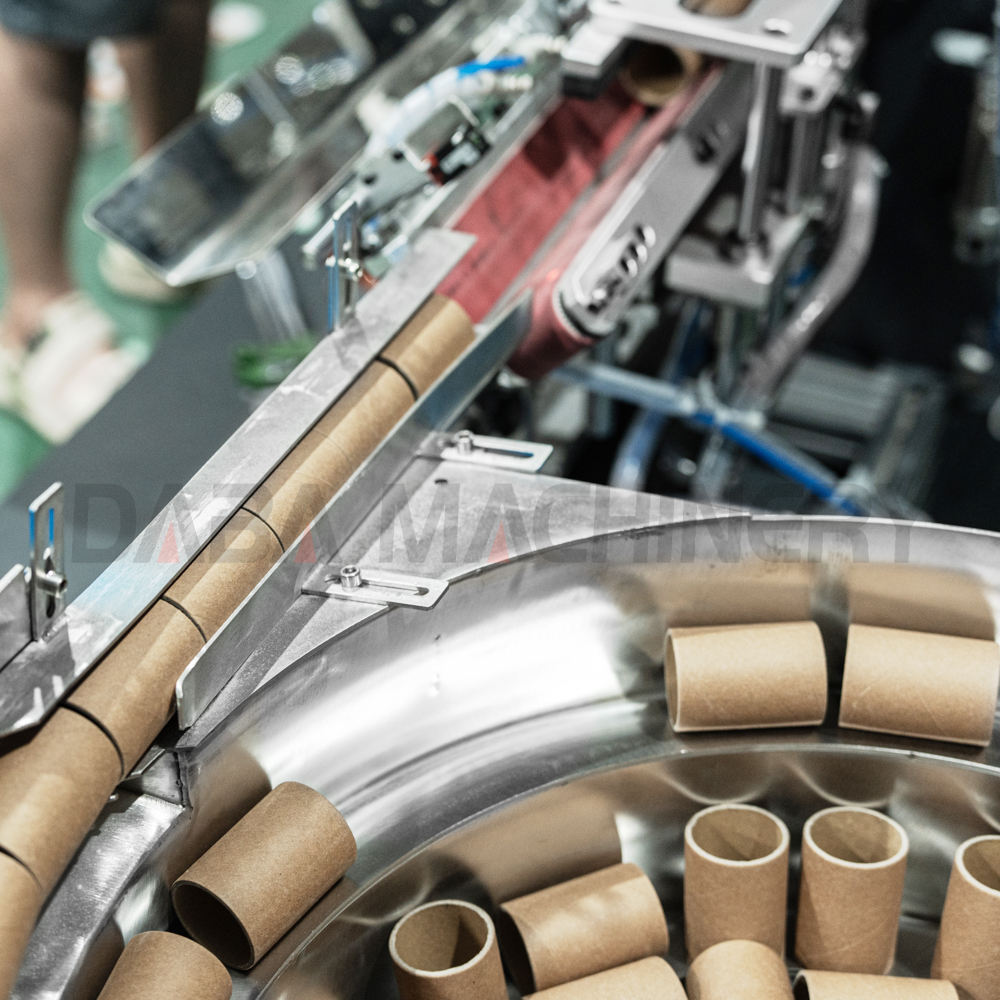

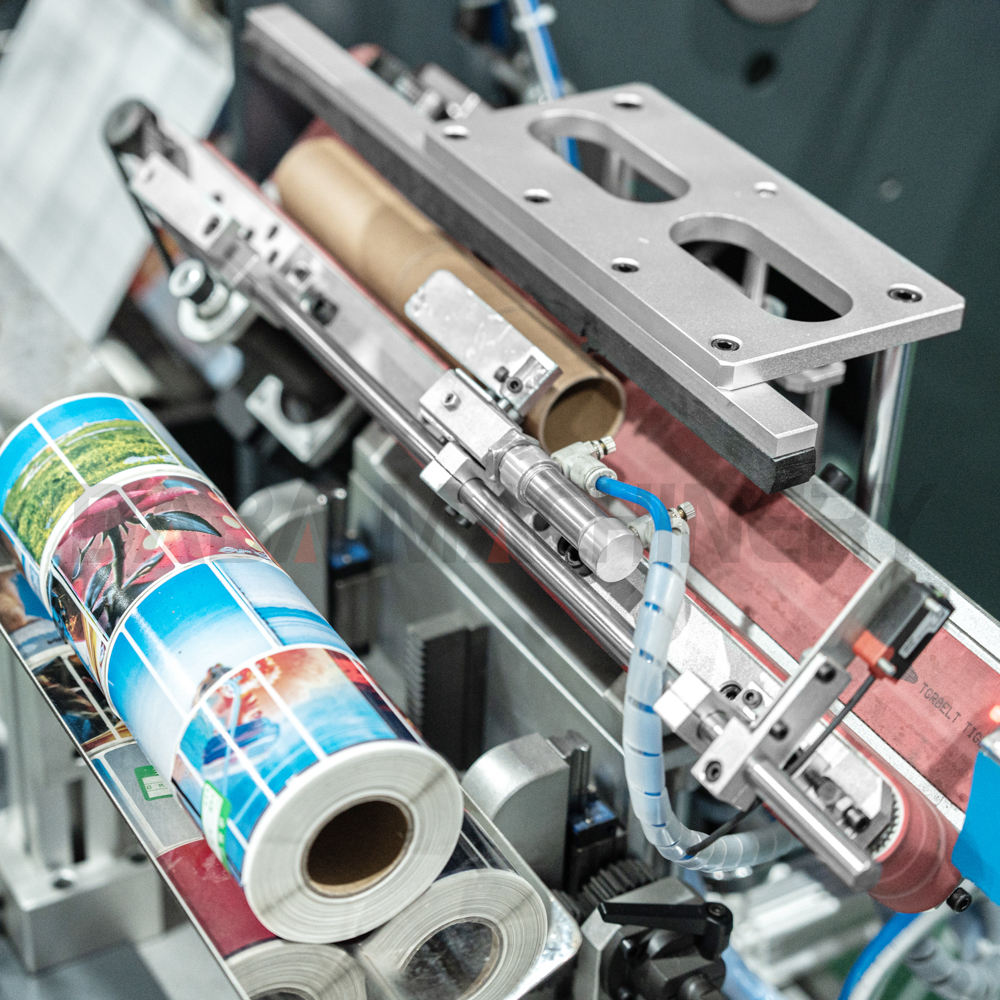

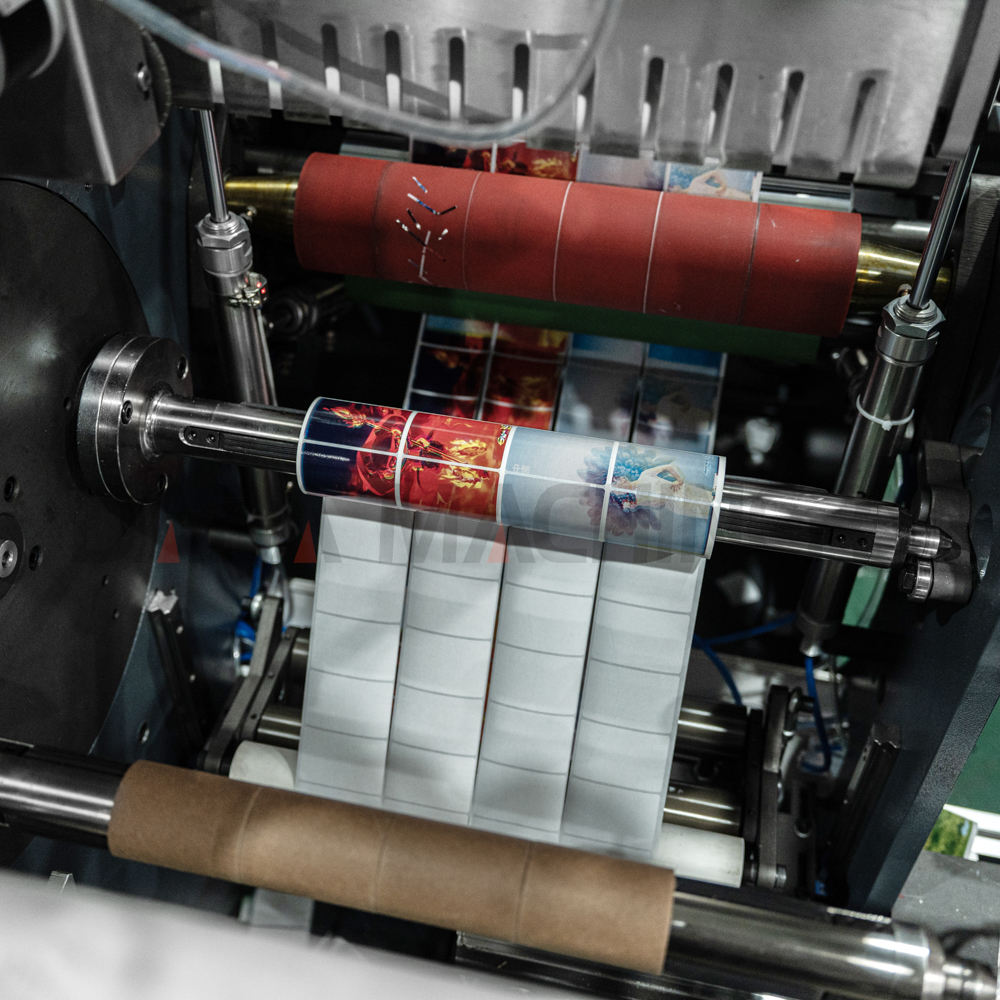

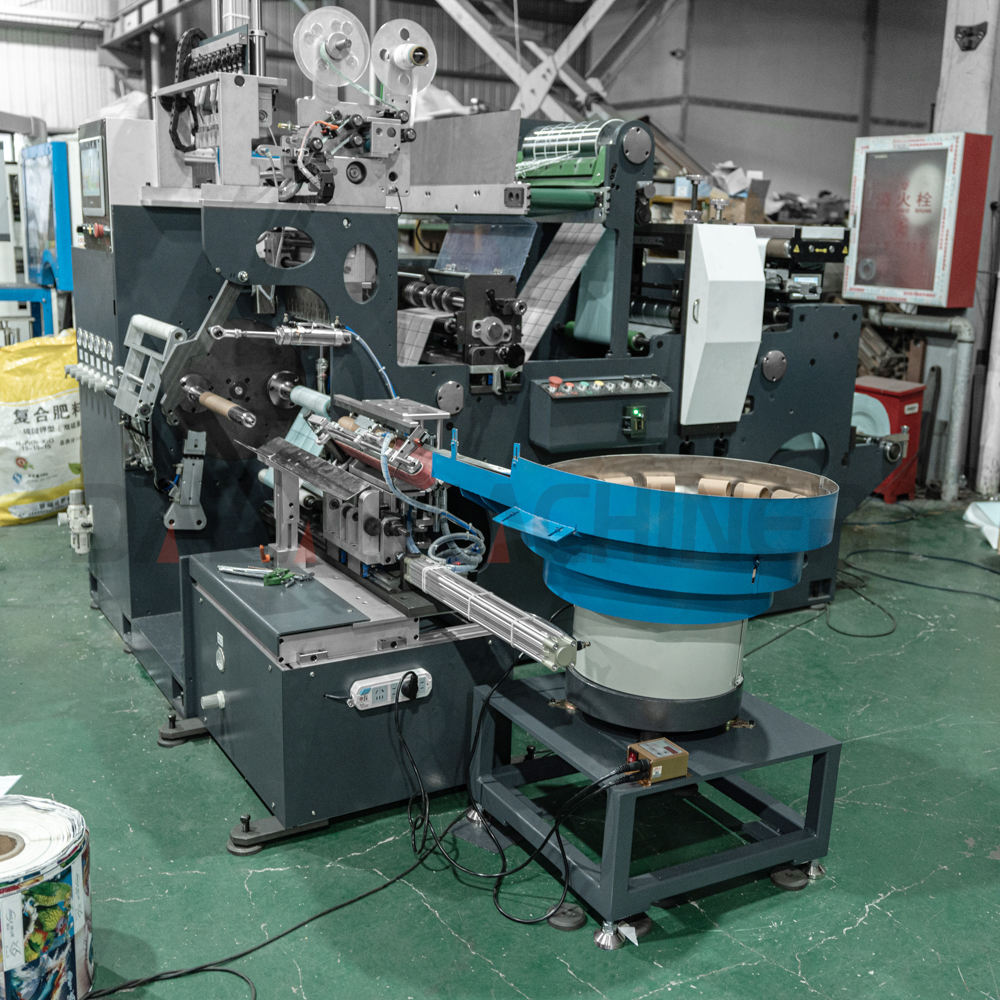

DBMQ-R350M full auto Turret Rewinder is designed with 2 air shafts to improve producing efficiency and saving the cost of workers.This machine is mainly used for adhesive label production, This machine run at 200m per min, it adopt inovance servo motor system. It have pneumatic upload, auto paper core feeding, gap cut, auto labeling, meter and number count and so on function. Total machine have 6 pcs servo motors.
Rotary die cutting station can be option

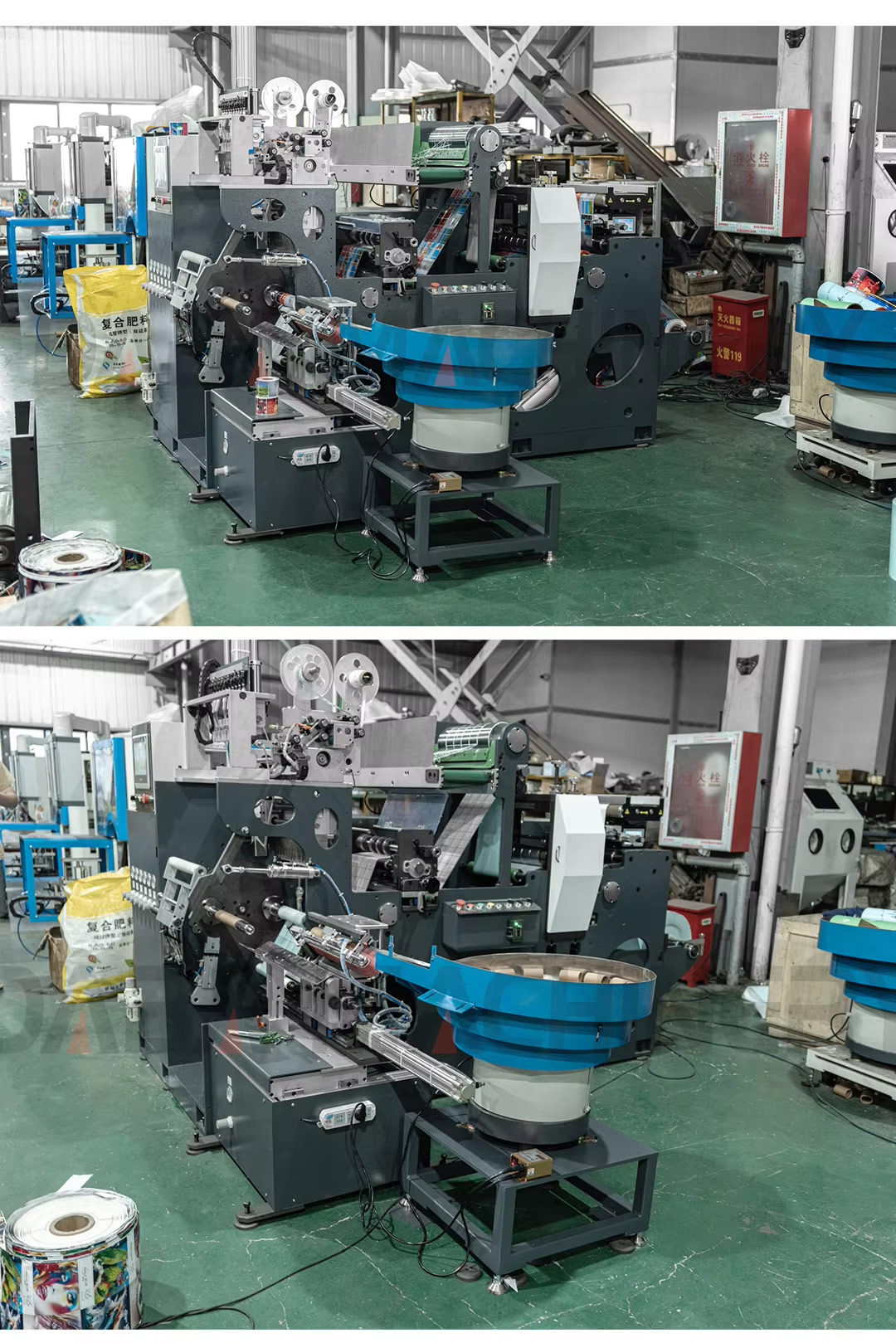

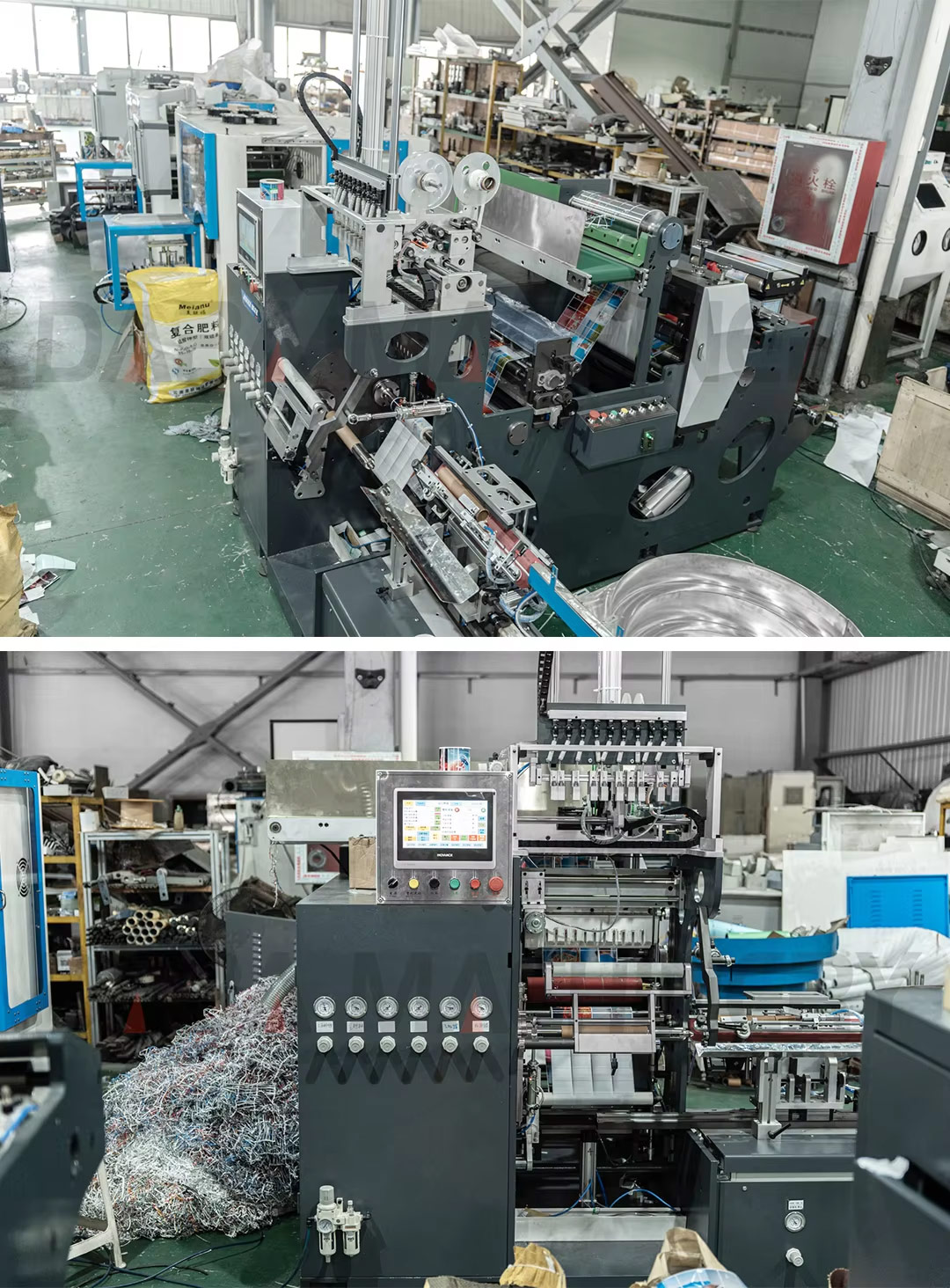

Factory Workshop
