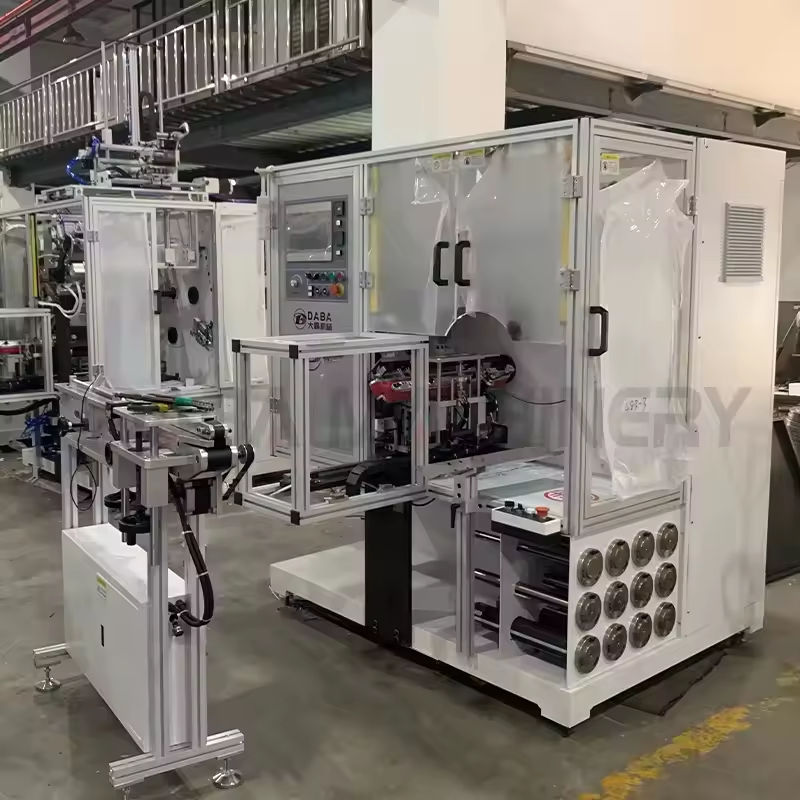

Brand Name : DABA
Model Number : DBDG-4A 330
Application : Printed labels and blank labels rewinding
Max rewinding diameter : 350mm
Max width: 330mm
Min rewinding width : 40mm
Max speed : 1-inch rewinding shaft : 90m/min
Air pressure : 0.8MPA
Total power ：8kw
Weight : 2.0T

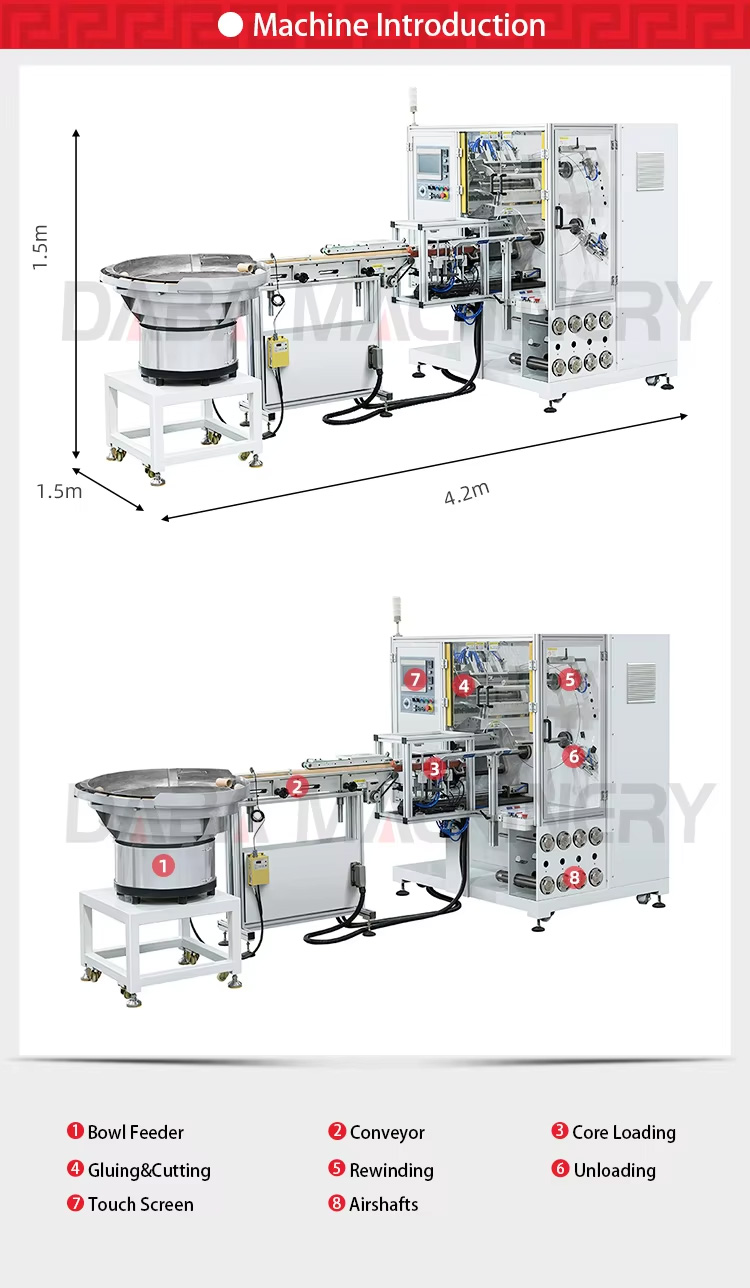

Machine dimension : 1.45X3X1.7m
Main Features

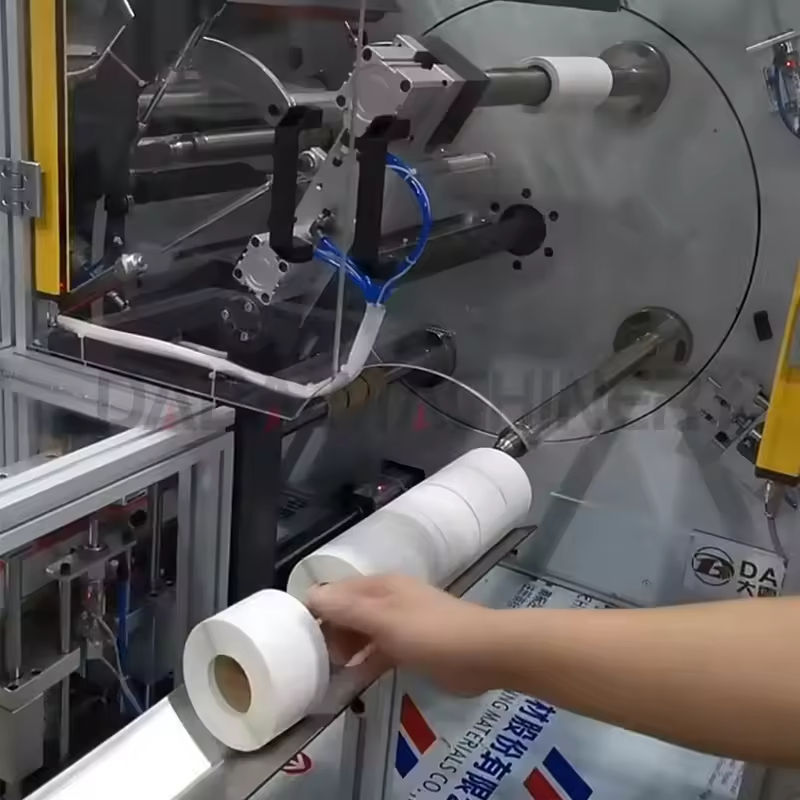

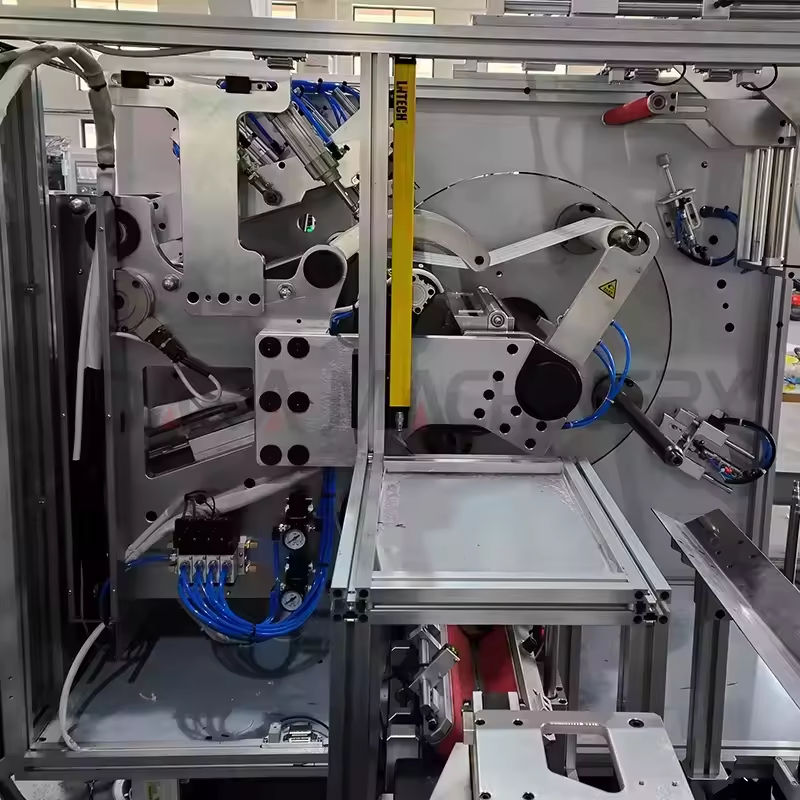

1. Fully automatic 4-shaft turret type non-stop rewinder, the rate of achieving paper success is up to 100%. And it ensures that the tension stability of equipment in the production stage regardless of the jog, speed increase, speed reduction, emergency, to realize the best condition of the printing machine.

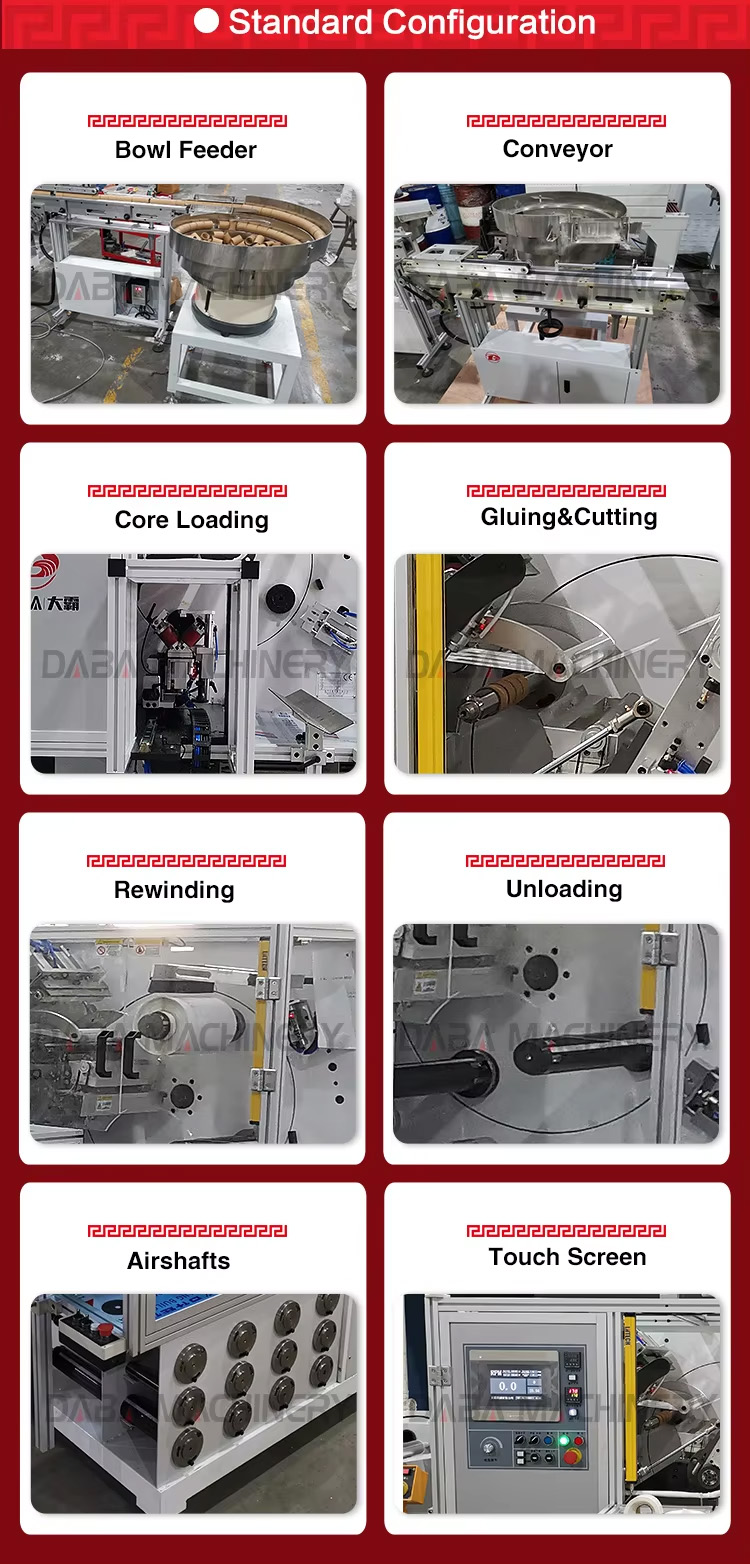

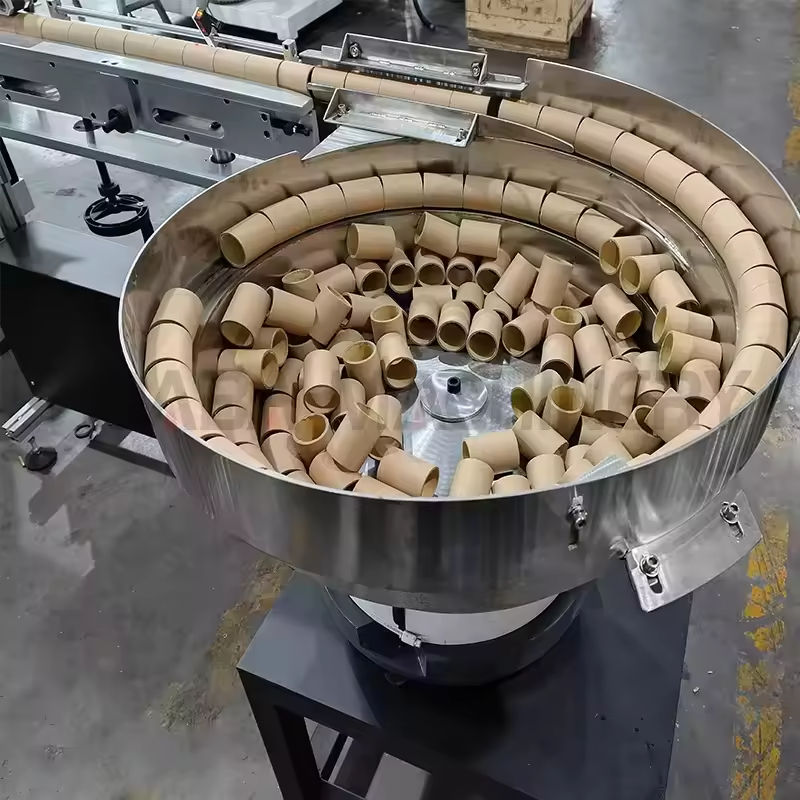

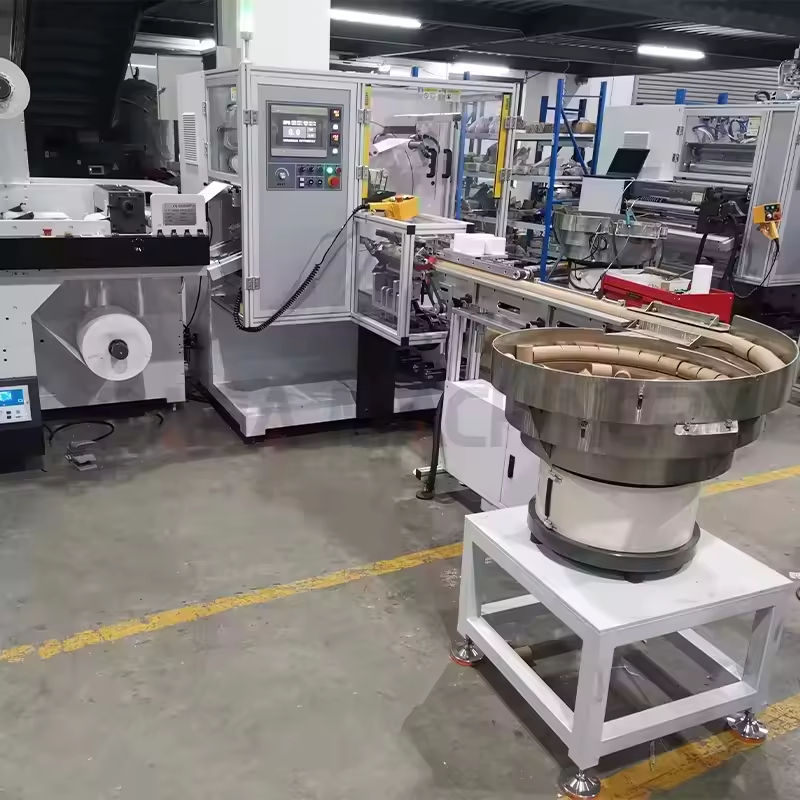

2. The system adopts the world-famous brand Bosch Rexroth, which provides intelligent production solutions. It adopts full servo closed-loop tension control and equips with a bowl feeder, conveyor, to realize online non-stop rewinding.

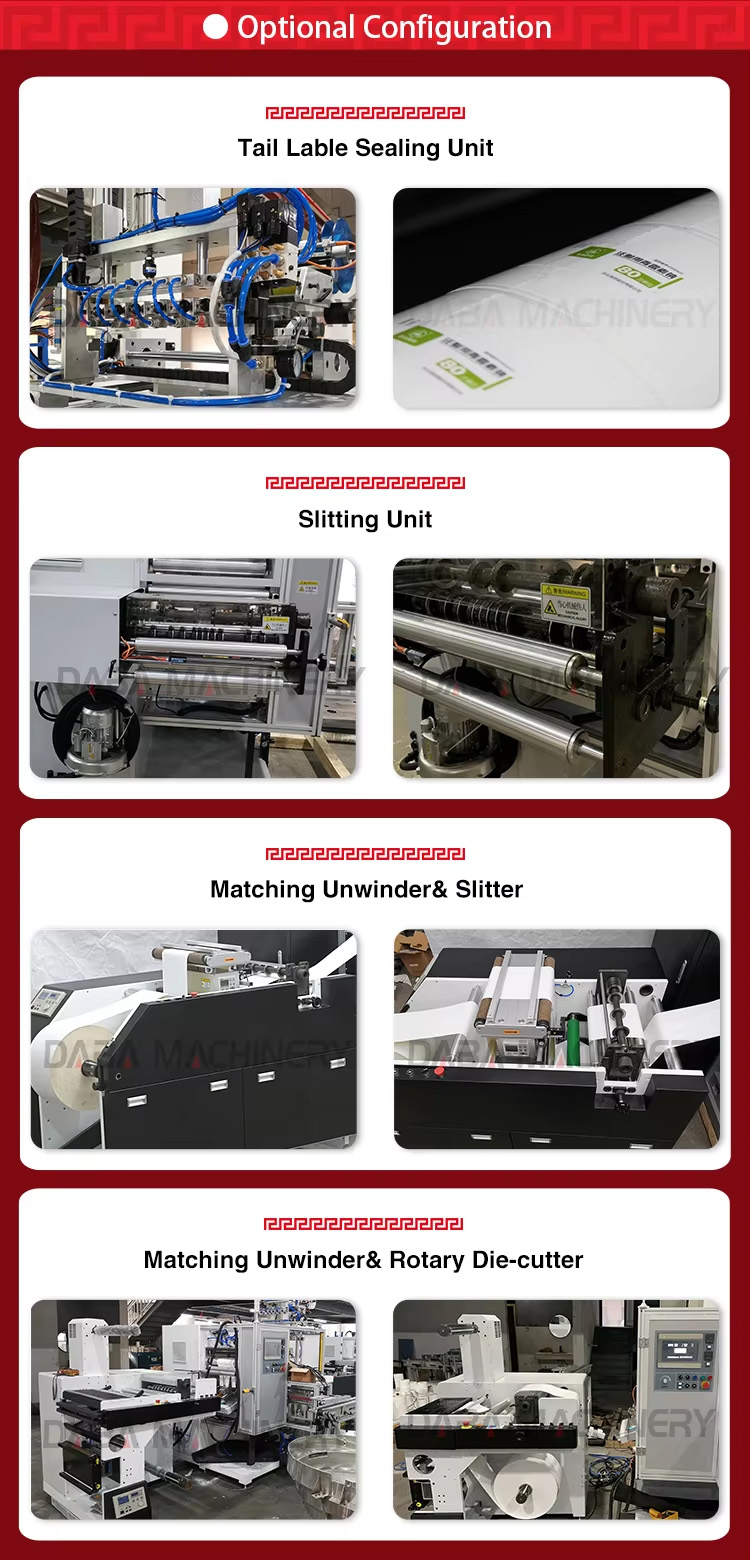

3. The rewinder can be connected to rotary die cutting, slitting machines, flexographic printing machines, and other equipment. It is equipped with a 1-inch 1.5-inch 3-inch quick-release airshaft. The rewinder does not require manual mechanical adjustment when changing the size of different shafts, its system automatically adjusts the size of the shafts to reduce the labor force for intelligent production.
