Brand Name : DABA
Model Number : DBMQ-370B
Max. Web Width : 380mm
Max. Die cutting width : 370mm
Max. Slitting speed : 300mm
Max. Die cutting speed : 200m/min (water based label material)

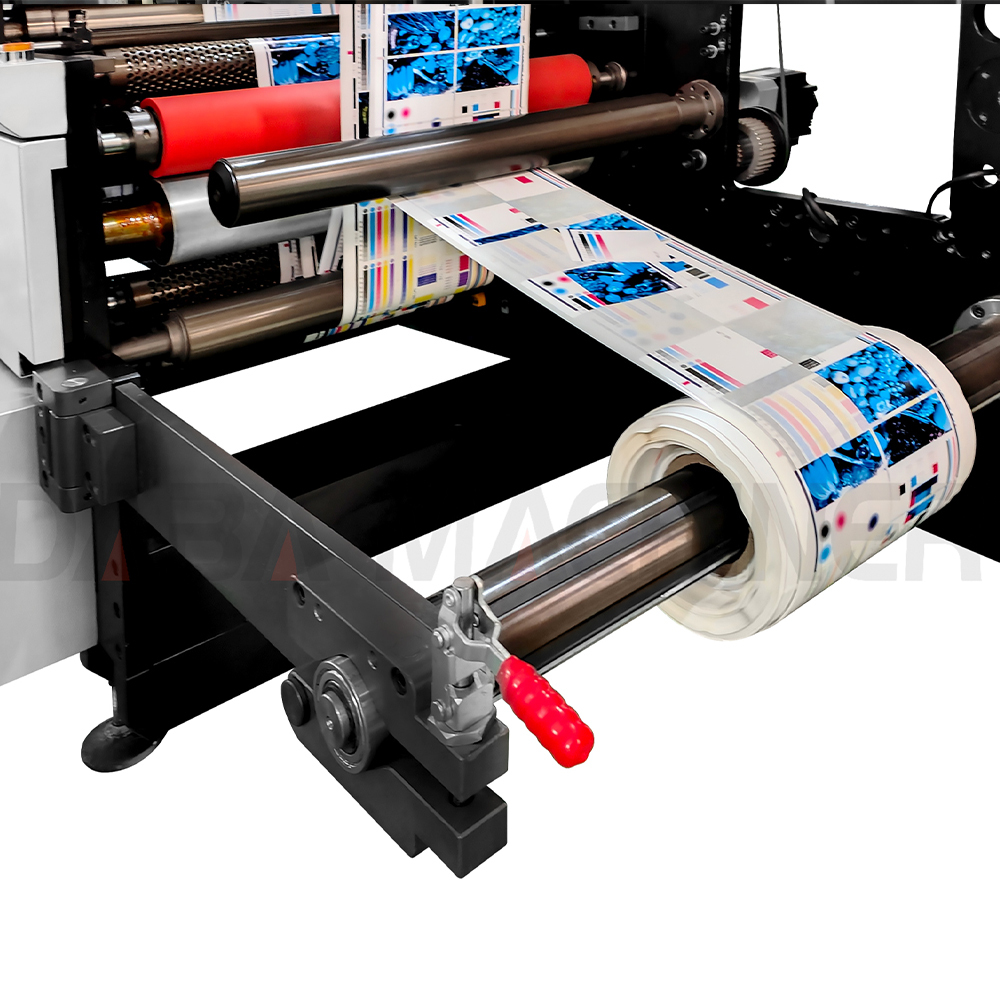

Max. Unwinding Diameter : 800mm
Max. Up Turret Rewinding Diameter : 280mm
Max. Down rewinding Dia. : 800mm
Rotary Die Cutting Repeat : 178mm~580mm
Die Cutting Precision : +0.15mm

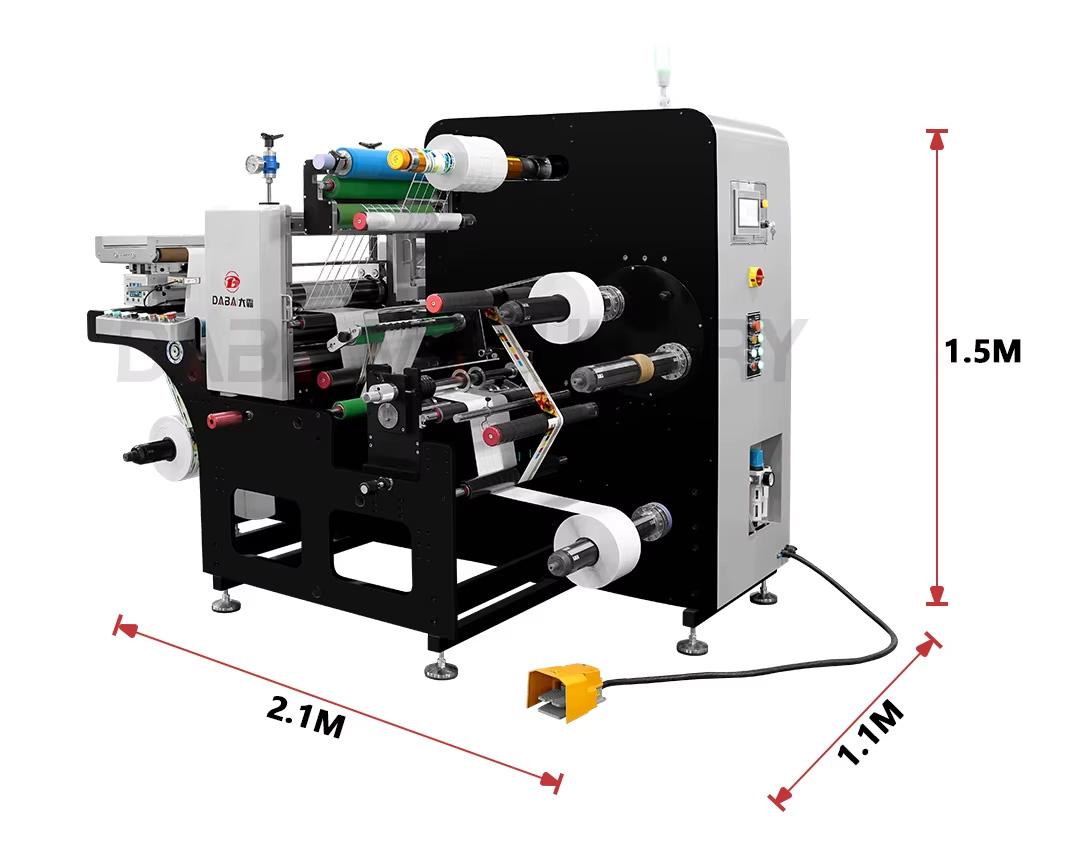

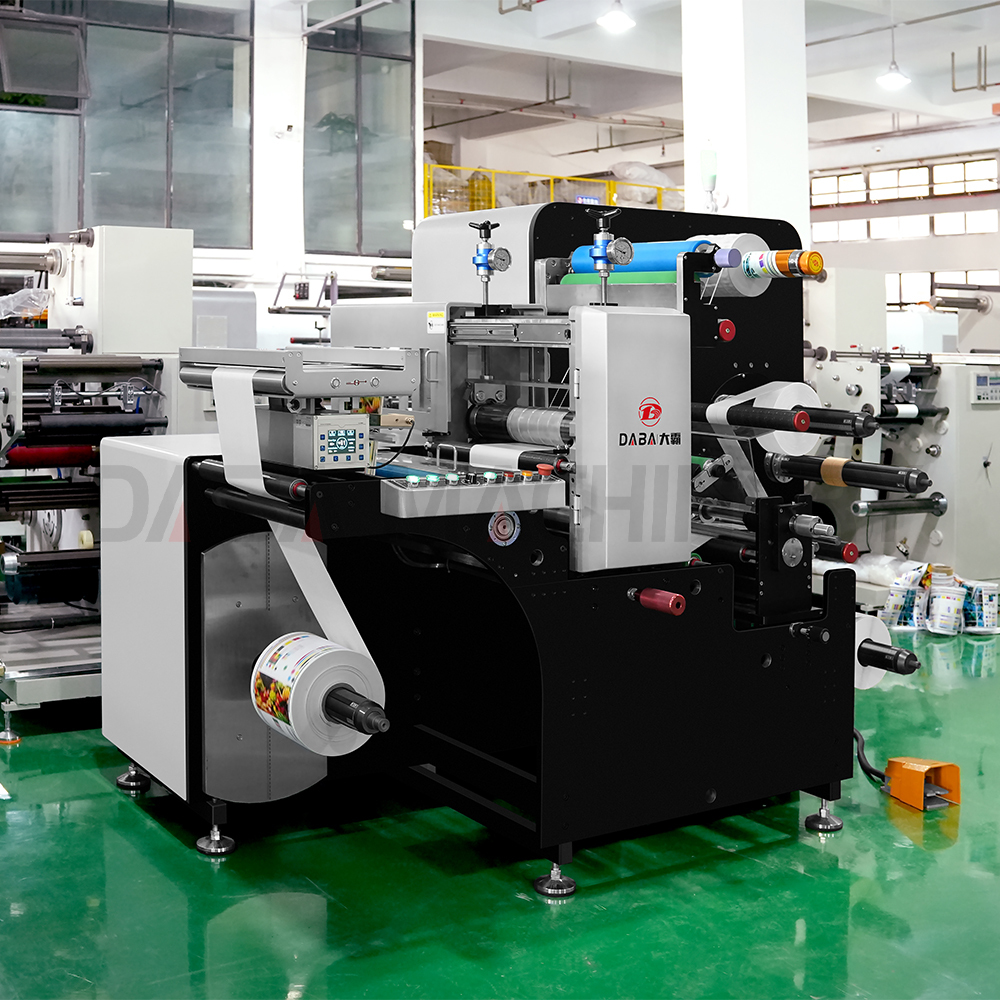

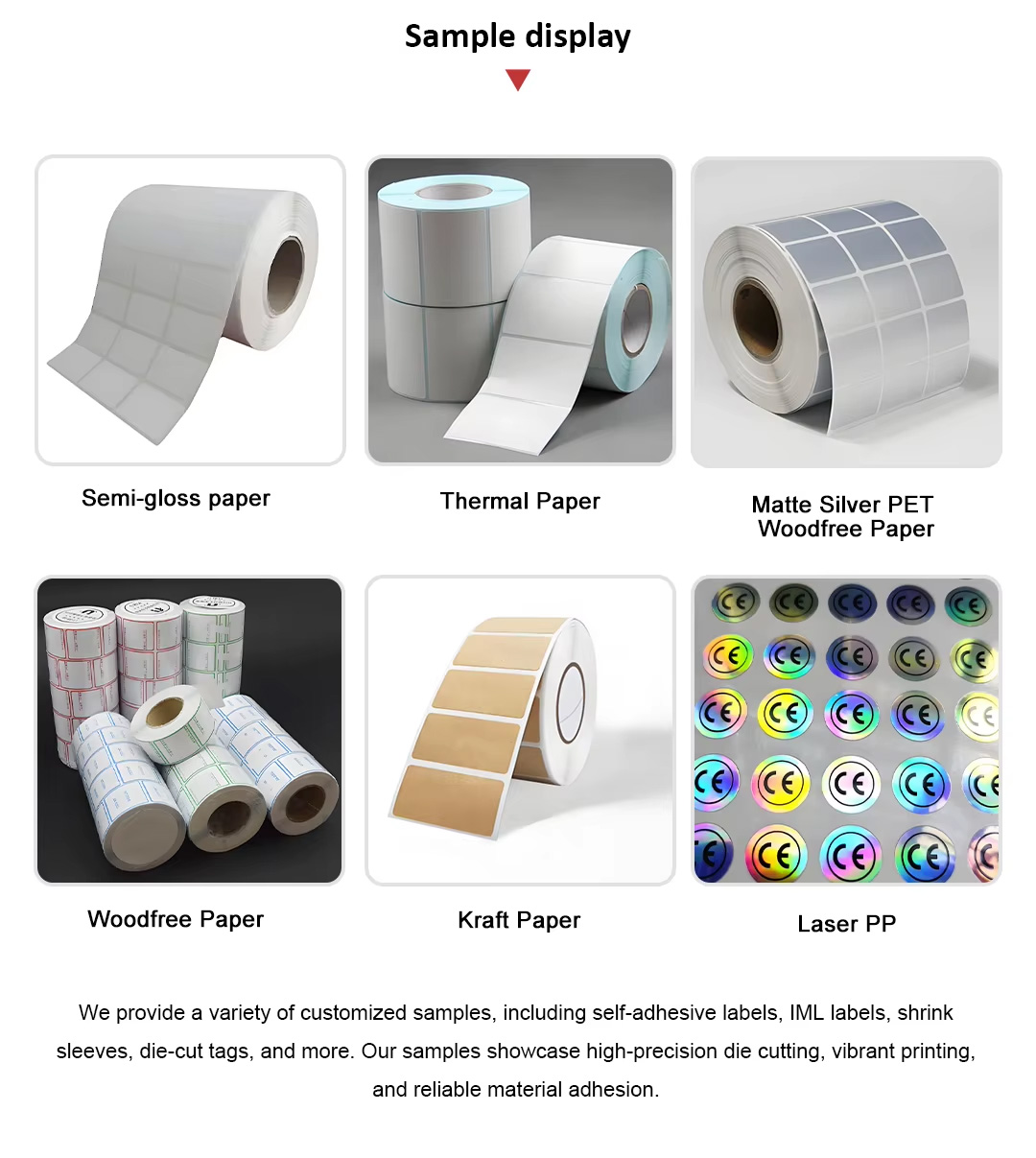

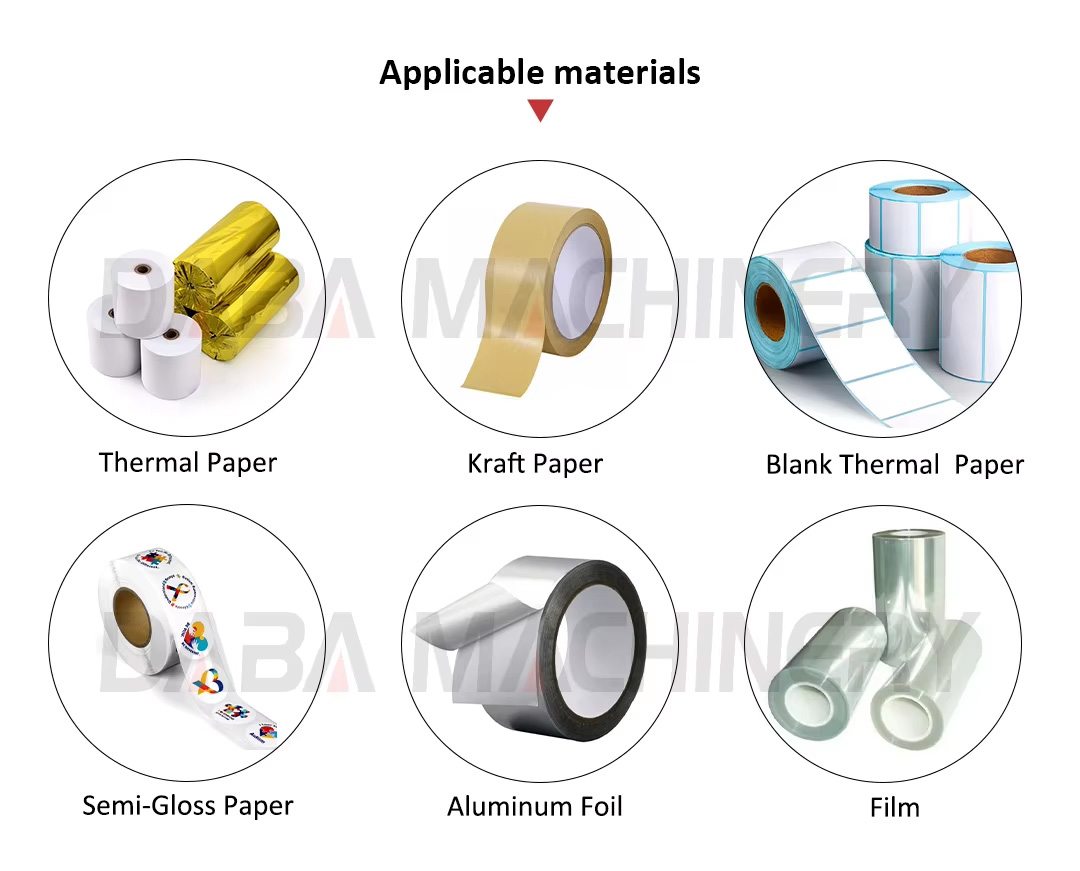

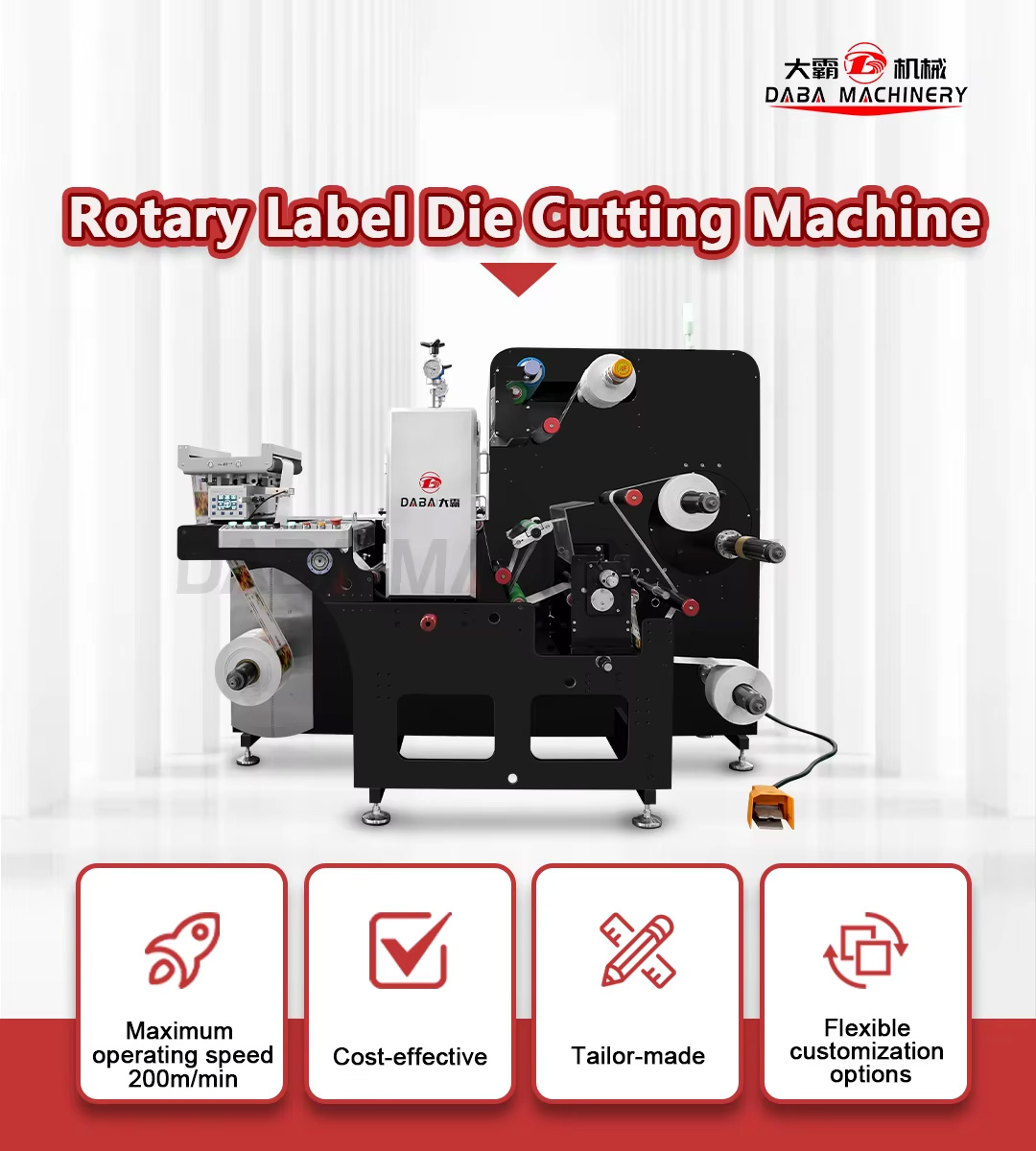

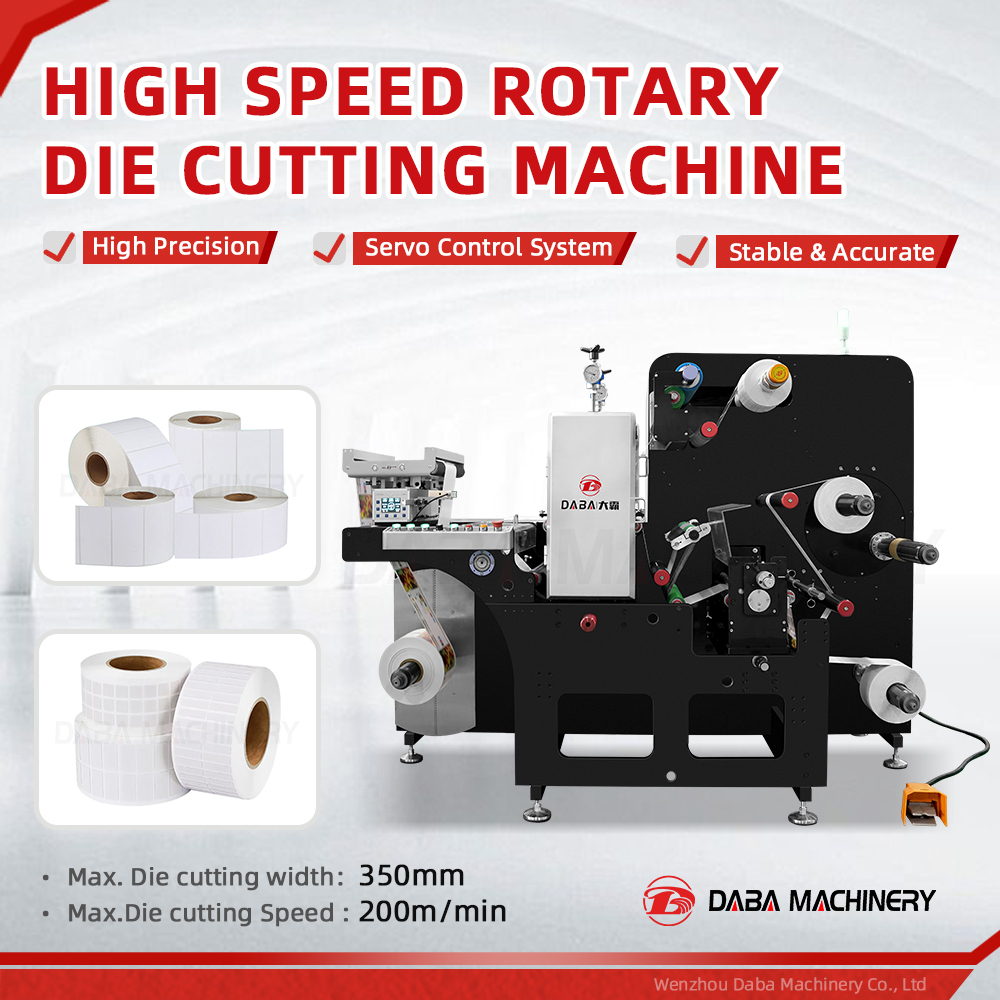

DBMQ-320/370plus Type Rotary Die Cutting Machine is mainly designed for label die cutting, e.g. Adhesive labels, PVC labels, PET Labels, PE Labels, Aluminum Labels, Blank Labels, Trade mark Labels die cutting. Especially, It can process IML(In Molding Label),which is famous as its advanced function, such as: Novel and beautiful apperance, security features, Envirement, Difficult to drop off and damage, High efficiency and so on. IML is widly choosed on packaging containers of Health & Beauty, Food & Beverage, Wine& Spirits.

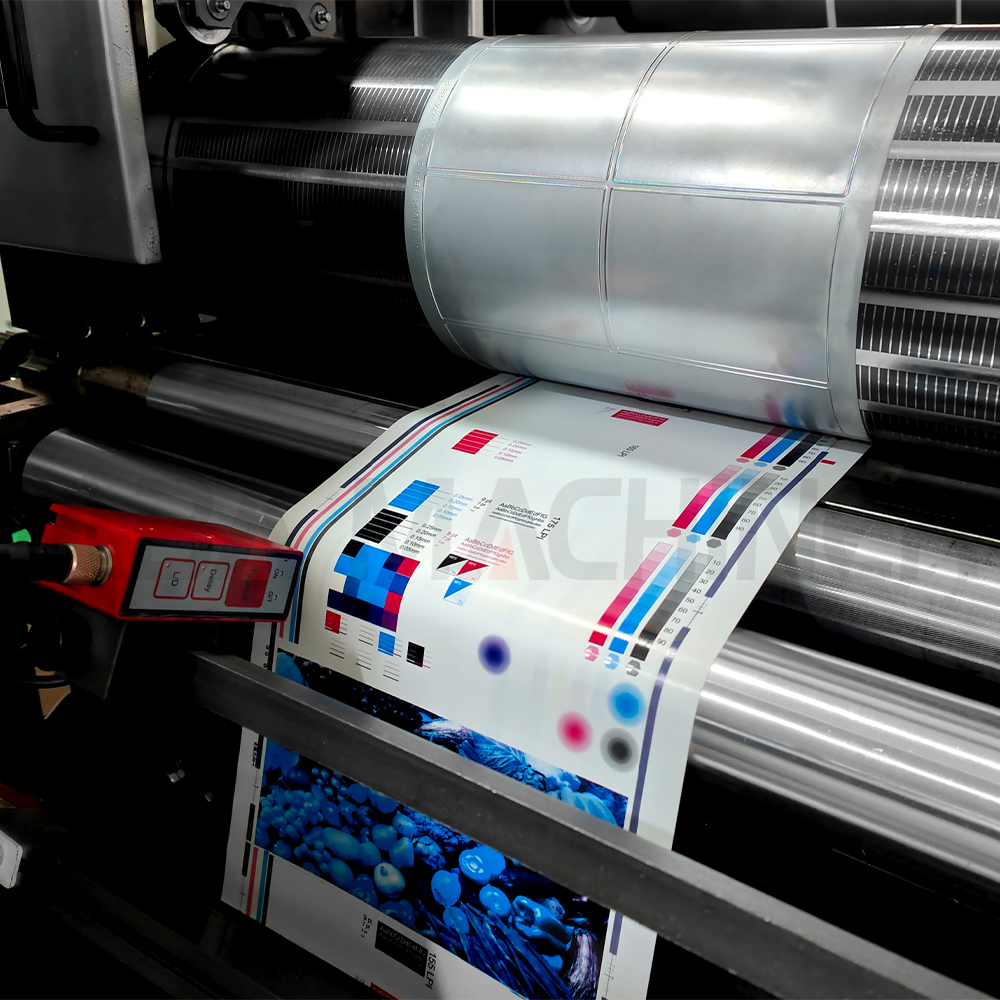

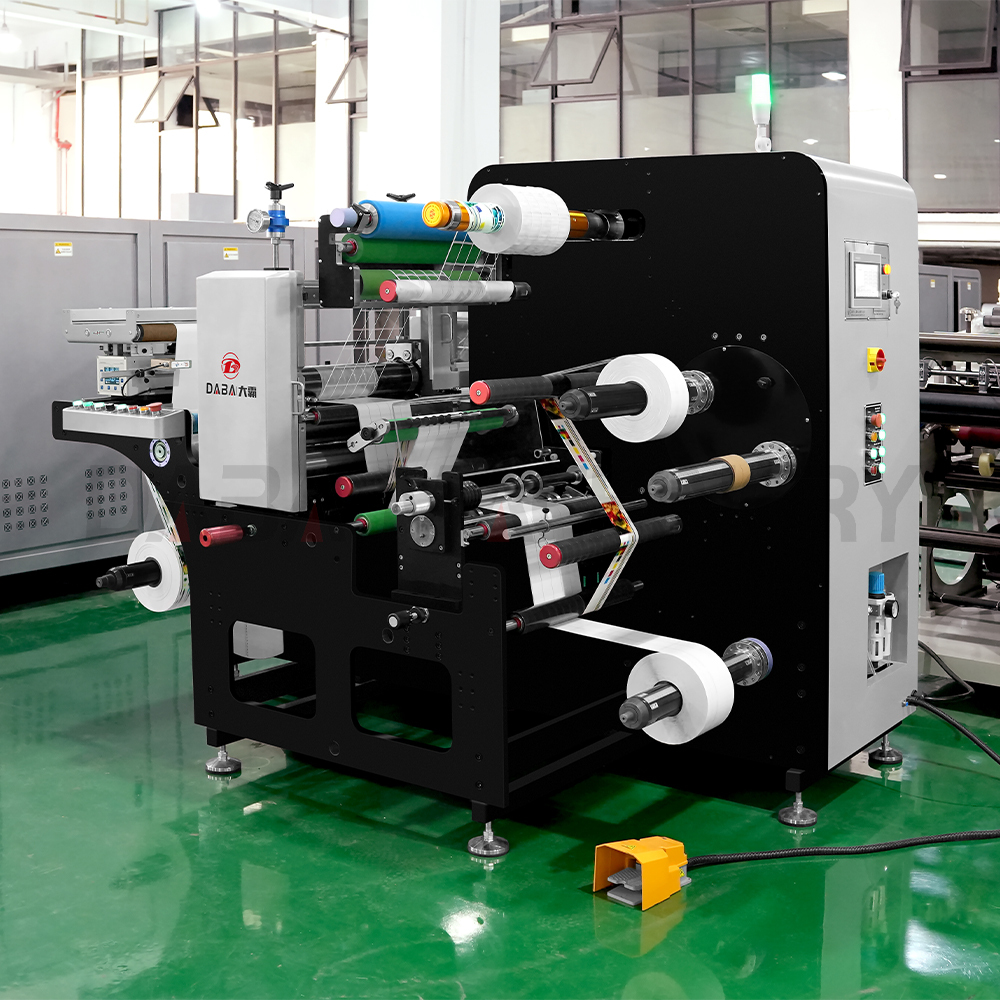

> Machine runs full rotary mode, equipped with conveyor and collection table.

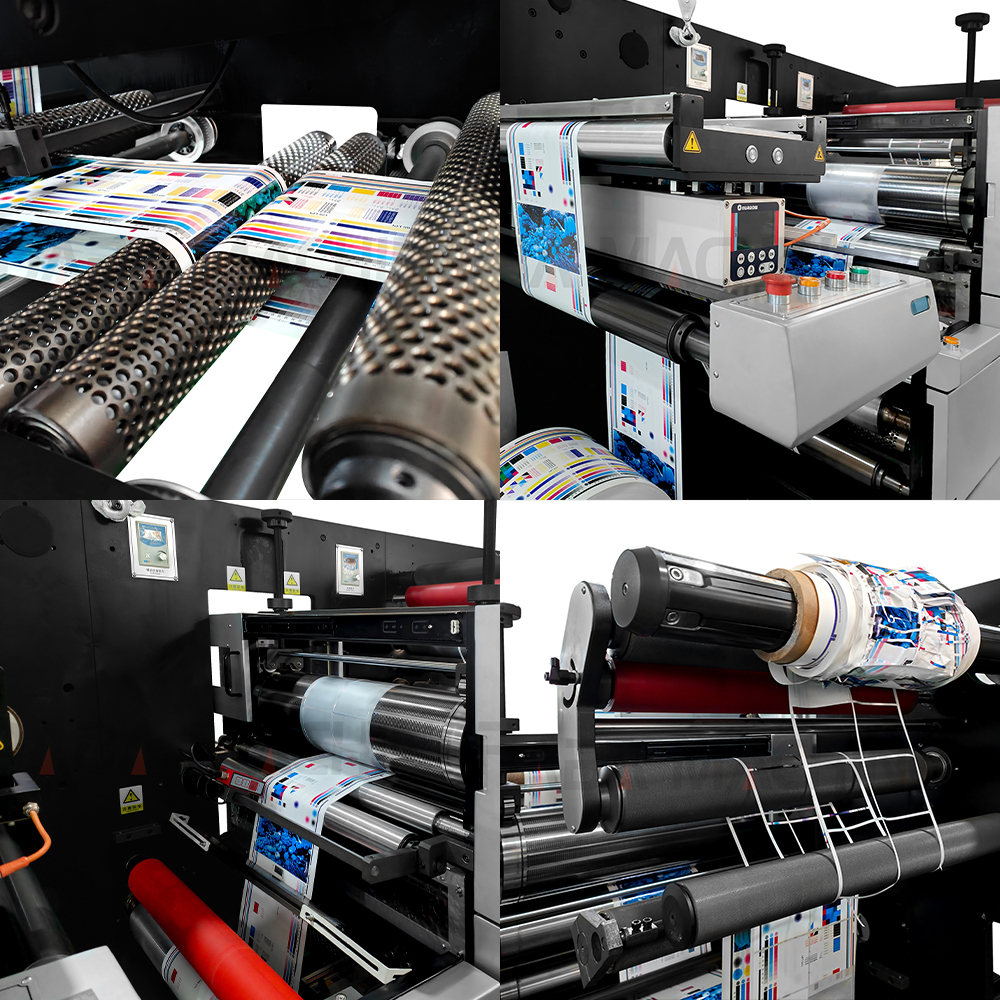

> It's also suitable for labels lamination,die-cutting, waste matrix and rewinding.

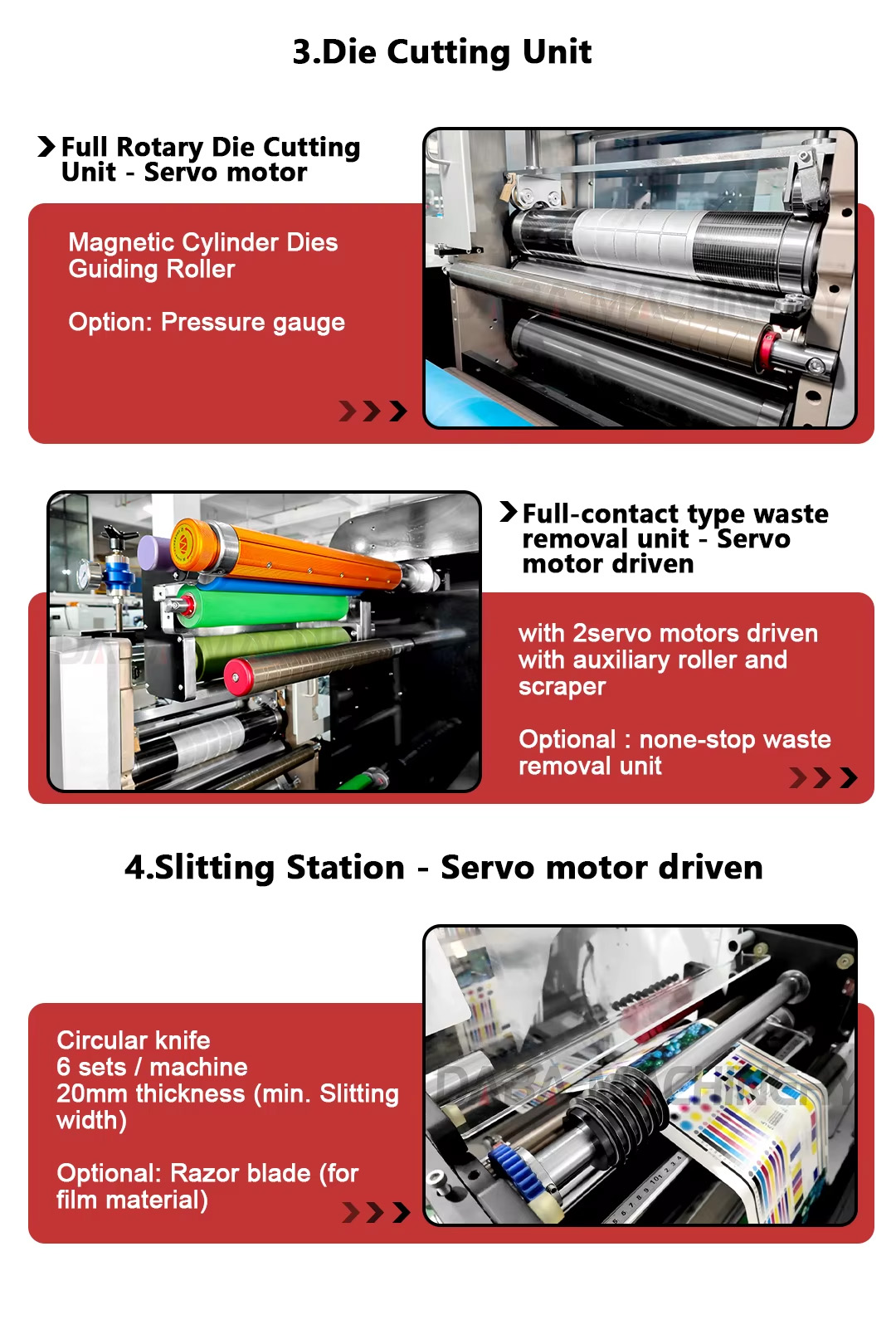

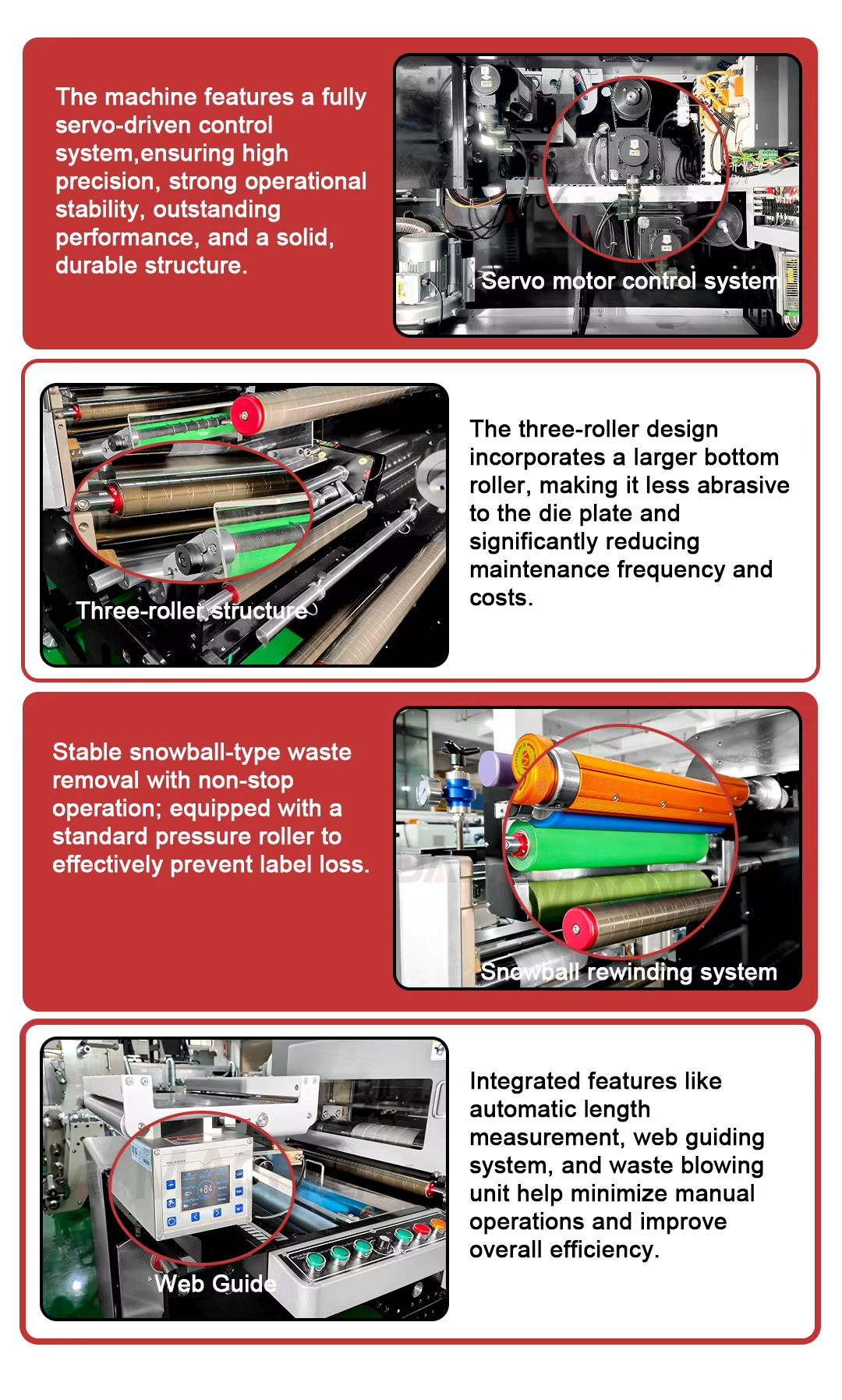

> Machine adopts full servo motors driven, re-register system, solid and durable structure design, leading to clean edge of processed materials and non damage of both sides of labels.

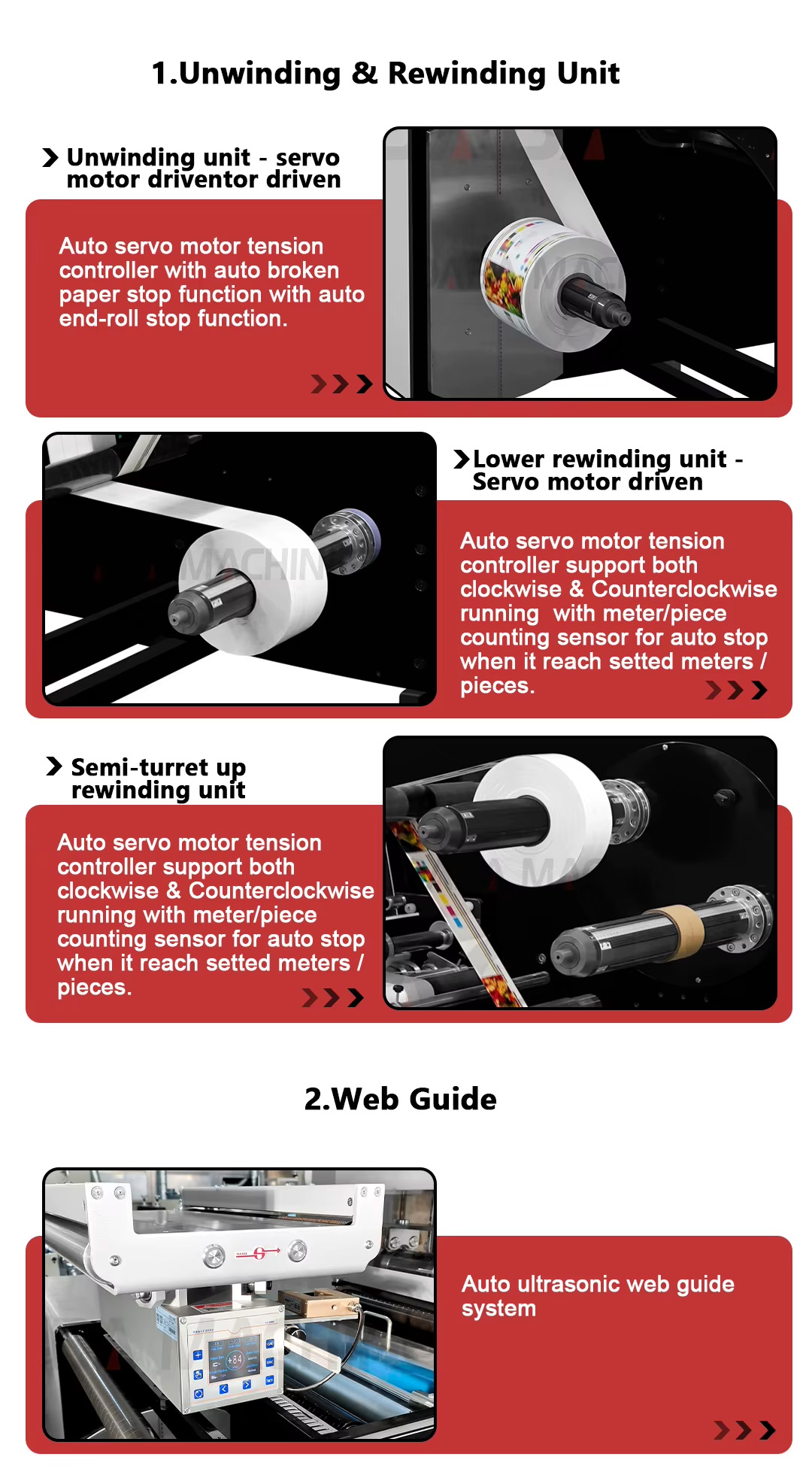

Configuration Details
