Brand Name : DABA
Model Number : DBMQ-R350M
Max.Web Width : 350mm
Die cutting length : 178-470mm(7"-18,5")
Max.Speed : 220 m/min
Max.Unwinding Dia : 800 mm
Max.Turret Rewinding Dia : 140 mm
Voltage : 380v,3phase
Overall Diameter : 2300-1200*3000
Machine Weight : 2000 kg
Total power : 9kw
Accuracy ： ± 0.10 mm

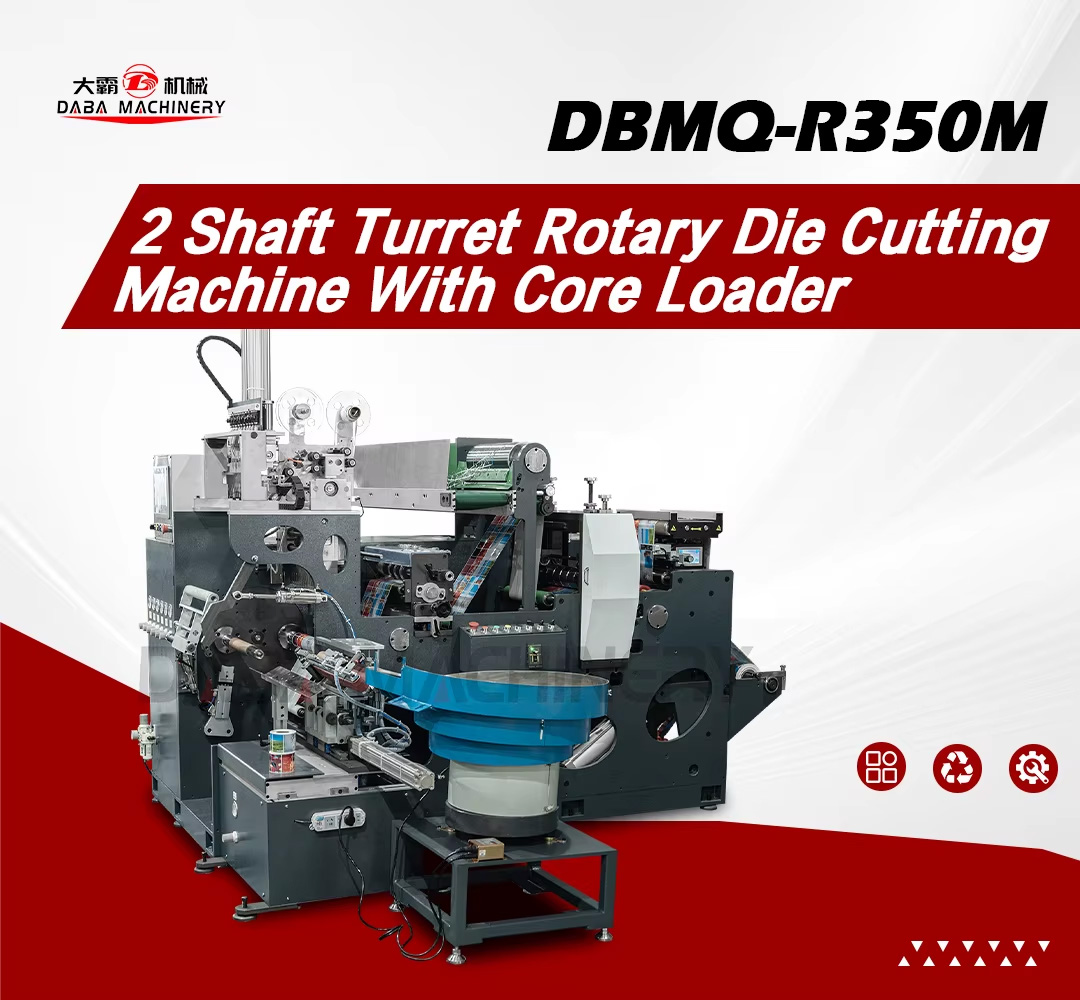

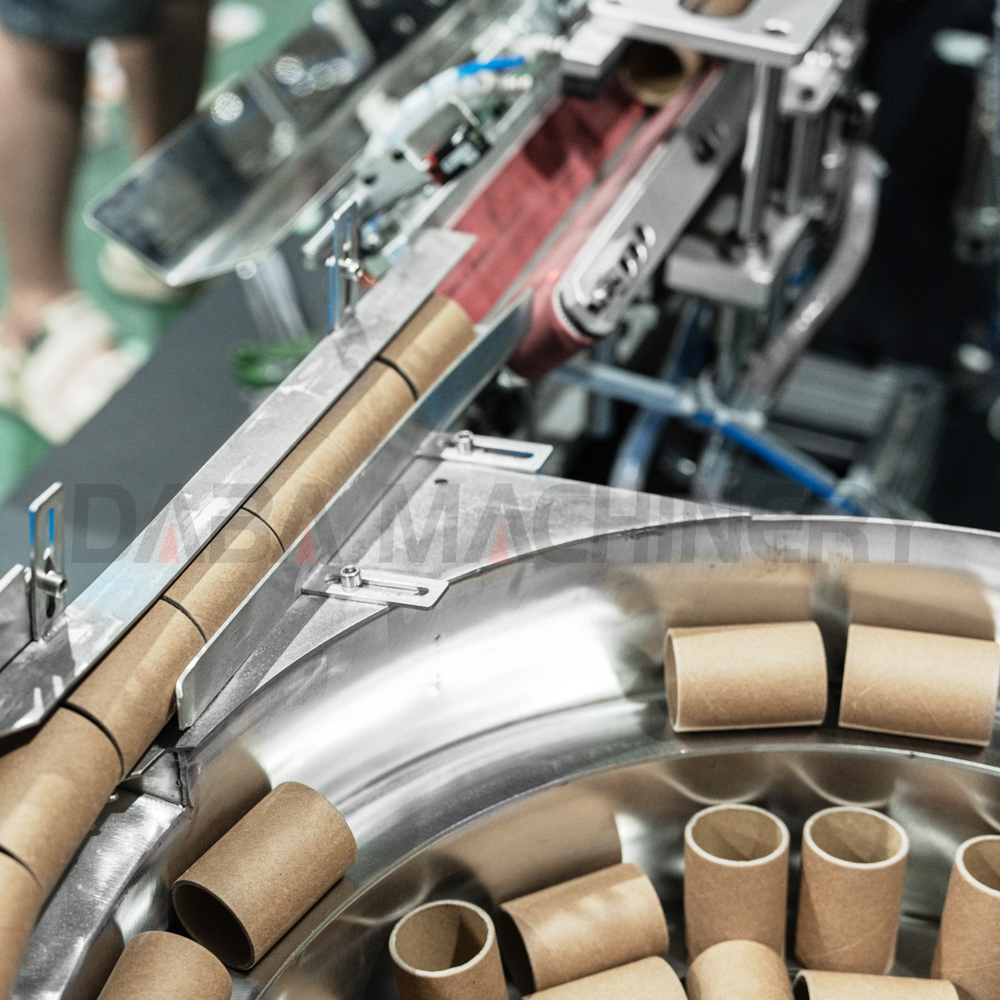

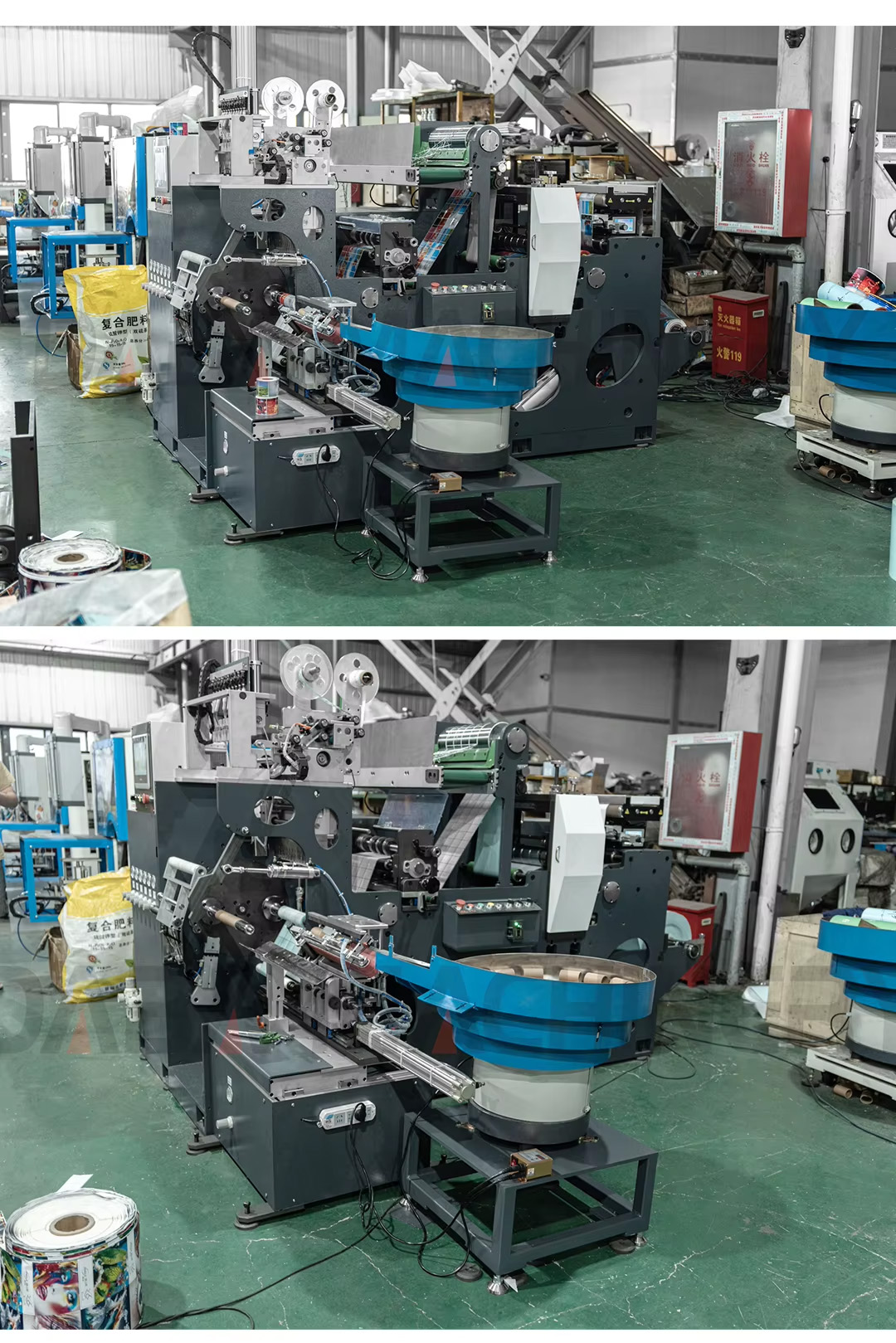

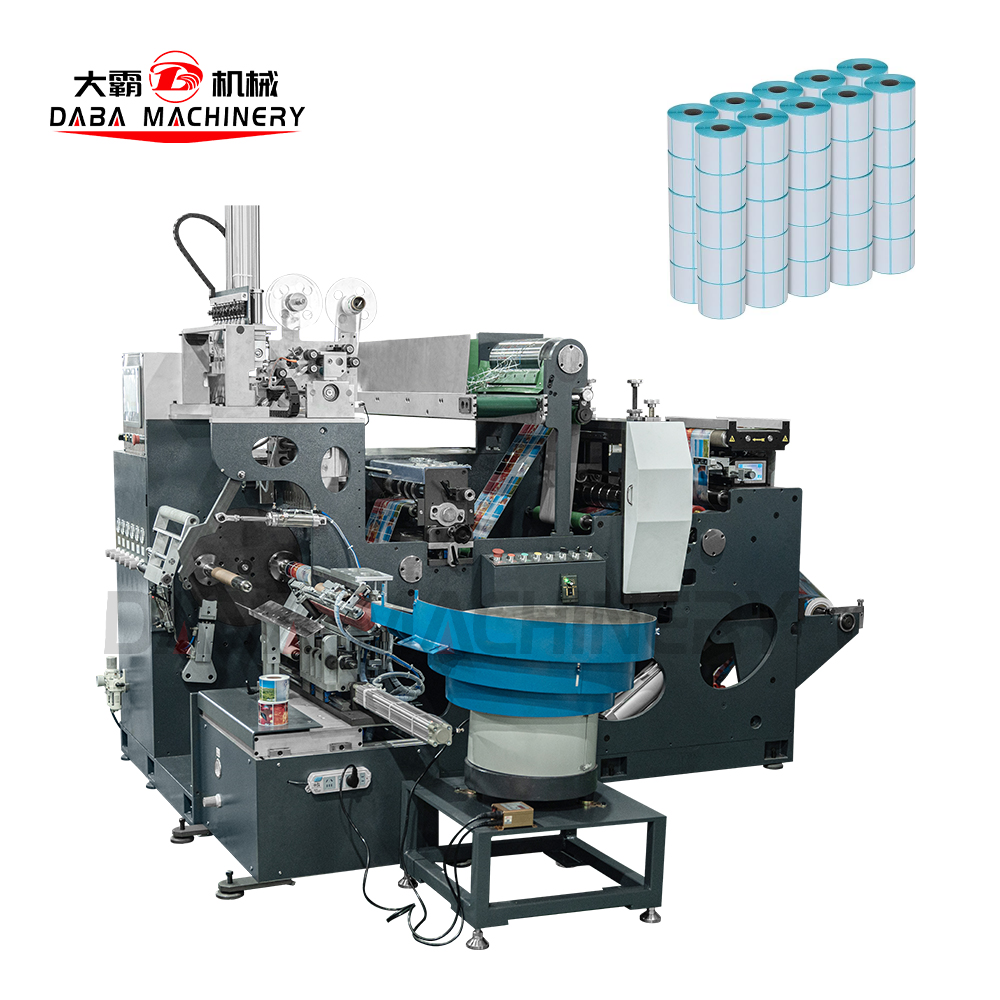

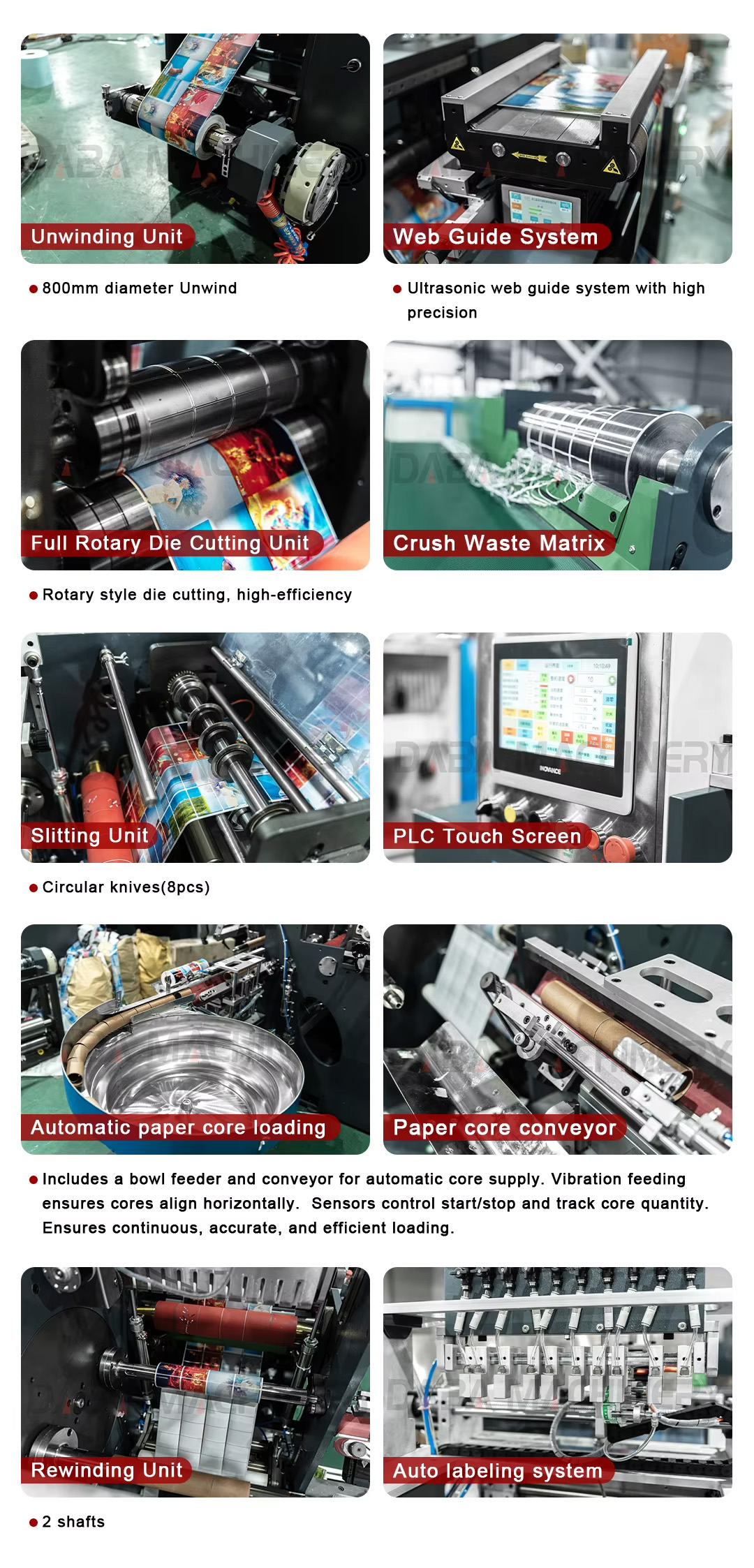

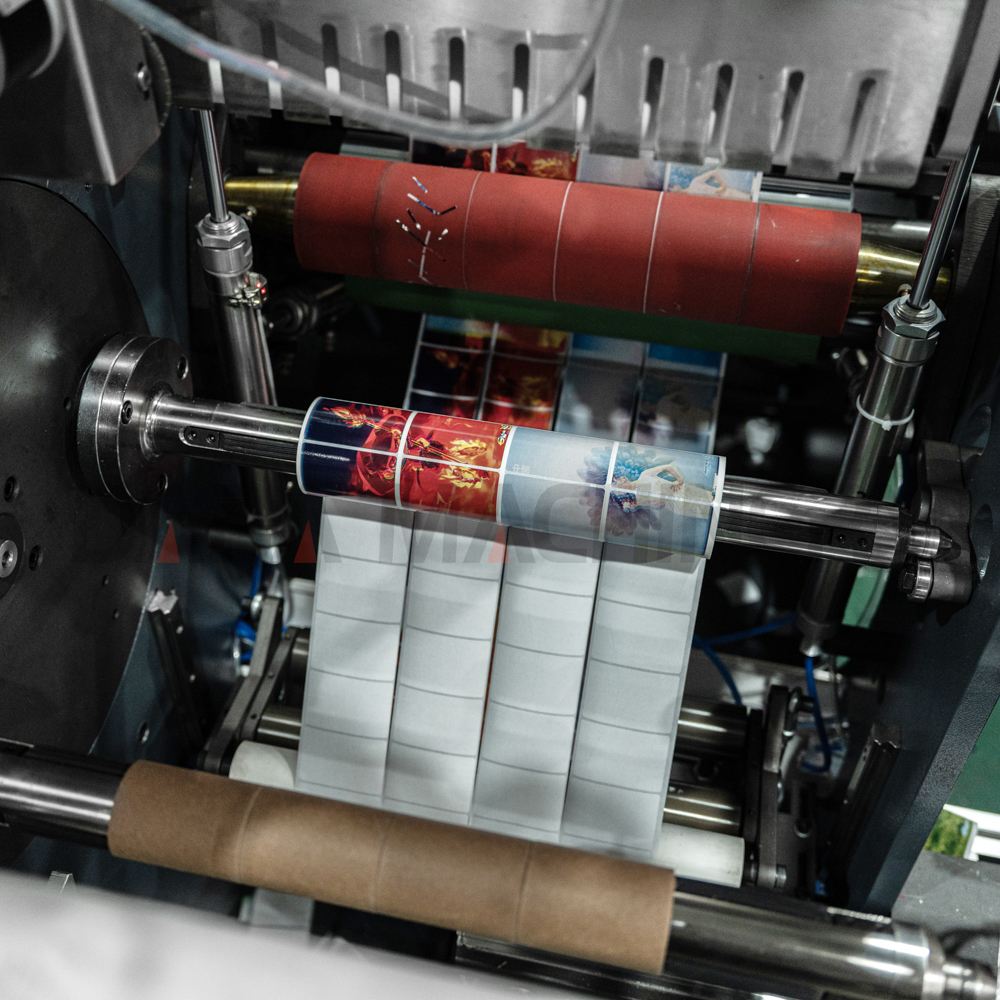

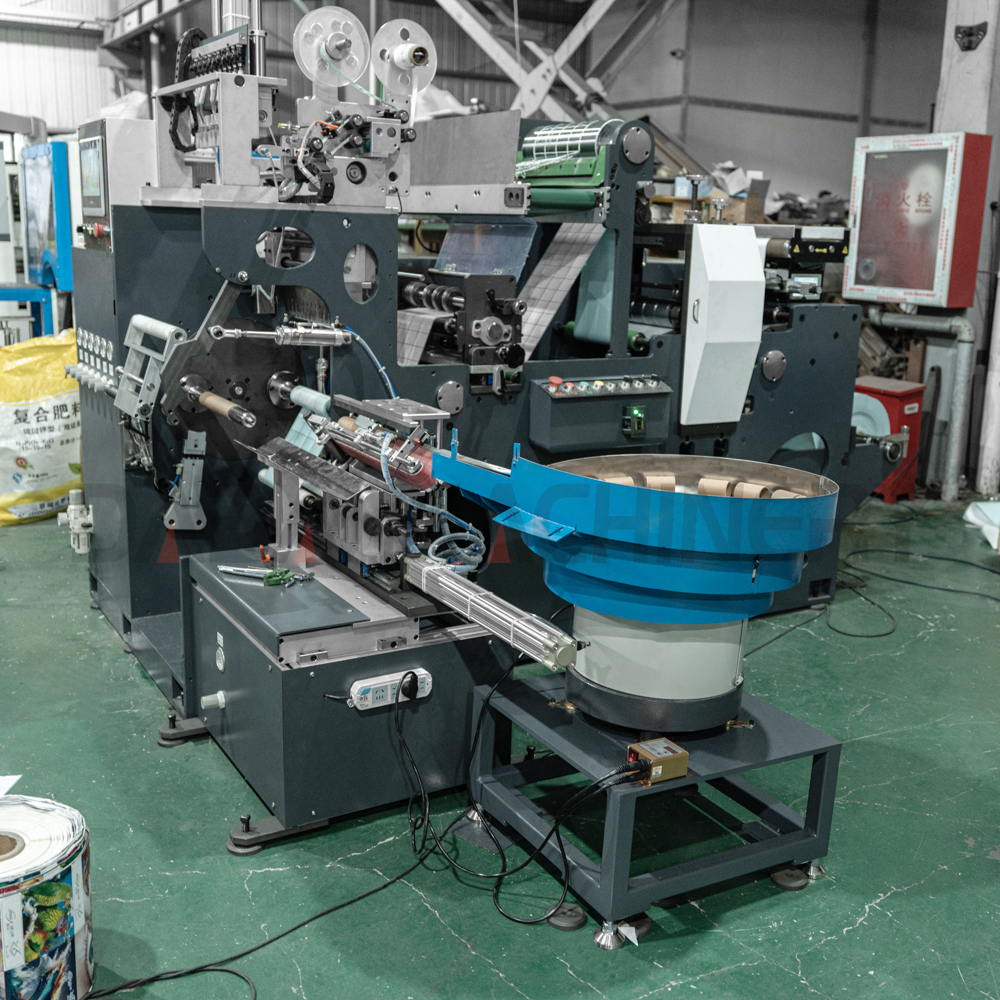

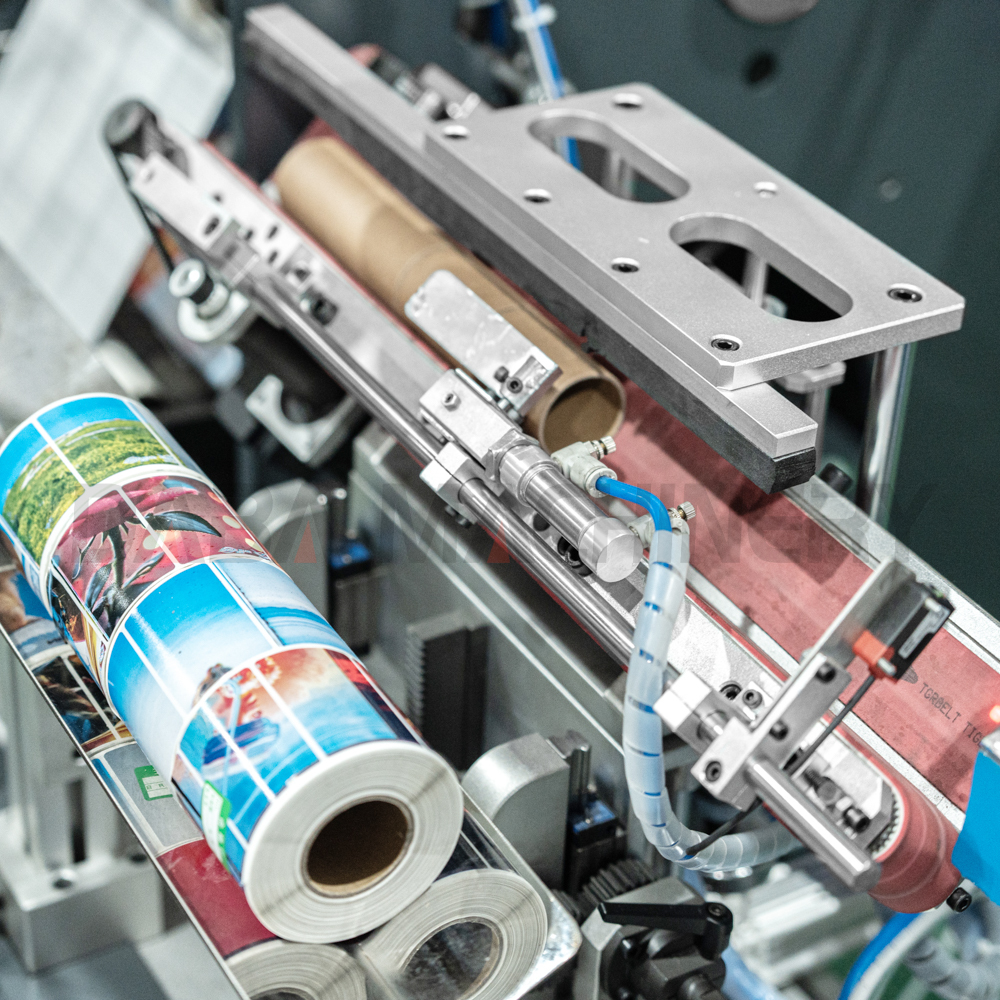

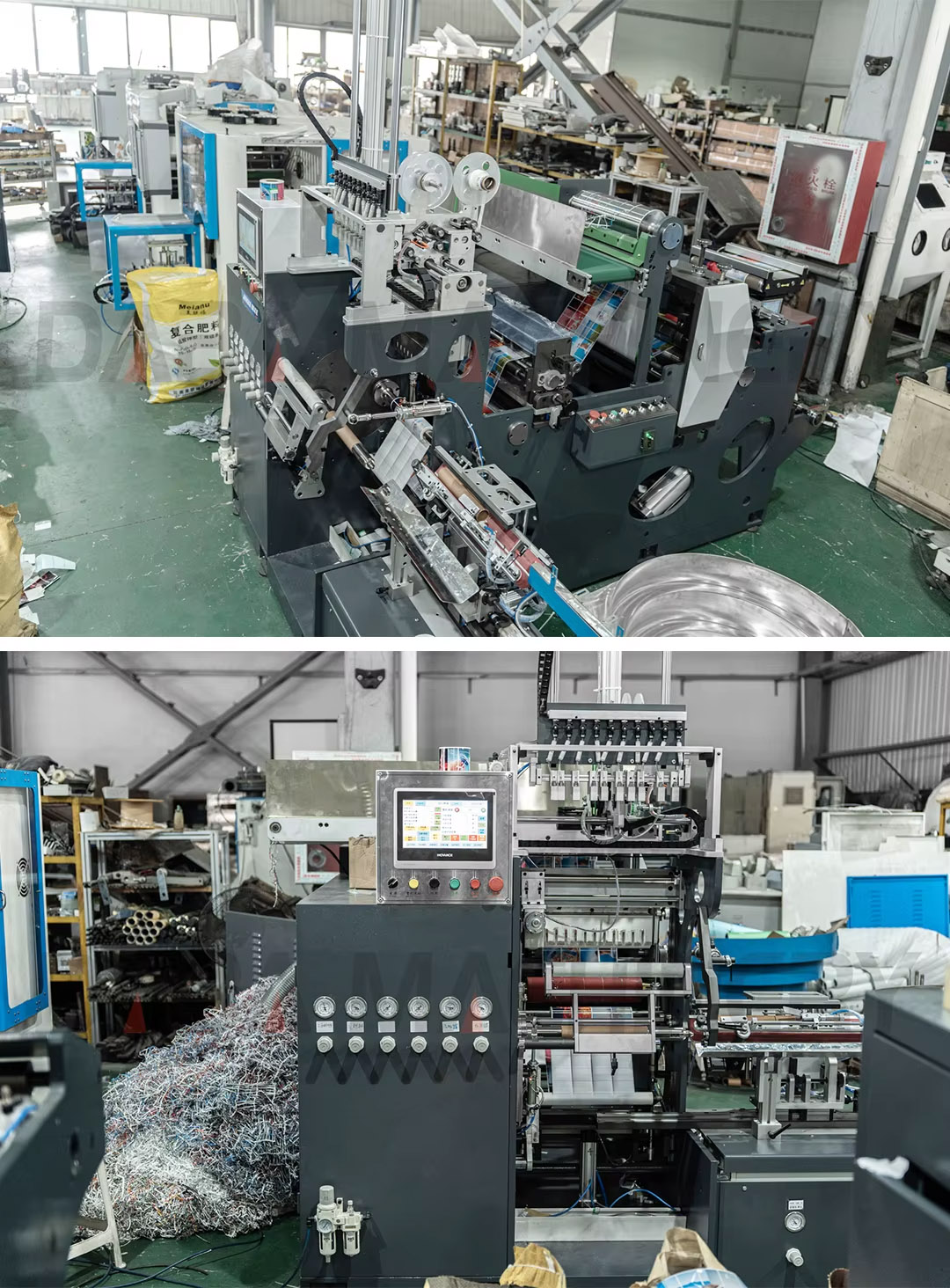

DBMQ-R350M full auto Turret Rewinder is designed with 2 air shafts to improve producing efficiency and saving the cost of workers.This machine is mainly used for adhesive label production, This machine run at 200m per min, it adopt inovance servo motor system. It have pneumatic upload, auto paper core feeding,gap cut, auto labeling, meter and number count and so on function. Total machine have 6 pcs servo motors.
Rotary die cutting station can be option.
