Brand Name : DABA
Model Number : DBGFQ-370
Slitting Speed ：350m/min
Max. Slitting Width : 350mm
Max Web Width : 370 mm
Max Unwinding Diameter : 800 mm
Max Rewinding Diameter : 800 mm

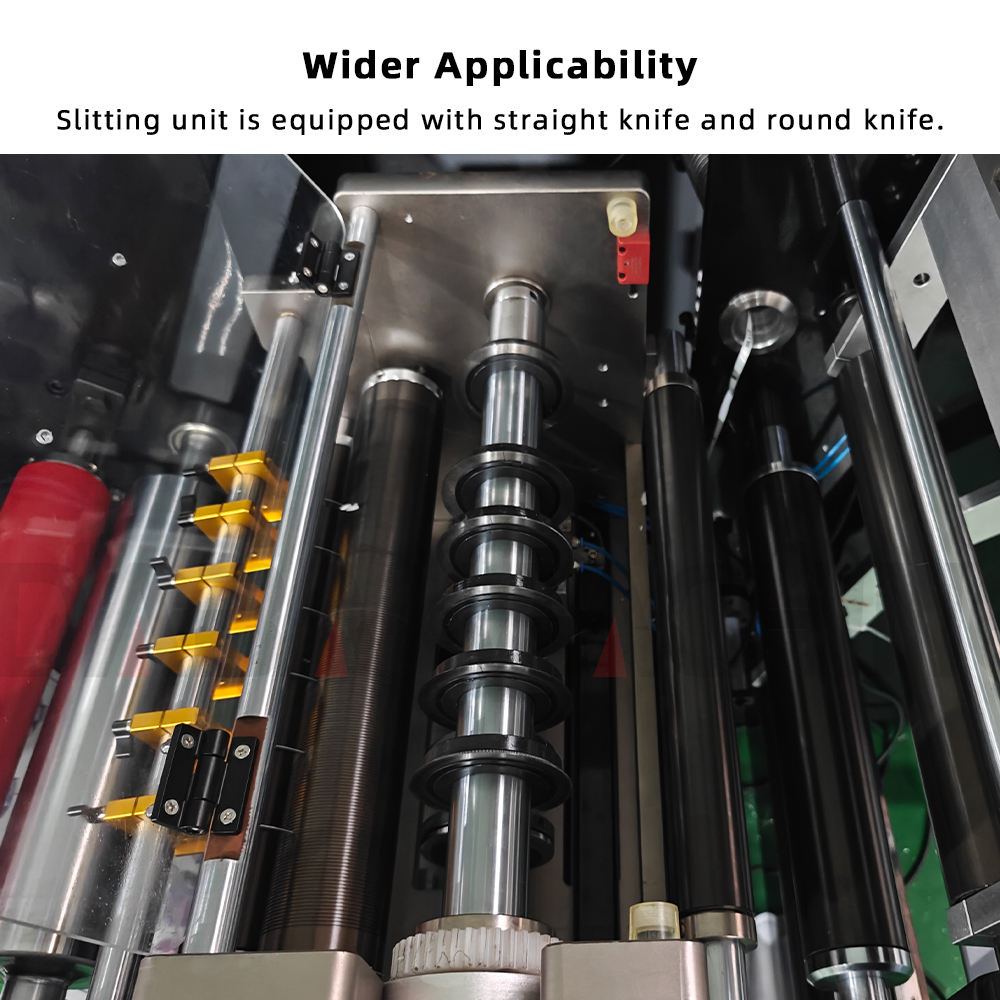

Slitting Knife (Up/Down) : each 6pcs / set
Dimension (L * W * H ) : 1300mm*960mm*1500mm
Material: Adhesive Paer, PP, BOPP, Aluminum
weight : 1300 kg
1. This machine is driven by servo motors, with a total of 6 servo controlled main workstations, which enables the machine to operate stably at high speeds and has a long service life.

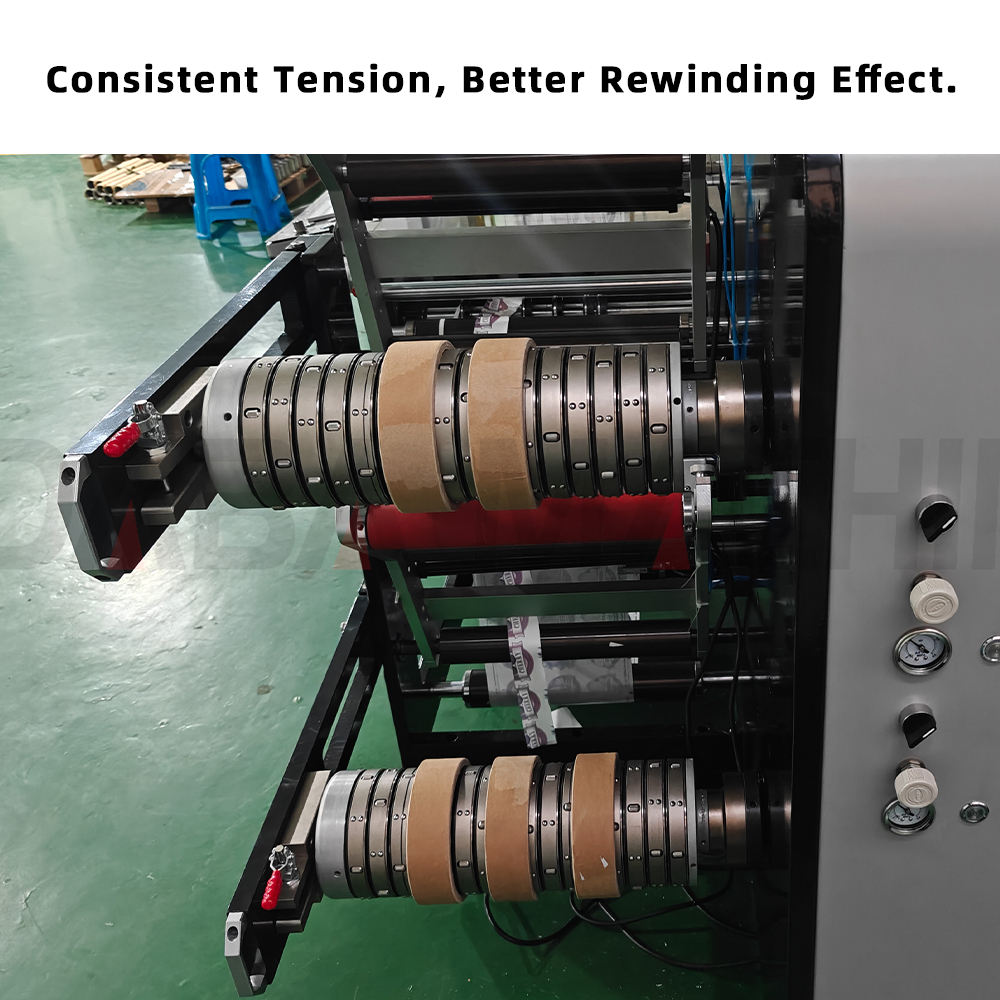

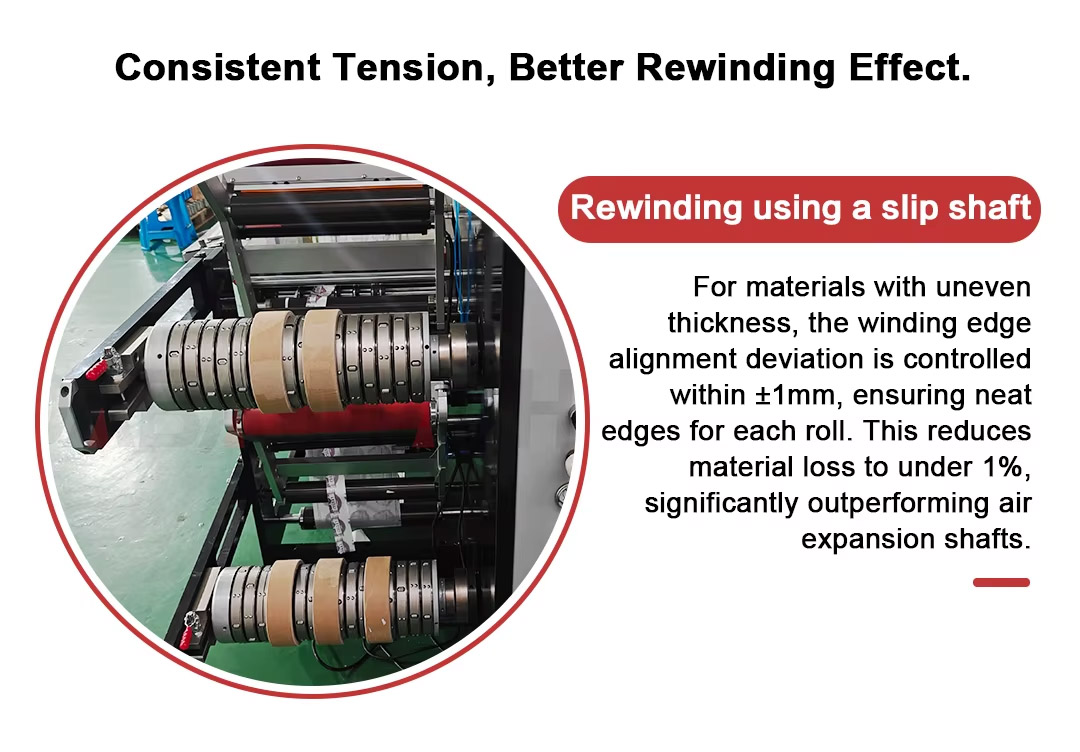

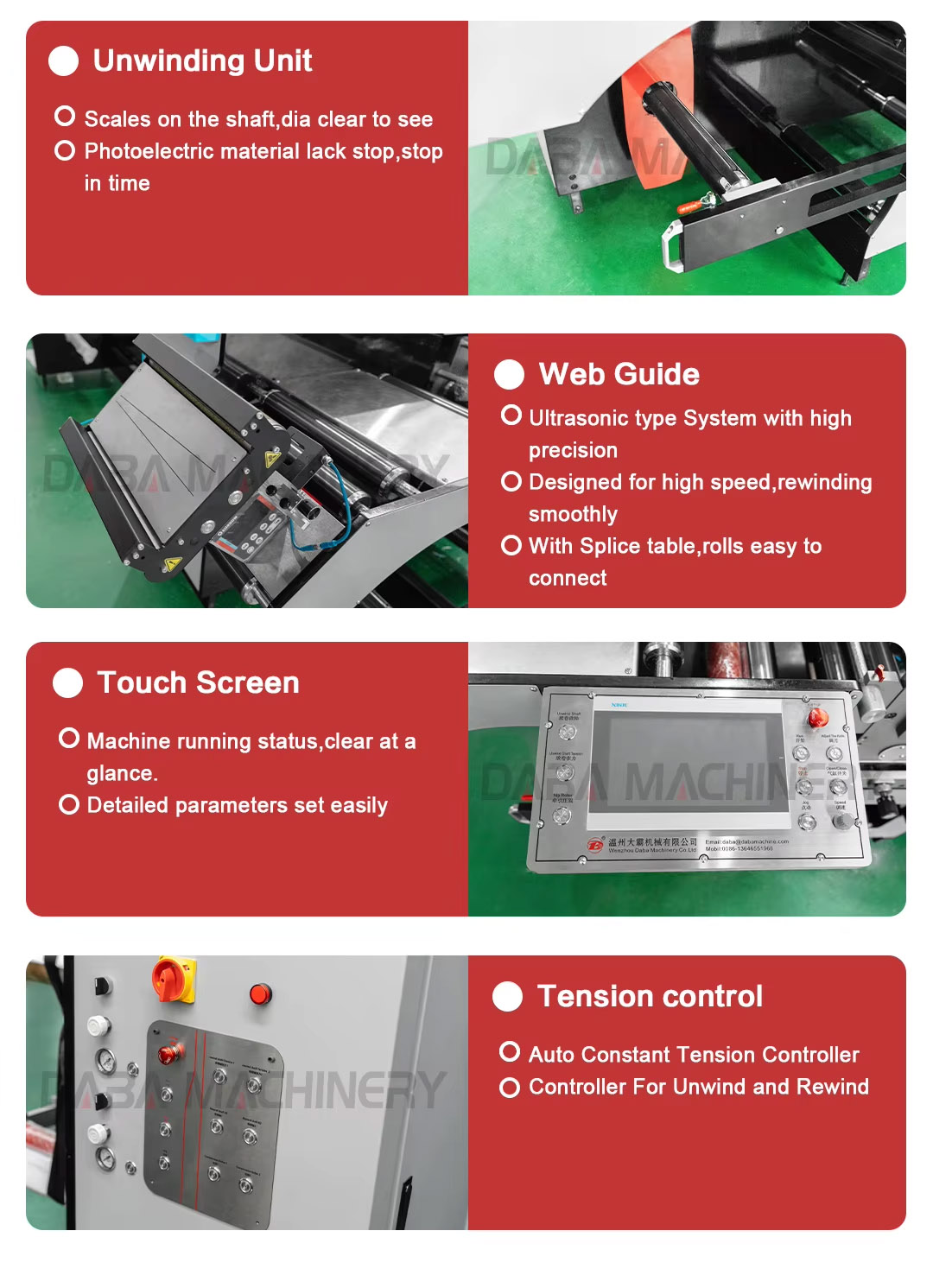

2. The tension control of unwinding unit and rewinding unit is adopt automatic tension control system; the control modes are tension feedback control and taper control.
3. This machine can slit various materials including paper, adhesive materials, films, aluminum foil and some special materials.

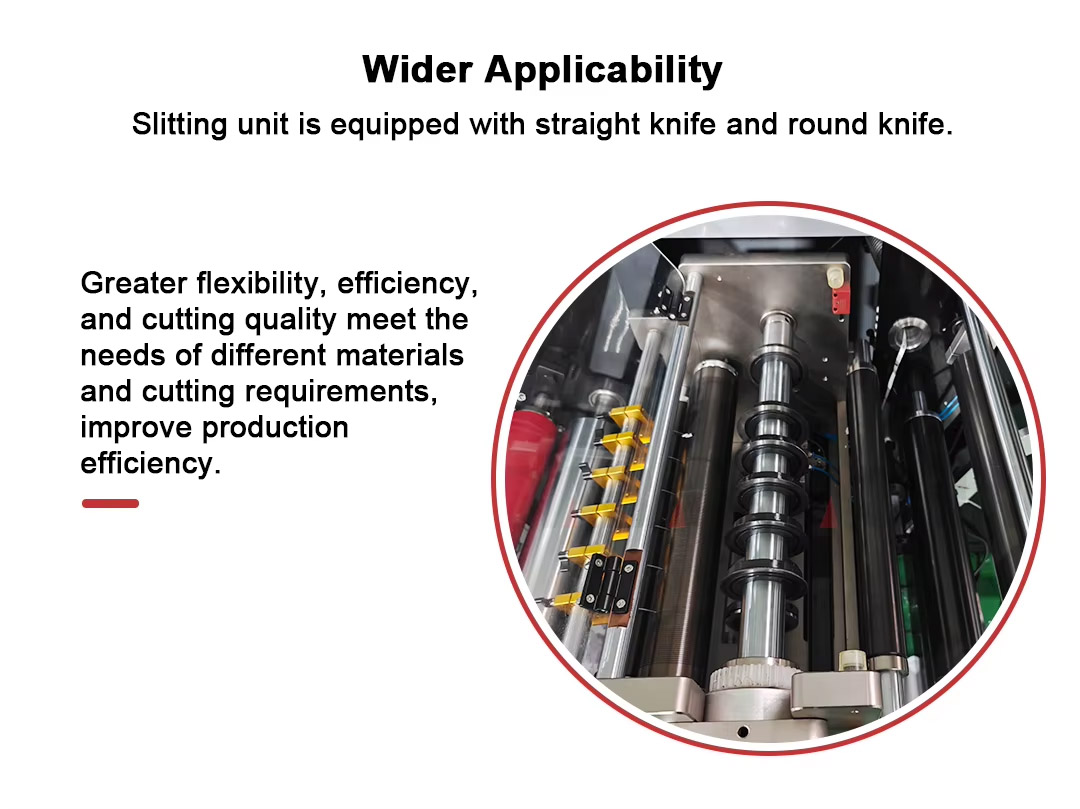

4. With our new development, semi automatic circular blade adjustment system, the slitting width can be set in the system, and the machine will adjust the width automatically.

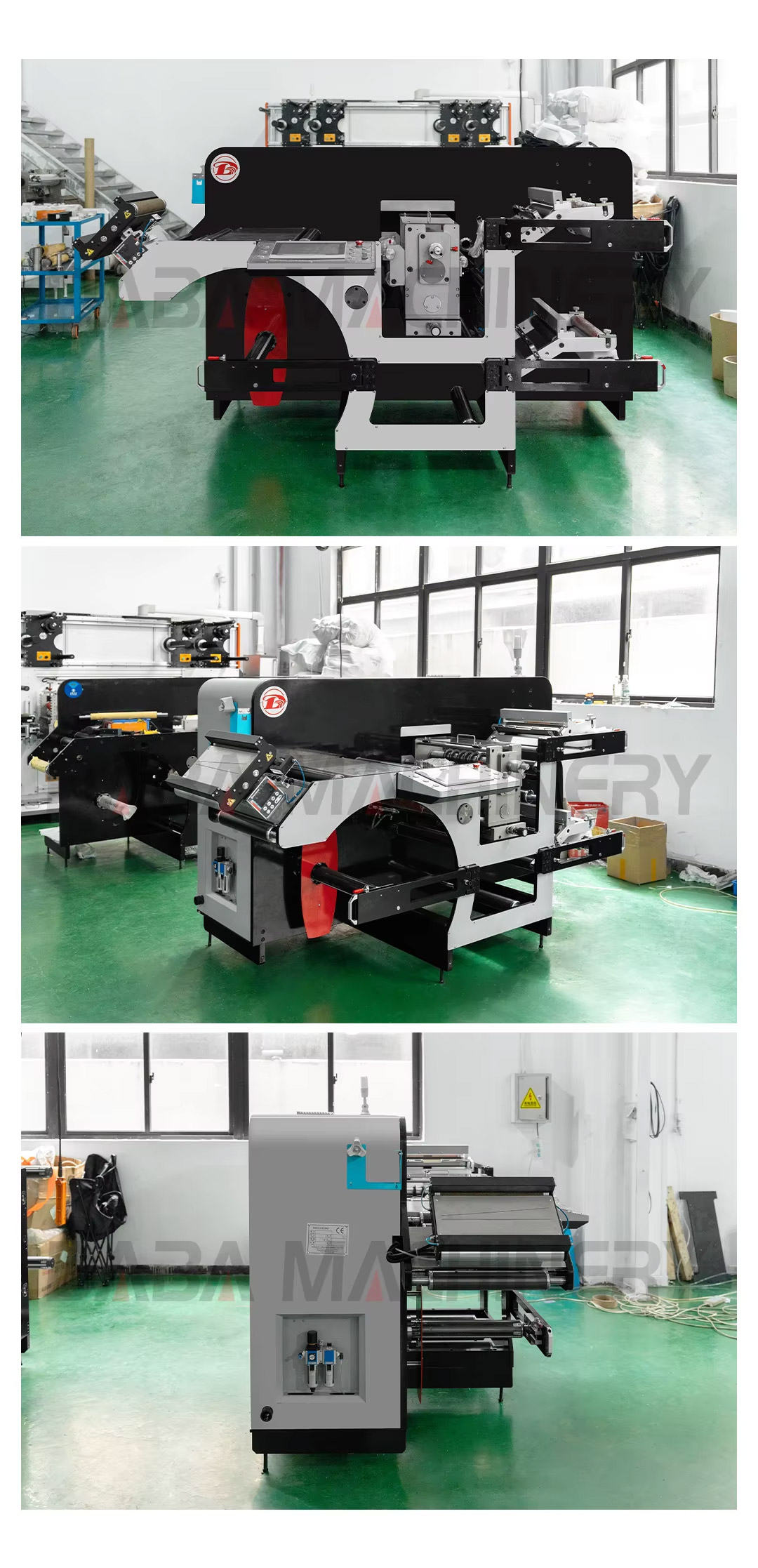

Factory Workshop
