Brand Name : DABA
Model Number : DBGFQ-470
Slitting Speed ：350m/min
Max. Slitting Width : 450mm
Max Web Width : 470 mm
Max Unwinding Diameter : 800 mm
Max Rewinding Diameter : 800 mm
Slitting Knife (Up/Down) : Each 6pcs (standard)
Dimension (L * W * H ) : 2200*1450*1350mm
Material: Adhesive Paer, PP, BOPP, Aluminum
weight : 1500 kg

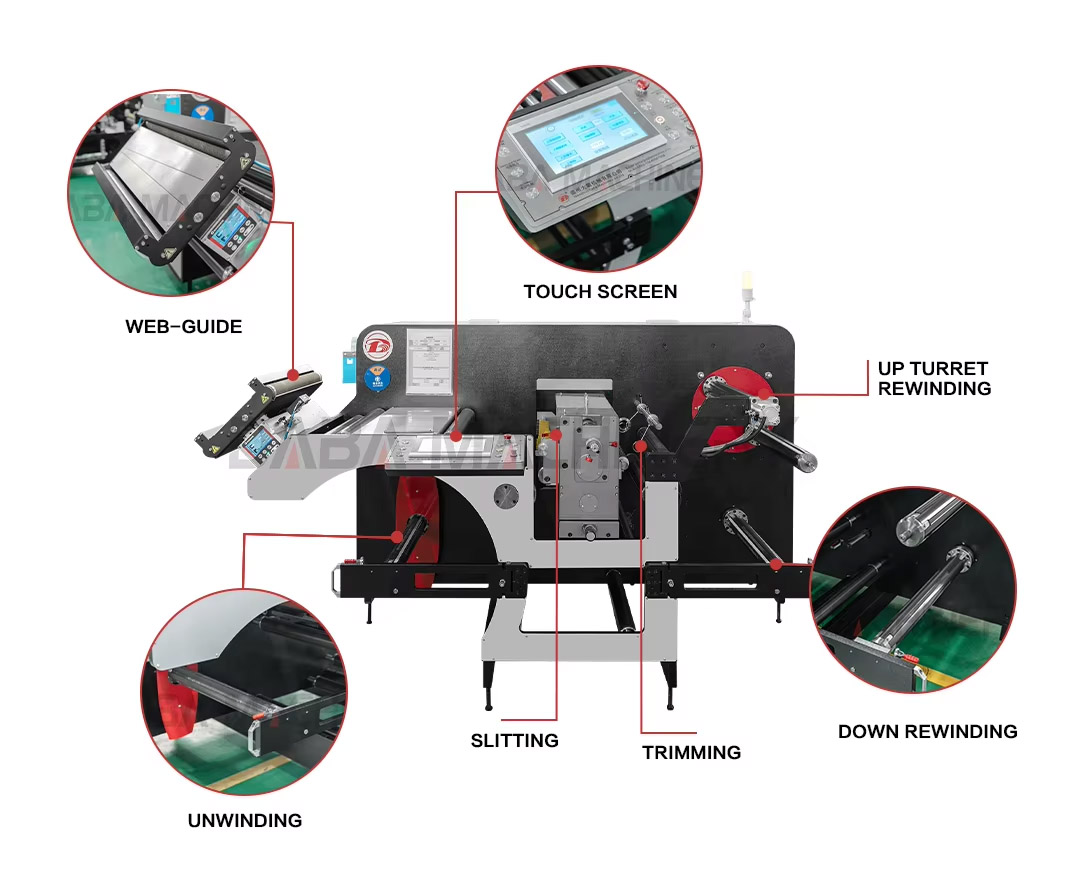

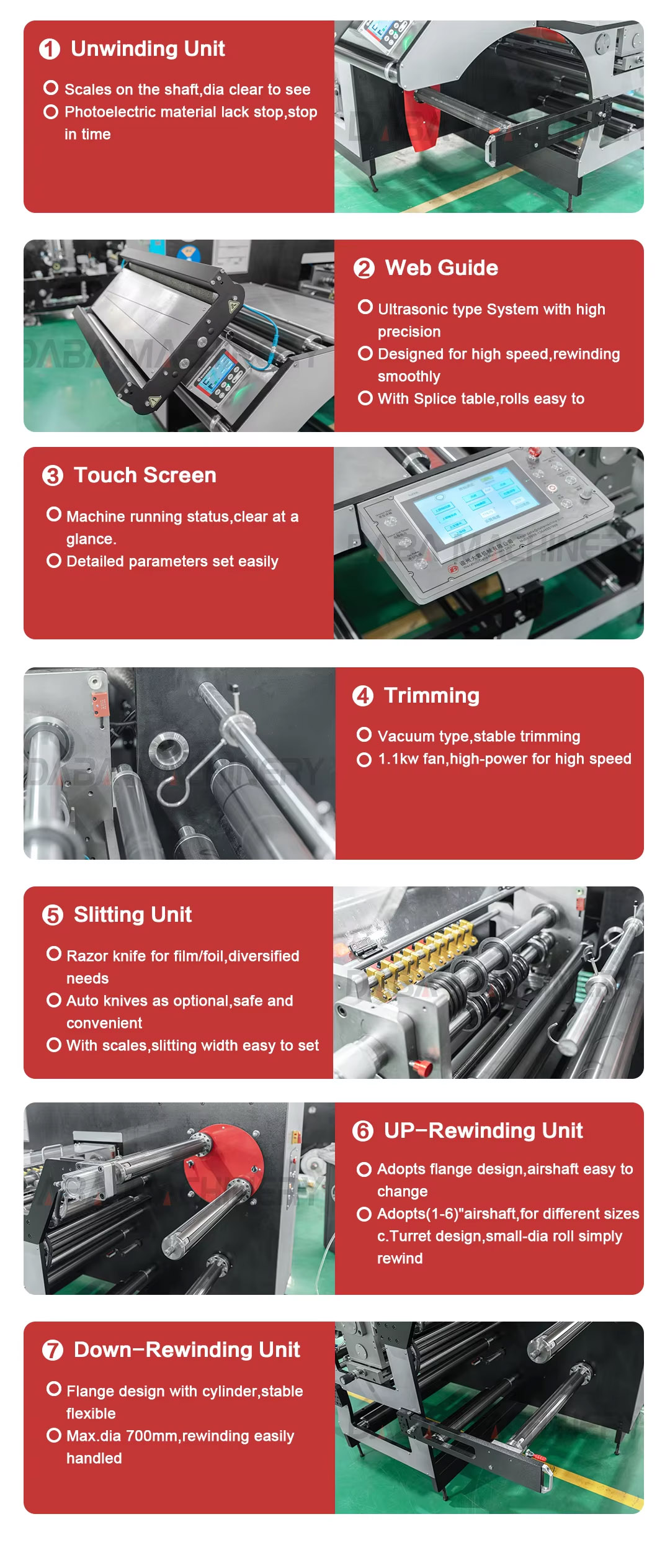

1. This machine is driven by servo motors, with a total of 6 servo controlled main workstations, which enables the machine to operate stably at high speeds and has a long service life.

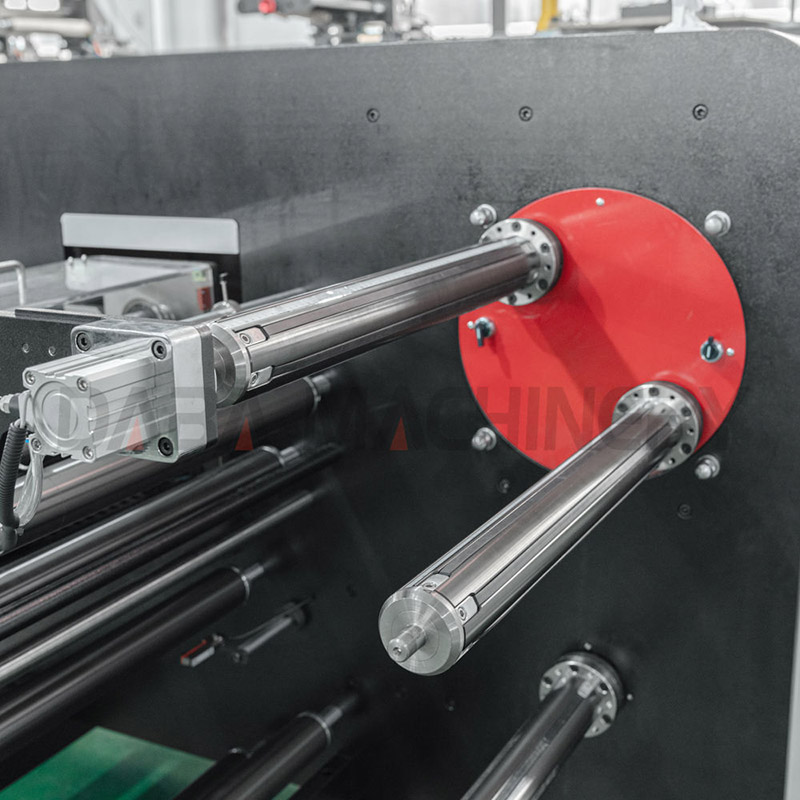

2. The tension control of unwinding unit and rewinding unit is adopt automatic tension control system; the control modes are tension feedback control and taper control.
3. This machine can slit various materials including paper, adhesive materials, films, aluminum foil and some special materials.

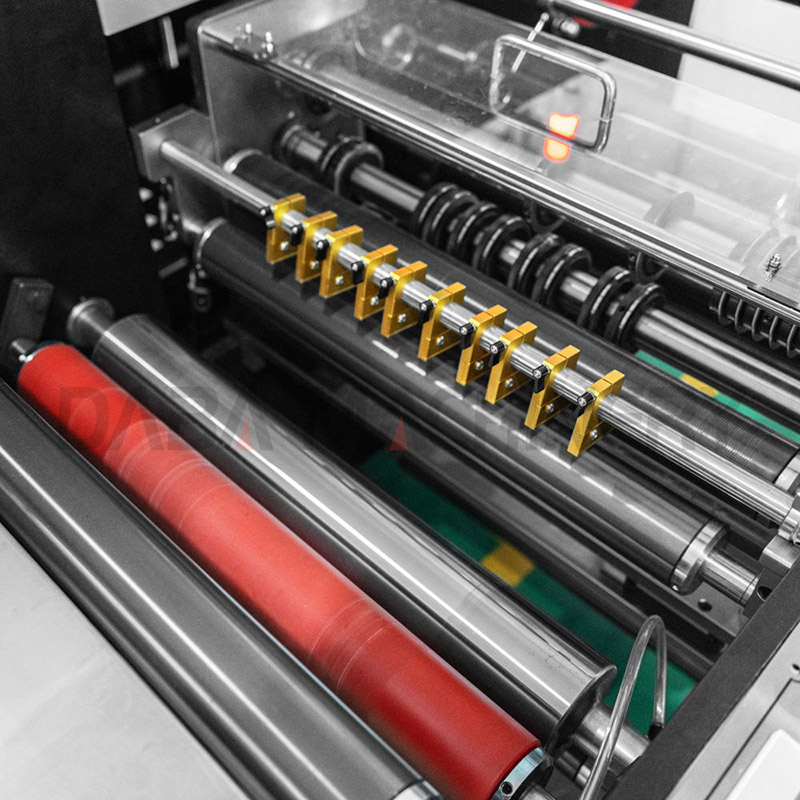

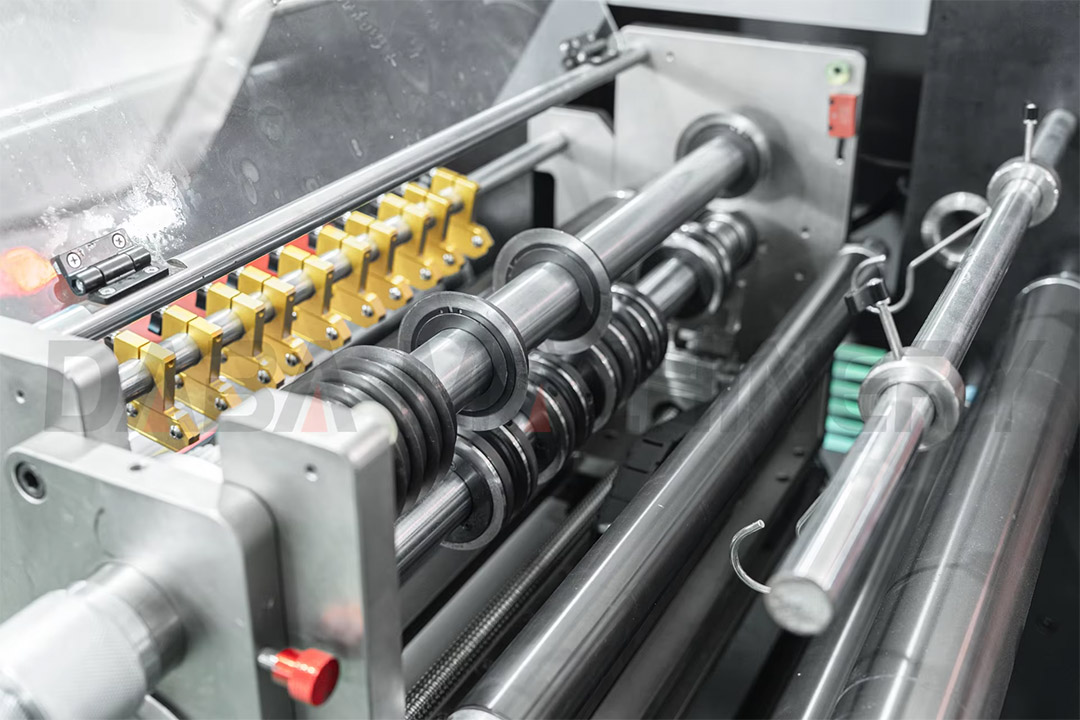

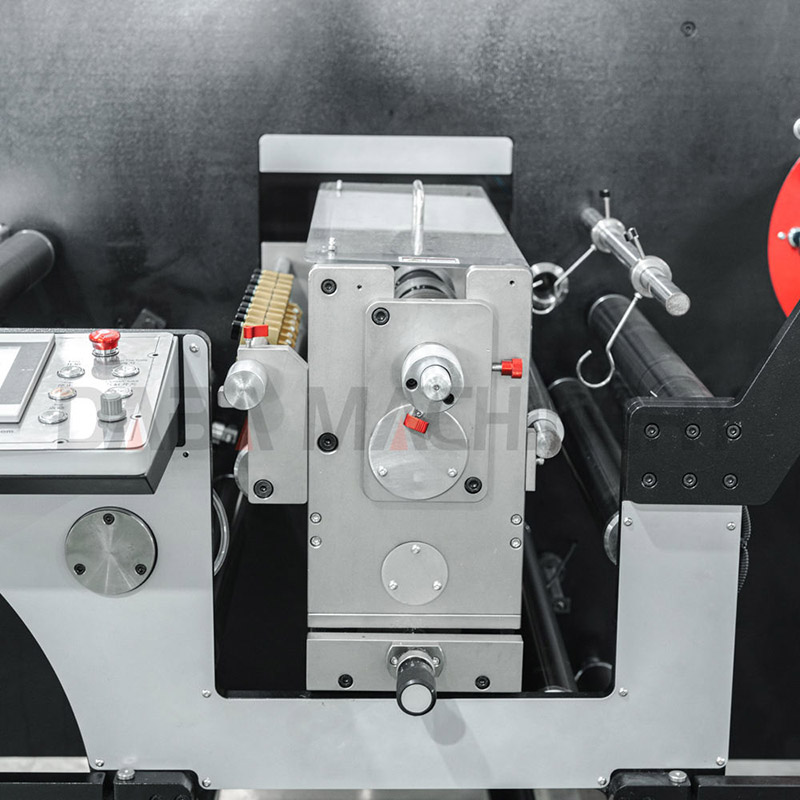

4. With our new development, semi automatic circular blade adjustment system, the slitting width can be set in the system, and the machine will adjust the width automatically.

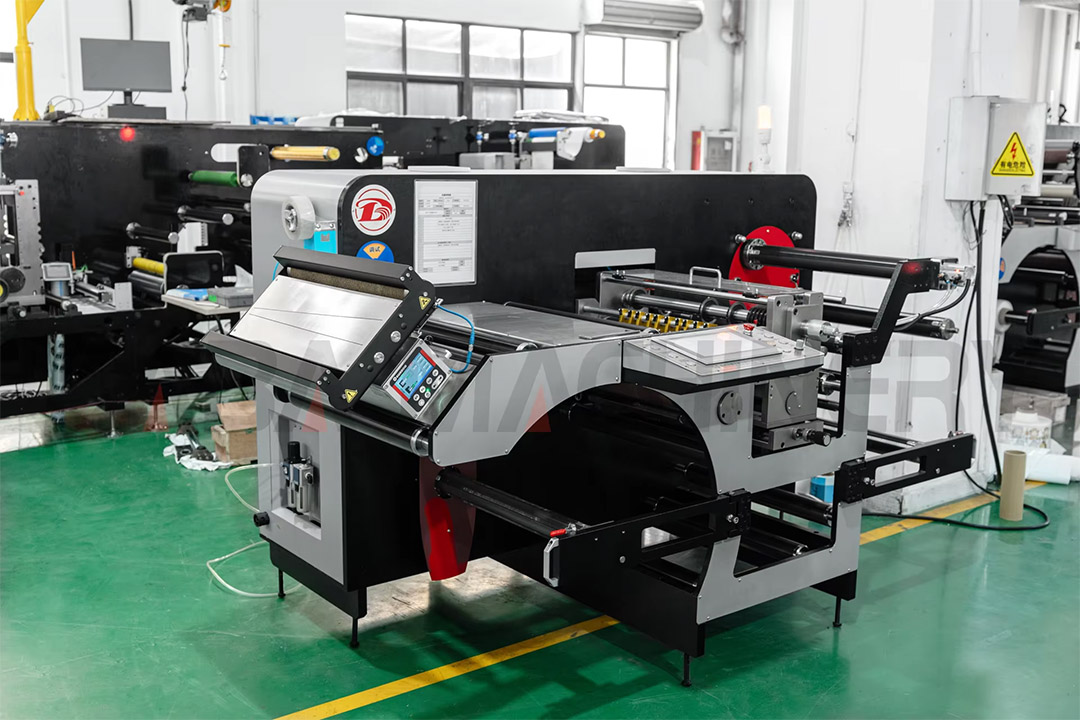

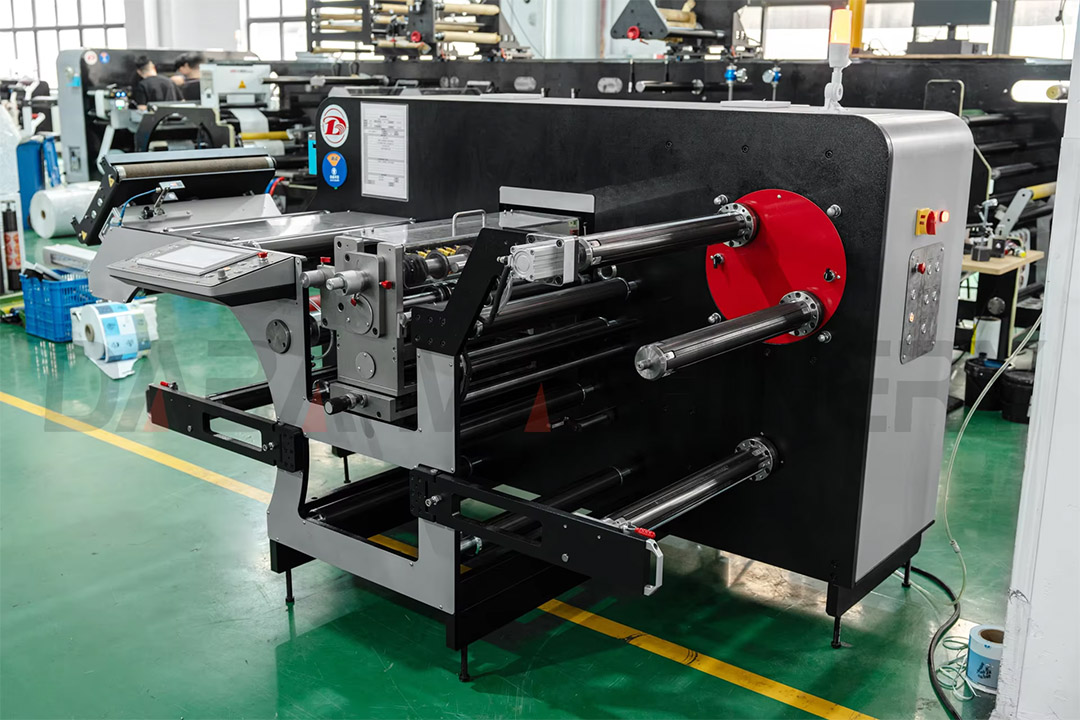

Factory Workshop
